Gure 7. securing the adapter card – Allied Telesis AT-2971T User Manual
Page 28
Chapter 2: Installing the Hardware
28
6. Secure the network adapter card to the chassis with a Phillips-head
screw (not provided) as shown in Figure 7.

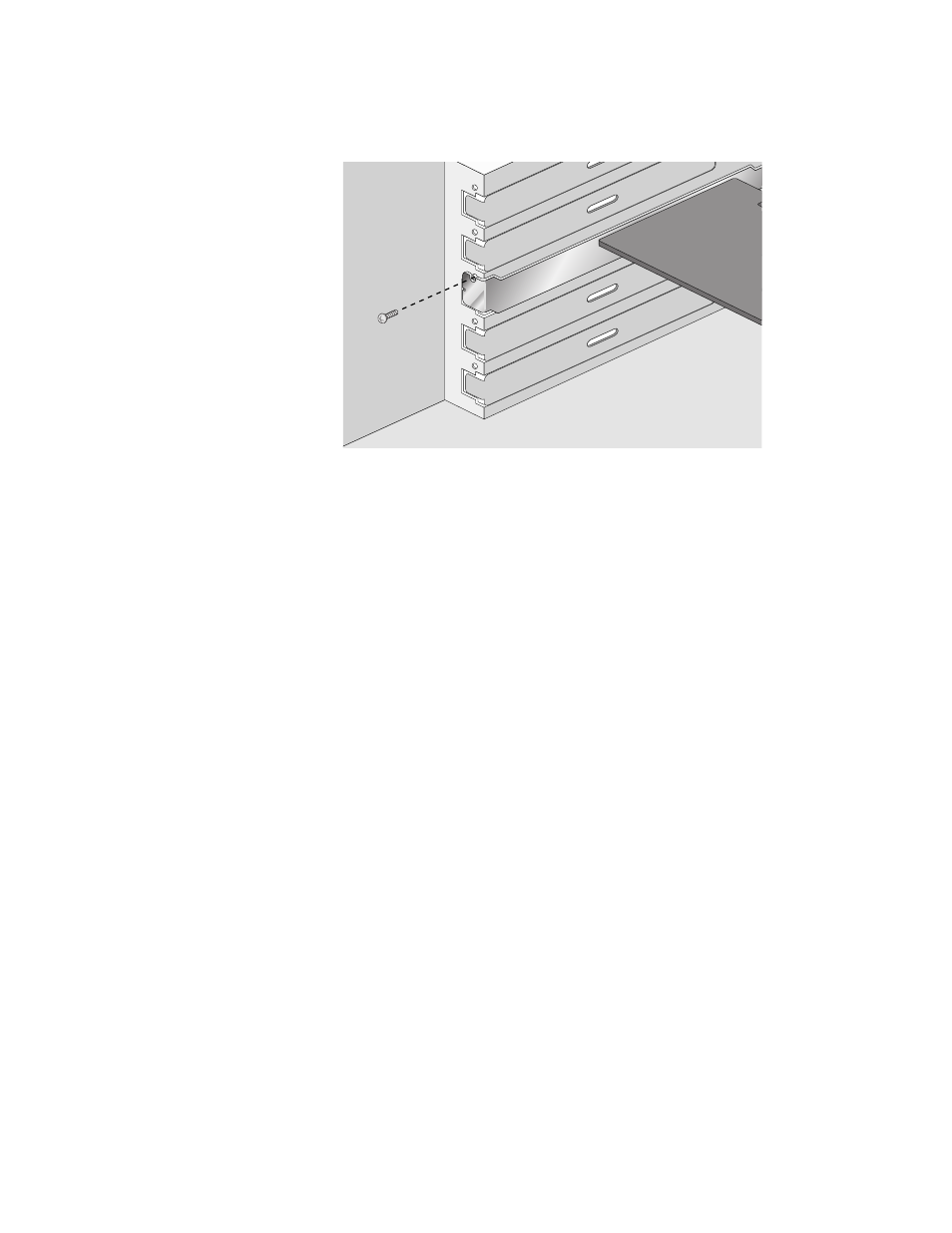

Figure 7. Securing the Adapter Card
7. Replace the system’s cover and secure it with the screws removed in
8. Disconnect any personal antistatic devices.
9. Power the system on.
Once the system returns to proper operation, the adapter hardware is fully
installed. Next, connect the network cables. See “Connecting the Network
Cables” on page 29.
