Chapter 1: Introduction to the AT-29xx Series Gigabit Ethernet Network Adapters
16
LEDs
Each adapter has a set of LEDs as shown in the following illustrations and
tables:
AT-2916T
The AT-2916T Gigabit Ethernet adapter has one copper port and five
LEDs, as shown in Figure 1 and described in Table 1.

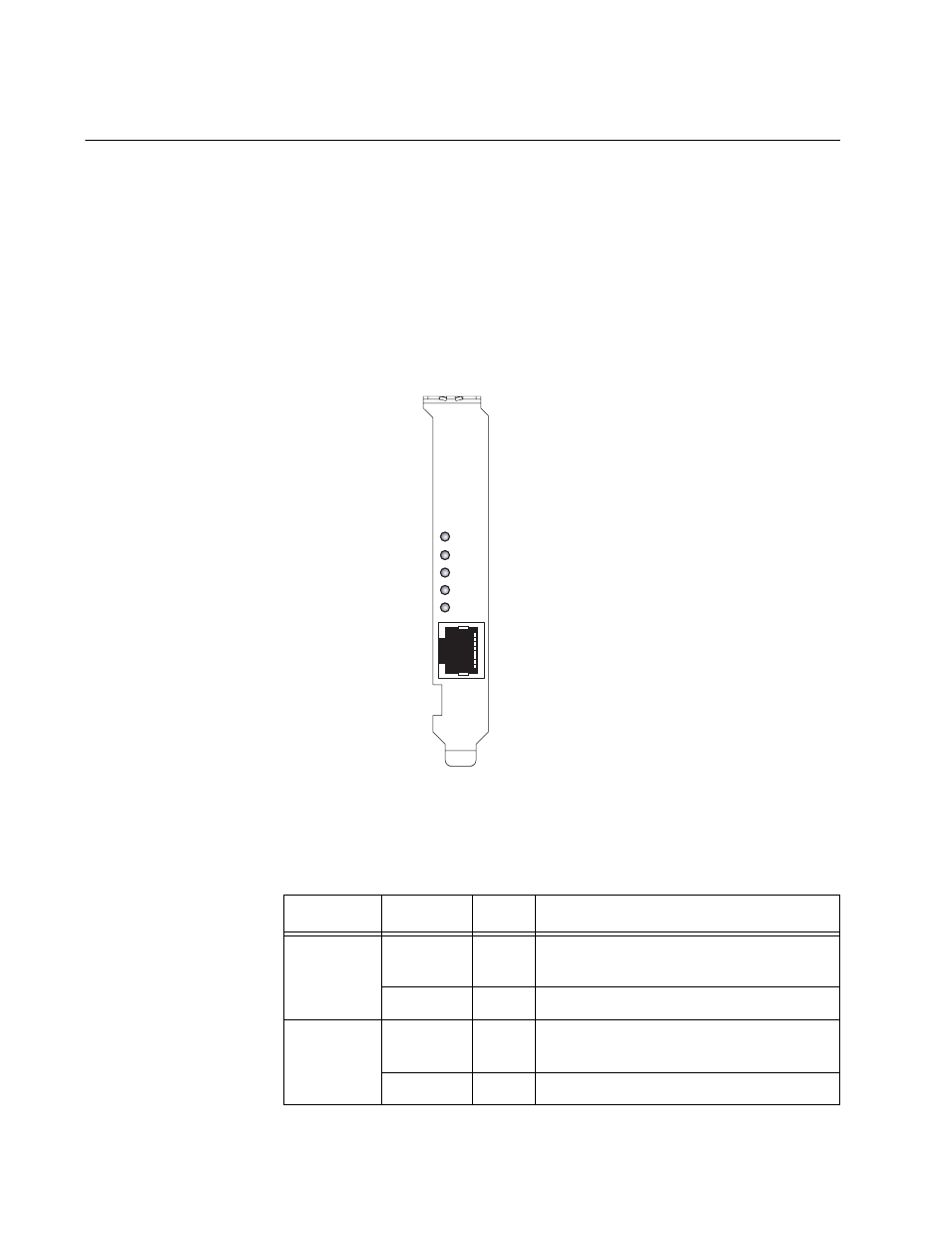

Figure 1. AT-2916T Gigabit Ethernet Adapter
\
Table 1. AT-2916T LEDs
LED
Color
State
Description
FULL
DUPLEX
Green
On
Full-duplex.
Off
Half-duplex
10
Green
On
A valid link has been established at
10 Mbps.
Off
No valid link at 10 Mbps.
1250
100
10
1000
ACT
L
I
N
K
FULL
DUPLEX
