AT-10408XP 10-Gigabit Ethernet Switch Installation Guide
19
LEDs
The AT-10408XP 10-Gigabit Ethernet Switch has four groups of LEDs, as
defined in the following sections:
ˆ “XFP Port LED,” next
ˆ “10/100/1000Base-T Port LED” on page 19
ˆ “SD Card Slot LED” on page 20
ˆ “Status LEDs” on page 21
XFP Port LED
Each XFP port has one LED as shown in Figure 3 and described in
Table 1.

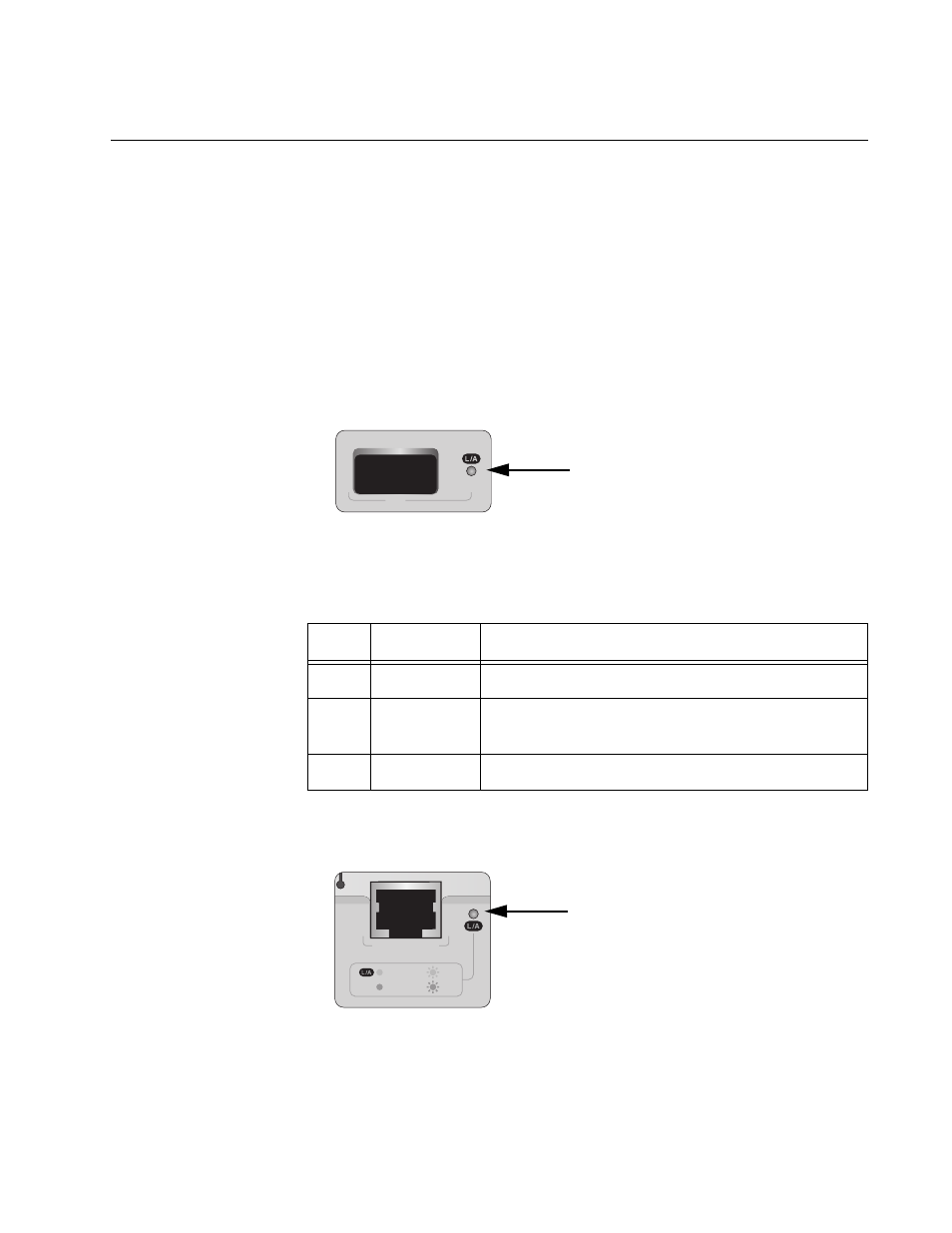

Figure 3. XFP Port LED
10/100/1000Base-T
Port LED
The 10/100/1000Base-T port has one LED as shown in Table 4 and
described in Table 2.
Figure 4. Management Port LED
Table 1. XFP Port LED
LED State Description
L/A Solid green A valid link has been established.
Blinking
green The port is transmitting or receiving data.
Off No link.
1206
1
XFP
LED
1207
10/100 LINK ACT
1000 LINK ACT
10/100/1000Base-T
LED
