AT-S63 Management Software Features Guide
Section VIII: Port Security 391

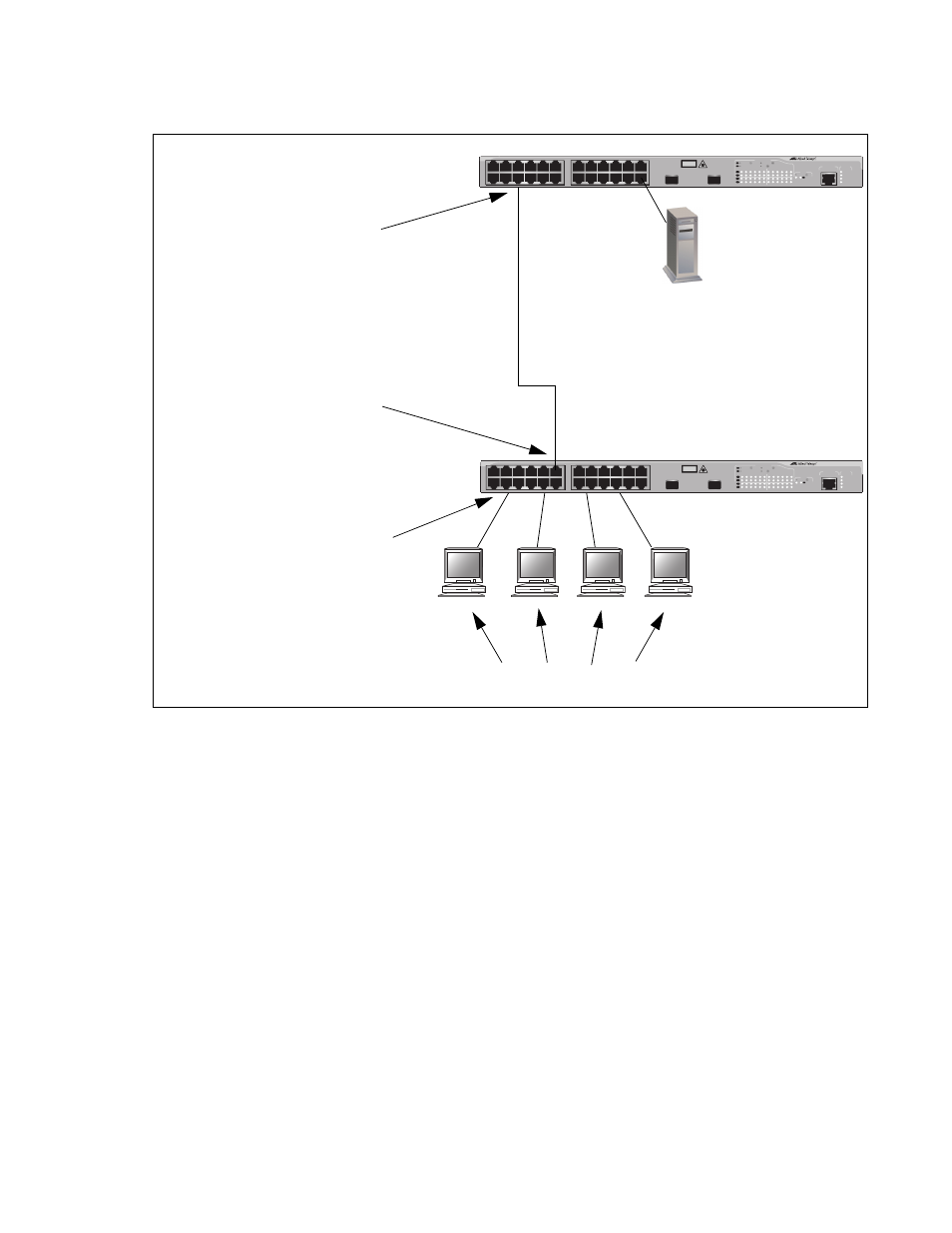

Figure 44. Single Operating Mode with Multiple Clients Using the Piggy-
back Feature - Example 3
Multiple
Operating Mode
The second type of operating mode for an authenticator port is the Multiple
mode. You use this mode when a port is supporting more than one client
and you want each client to log on individually before being permitted to
forward traffic through the port. An authenticator port in this mode can
support up to a maximum of 320 clients, with a total maximum of 480 per
switch. If you are using the 802.1x authentication method, you must
provide each client with a separate username and password combination
and the clients must provide their combinations to forward traffic through a
switch port.
Selecting the Multiple mode for an authenticator port disables the piggy-
back mode, because this operating mode does not permit piggy-backing.
AT-9400 Switch (A)
FAULT
RPS MASTER
POWER
CLASS 1 LASER PRODUCT STATUS TERMINAL PORT
1 3 5 7 9 11
2 4 6 8 10 12
13 15 17 19 21 23R
14 16 18 20 22 24R
AT-9424T/SP Gigabit Ethernet Switch
1 3 5 7 9 11 13 15 17 19 21 23R
2 4 6 8 10 12 14 16 18 20 22 24R
23 24
L/A D/C
D/C
L/A
D/C L/A 1000 LINK / ACT HDX / COL FDX 10/100 LINK / ACT PORT ACTIVITY
L/A 1000 LINK / ACT SFP SFP
24
SFP
23
RADIUS
Authentication
Server
Port 6:
Role: None
or
Role: Authenticator
Operating Mode: Single
Piggy-back Mode: Enabled
Port 11:
Role: None
or
Role: Supplicant
FAULT
RPS
MASTER
POWER
CLASS 1 LASER PRODUCT STATUS TERMINAL PORT
1 3 5 7 9 11
2 4 6 8 10 12
13 15 17 19 21 23R
14 16 18 20 22 24R
AT-9424T/SP Gigabit Ethernet Switch
1 3 5 7 9 11 13 15 17 19 21 23R
2 4 6 8 10 12 14 16 18 20 22 24R
23 24
L/A
D/C
D/C L/A
D/C
L/A 1000 LINK / ACT HDX / COL FDX 10/100 LINK / ACT PORT ACTIVITY
L/A 1000 LINK / ACT SFP SFP
24
SFP
23
Authenticated
Clients
AT-9400 Switch (B)
Client Ports:
Role: Authenticator
Operating Mode: Single
Piggy-back Mode: Disabled
