AT-FS705L Fast Ethernet Switch Installation Guide

29

7. Align the switch horizontally. And then position and hang the switch

onto the wall using the two keyhole slots located in the bottom of the
switch, as illustrated in Figure 5.

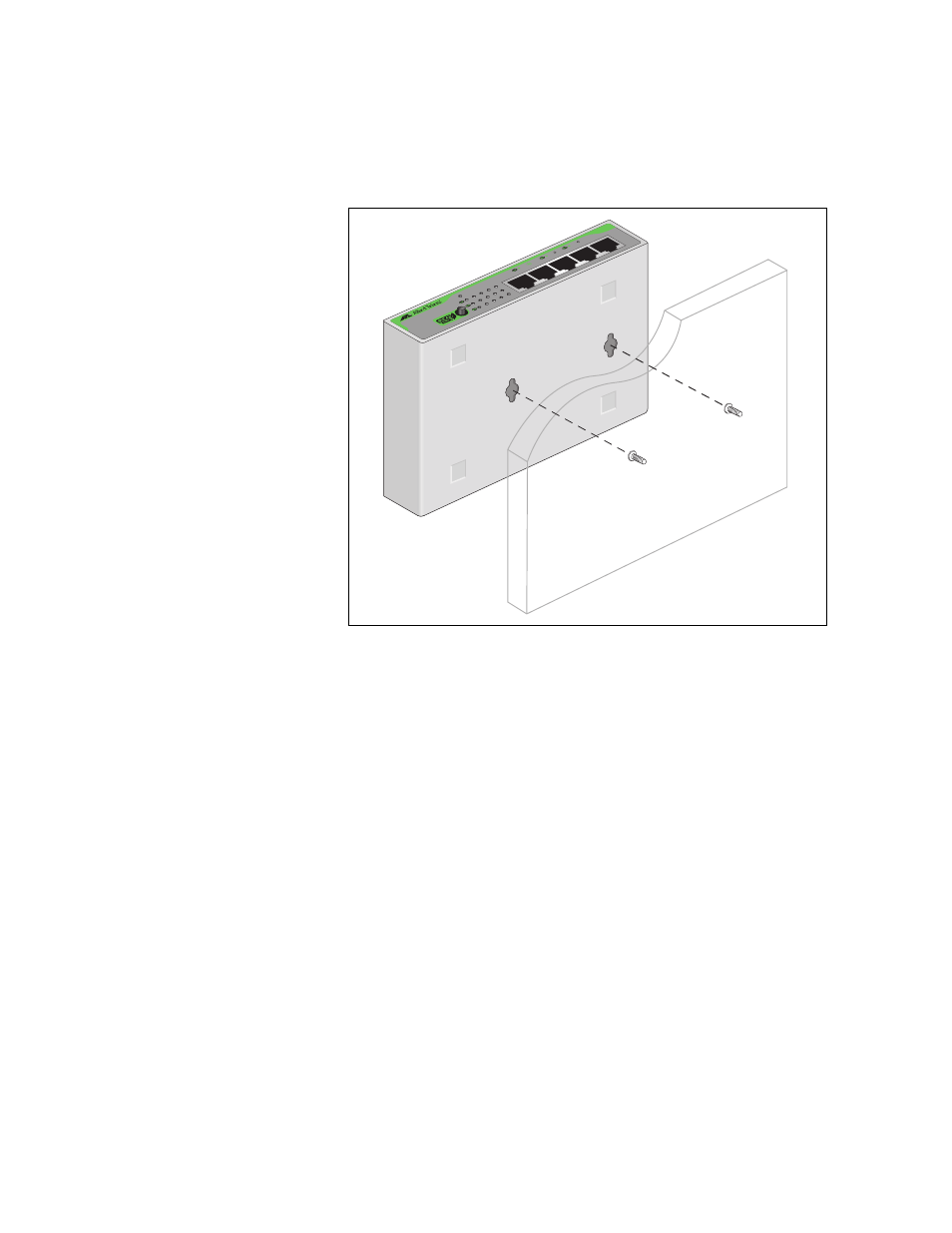

Figure 5. Wall Mounting an AT-FS705L Switch

8. Make sure that the switch is securely mounted onto the wall.

9. Proceed to “Cabling the Switch” on page 30 for the cable installation.
