4. Align the keyholes on the back with the screw heads, as shown
in Figure 6.

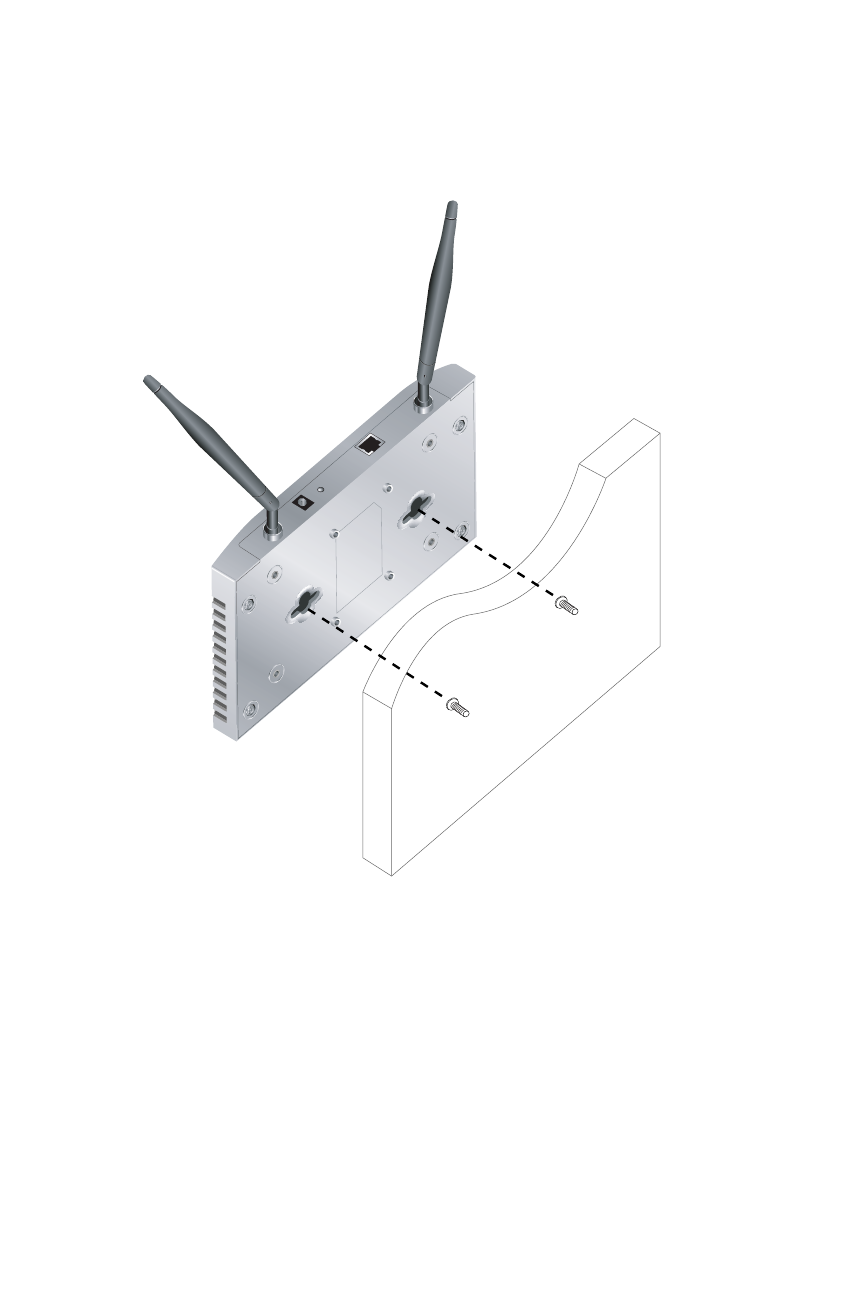

Figure 6. Aligning the Access Point for Mounting on the Wall
5. Place the keyhole slots on the bottom of the access point over
the screw heads.
6. Slide the access point down onto the screw heads so that the
access point is securely mounted on the wall.
You can install the access point either horizontally or vertically.
307
