JAO; Reviewed:
SPOC 11/3/2011

Solution & Interoperability Test Lab Application Notes

14 of 29

Algo-8028-SM

6.3.2. Communication Manager

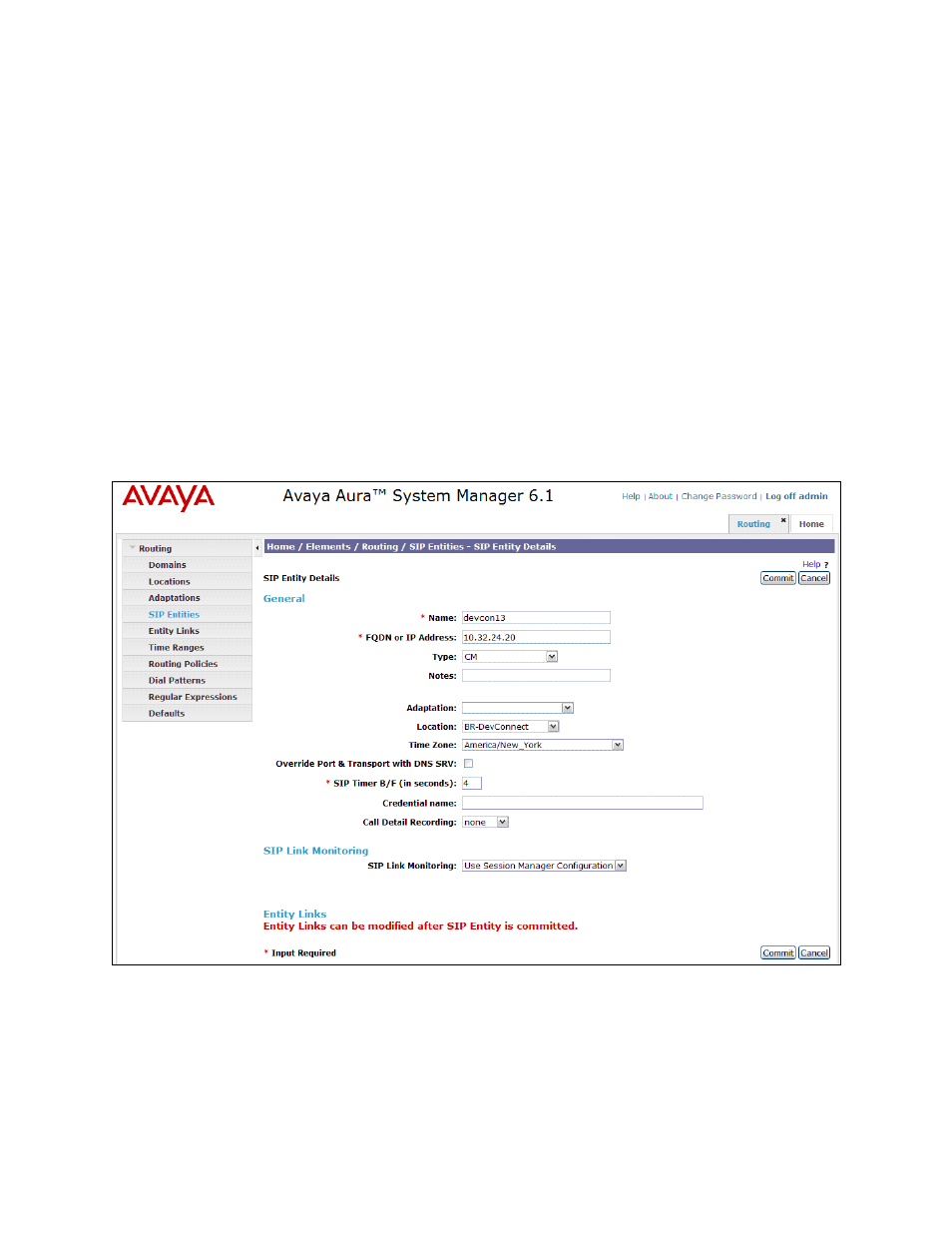

A SIP Entity must be added for the Communication Manager. To add a SIP Entity, select SIP
Entities on the left and click on the New button (not shown) on the right. The following screen
is displayed. Fill in the following:

Under General:



Name:

A descriptive name.



FQDN or IP Address:

IP address of the signaling interface (e.g., C-LAN board)

on the telephony system.



Type:

Select CM.



Location:

Select the location defined previously.



Time Zone:

Time zone for this location.

Defaults may be used for the remaining fields. Click Commit to save the SIP Entity definition.
