Algo-8028-SM
6.2. Add Locations
Locations can be used to identify logical and/or physical locations where SIP Entities reside for
purposes of bandwidth management. To add a location, select Locations on the left and click on
the New button (not shown) on the right. The following screen will then be shown. Fill in the
following:
Under General:
 Name: A descriptive name.
 Notes: Descriptive text (optional).
Under Location Pattern:
 IP Address Pattern: A pattern used to logically identify the location.
 Notes: Descriptive text (optional).

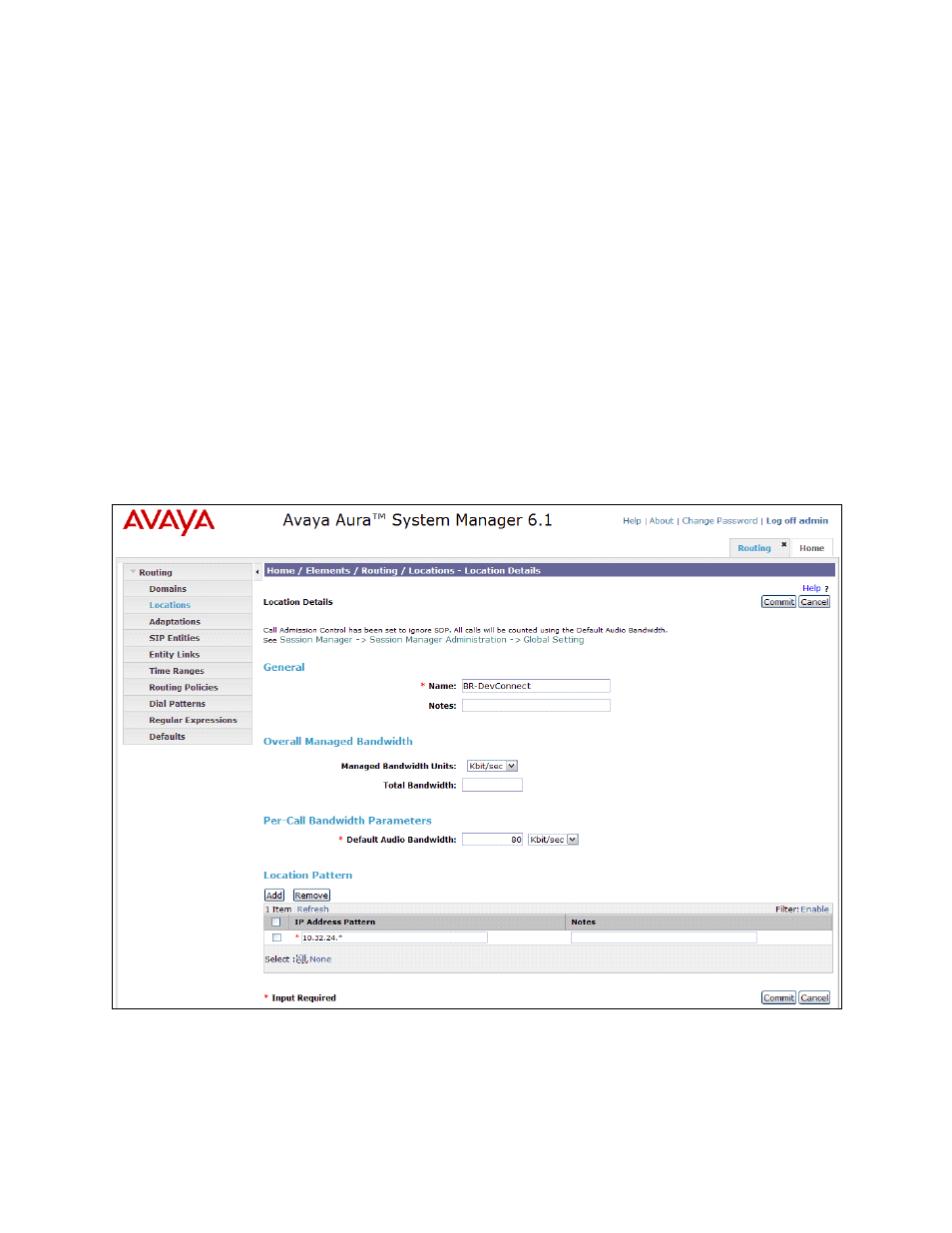

The screen below shows addition of the BR-DevConnect location, which includes the
Communication Manager and Session Manager. Click Commit to save the Location definition.
