English

15

|

03

Connections

This section describes various methods of connecting the product to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

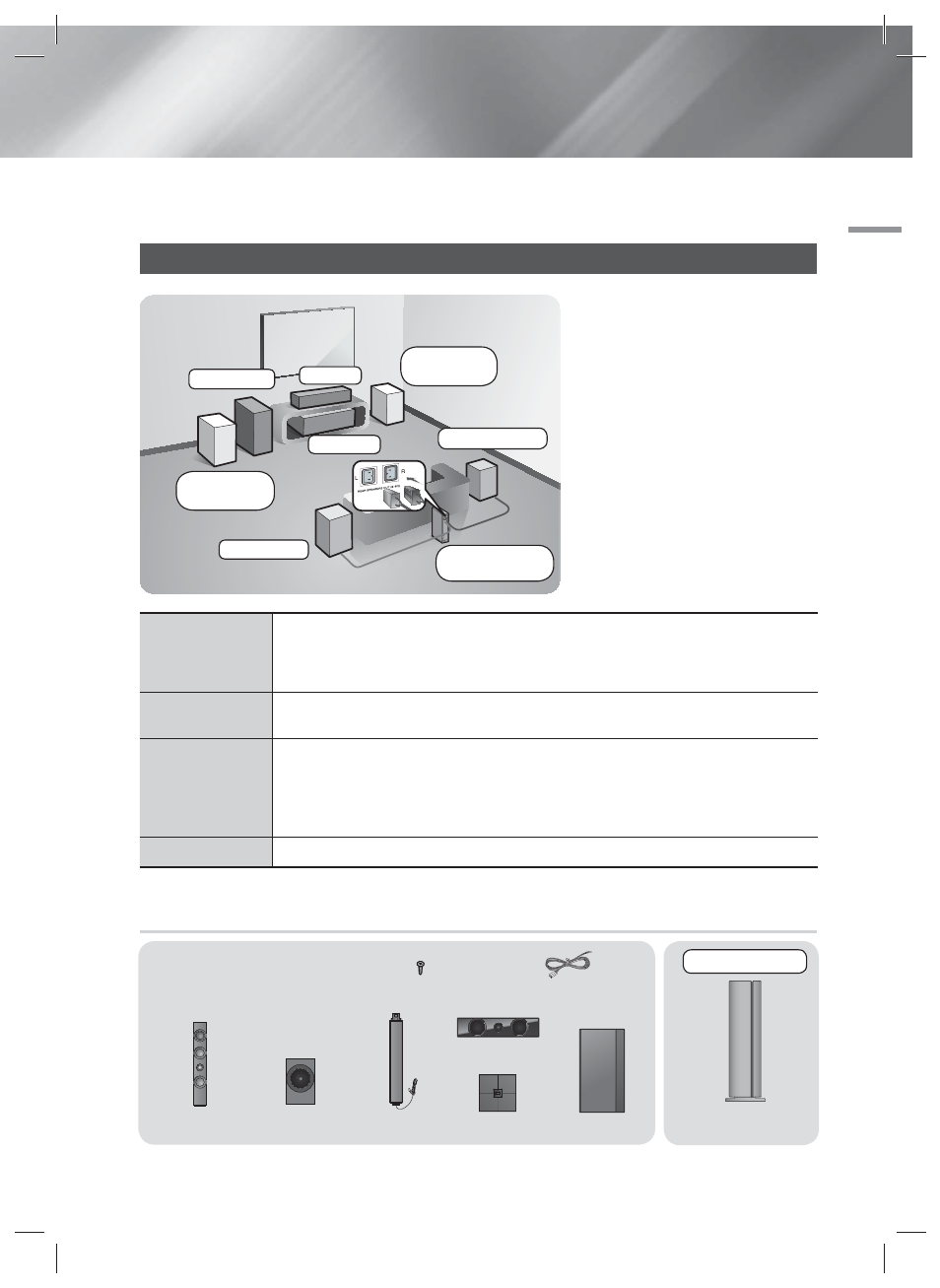

Connecting the Speakers

Surround (L)

Surround (R)

Product

Center

Subwoofer

Wireless

Receiver Module

Front/

Front Top (L)

Front/

Front Top (R)

Position of the product

Place it on a stand or cabinet shelf, or

under the TV stand.

Selecting the Listening Position

The listening position should be located

about 2.5 to 3 times the TV's screen

size away from the TV. For example, if

you have a 46 inch screen, locate the

listening position 115 to 138 inches (9.6

to 11.5 feet) from the screen.

Front/Front Top

Speakers

Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
Place the front speakers so that their tweeters will be at the same height as your ear. Align
the front face of the front/front top speakers with the front face of the center speaker or place
them slightly in front of the center speakers.

Center Speaker

It is best to install the Center Speaker at the same height as the front/front top speakers. You
can also install it directly over or under the TV.

Surround

Speakers

Place these speakers to the side of your listening position. If there isn't enough room, place
these speakers so they face each other. Position them about 2 to 3 feet (60 to 90cm) above
your ear, facing slightly downward.

* Unlike the front and center speakers, the surround speakers are used mainly for sound

effects. Sound will not come from them all the time.

Subwoofer

The position of the subwoofer is not so critical. Place it anywhere you like.

* Surround speakers must be connected to the wireless receiver module.

Speaker Components

SWA-6000

Wireless Receiver

Module

Subwoofer

Speaker Cable x 4

Surround x 2

Front/Front Top x 2

Center

Screw (5x20) x 8

Stand x 2

Stand Base x 2
