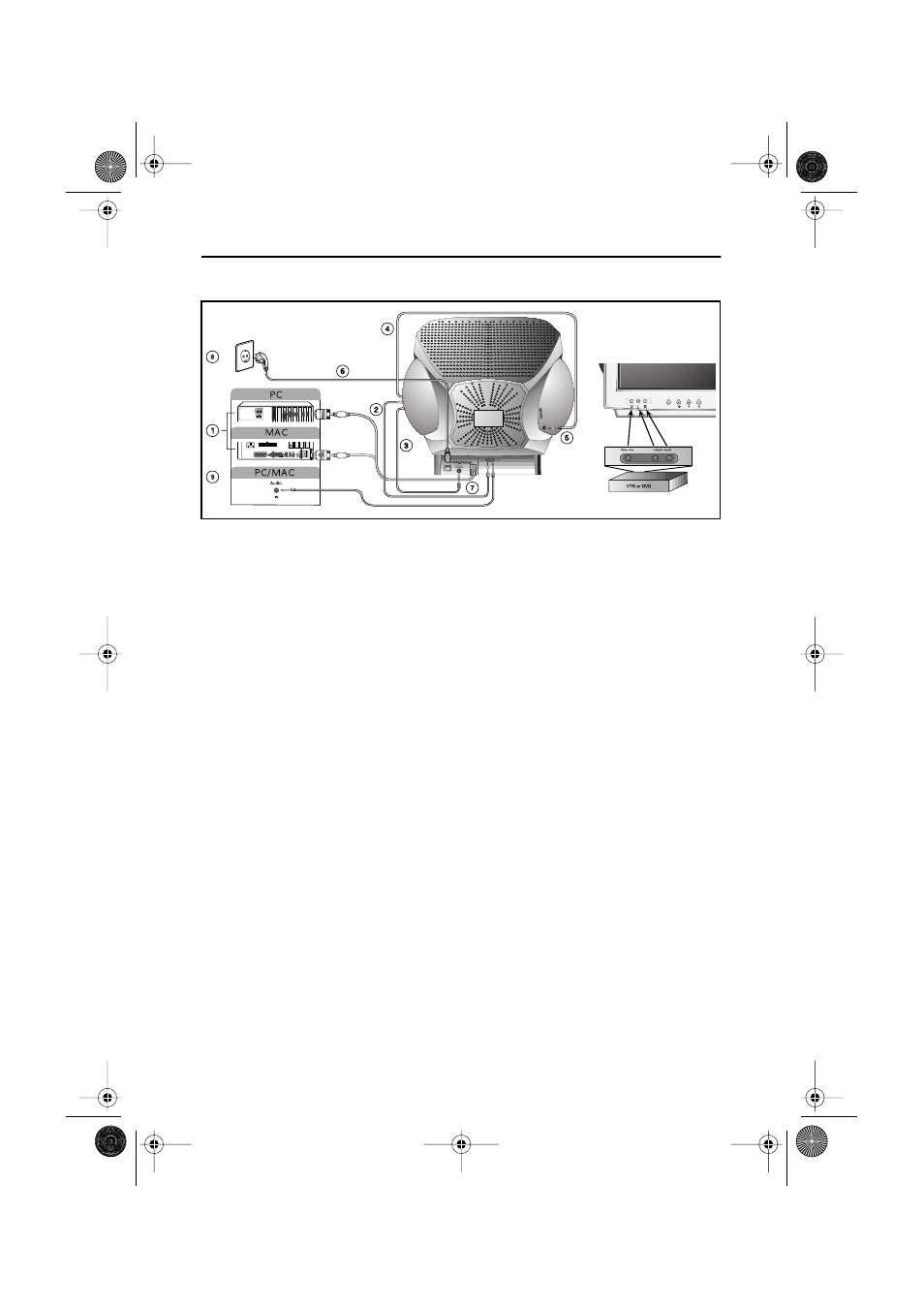

Connecting Your Monitor & Speakers
Caution : Turn the power off to the monitor, computer and speakers before connecting or
disconnecting the speakers.
1 Signal cable
Connect the end of the signal cable to
your computer’s video port. If you are
using a Macintosh computer, connect
the cable to a Macintosh adapter, and
set the pins on your adapter (adapter
not included). A PC-compatible
computer does not need an adapter.
2 Stereo cable
Connect the stereo cable to the audio
out port on the back of your monitor.
3 DC input cable
Connect this cable to DC output port
on the back of your monitor.
4 Left output cable
Connect this cable to L- input port on
the back of the left side speaker.
5 L-input port
Connect the left output cable from
right speaker here.
6 Power port
Connect the power cord for your
monitor to the power port on the back
of the monitor.
7 DC output port
Connect DC input cable here.
8 Power cords
Plug the power cord for the monitor
and the power cord for your computer
into a nearby outlet.
9
Stereo- Stereo cable
Connect the stereo-stereo cable to
the sound card on the your computer.
10 Turn on your computer and monitor.
If your monitor displays an image,
installation is complete.
11 Install the monitor driver
·
Ins ert the provided diskette into the
A drive.
· Double click the “install.exe” file.
