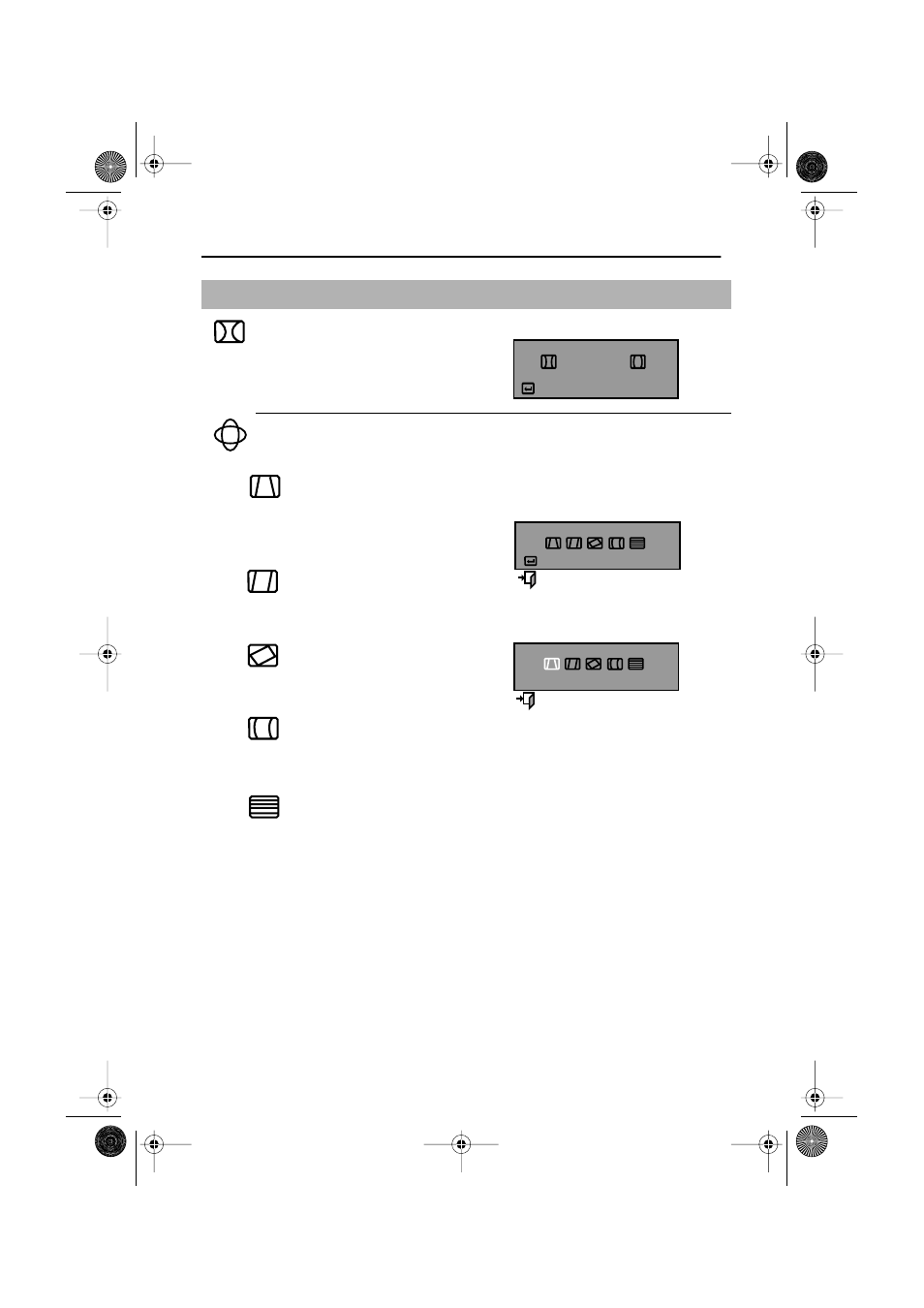

Operation
Icon Monitor Function Control
Pincushion
Straightens screen vertical edges.
– Curves image inward
+ Curves image outward
Geometry
Trapezoid
Width of top and bottom of screen.
– Widens bottom of screen
+ Widens top of screen
Parallelogram
– Skews screen image left
+ Skews screen image right
Rotation
– Rotates entire screen left
+ Rotates entire screen right
Pinbalance
– Curves vertical lines to left
+ Curves vertical lines to right
V-Linearity
– Compresses image at top of screen
+ Compresses image at bottom of screen
1.
2.
:
Pincushion
Access Function
:
:
Geometry
Access Function
Exit Menu
+ - :
:
Trapezoid
Select Function
Previous Menu
