- 102 -
F. MPIO and MC/S setup instructions
Here is the step by step to setup MPIO. There are 2 kinds of scenarios for MPIO.
Please see Figure F.1. IS16GL suggests using scenario 2 for better performance.

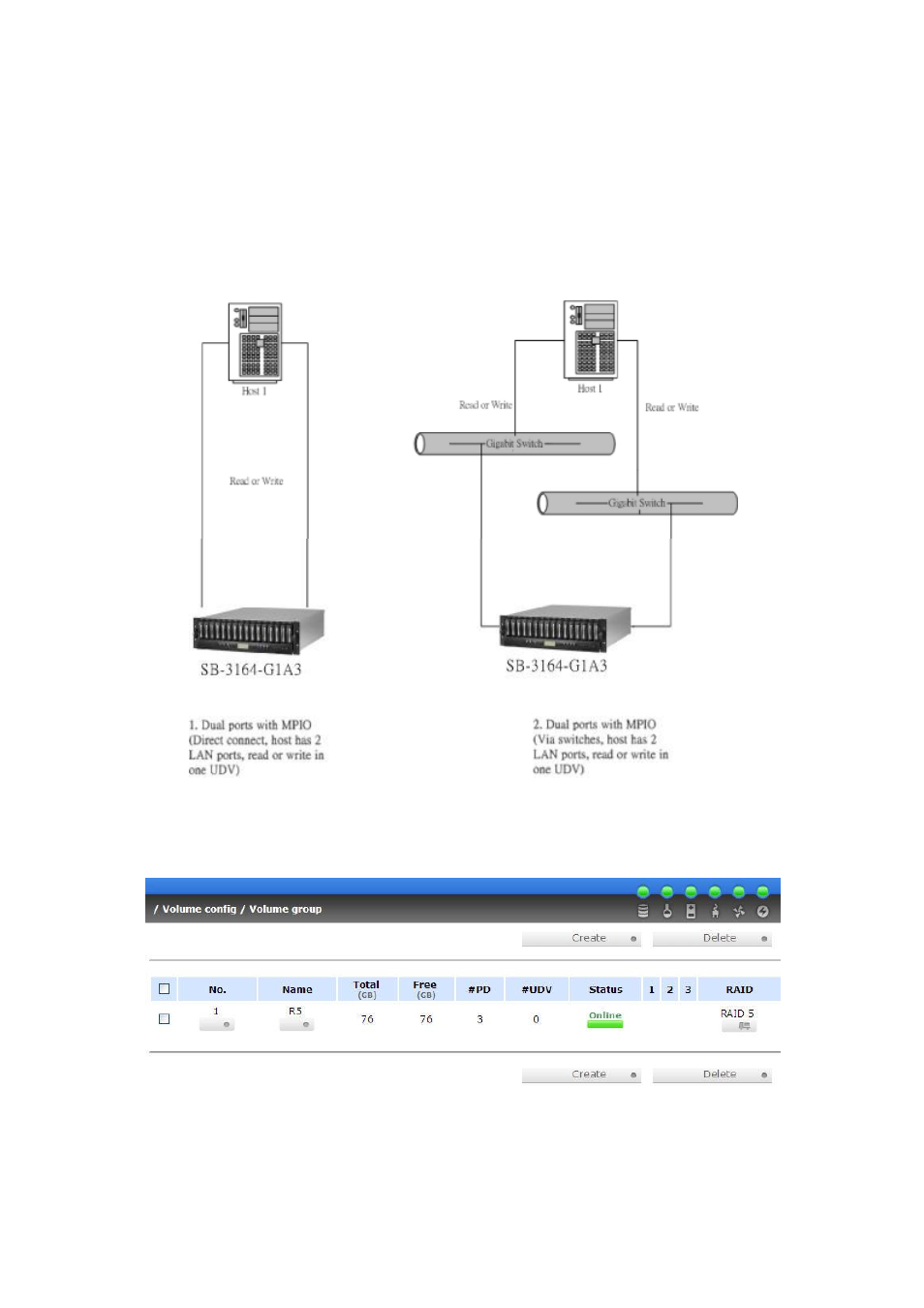

ž Network diagram of MPIO.
Figure F.1
The setup instructions are in the following figures.
ž Create a VG with RAID 5, using 3 HDDs.
Figure F.2
ž Create a UDV by using RAID 5 VG.
