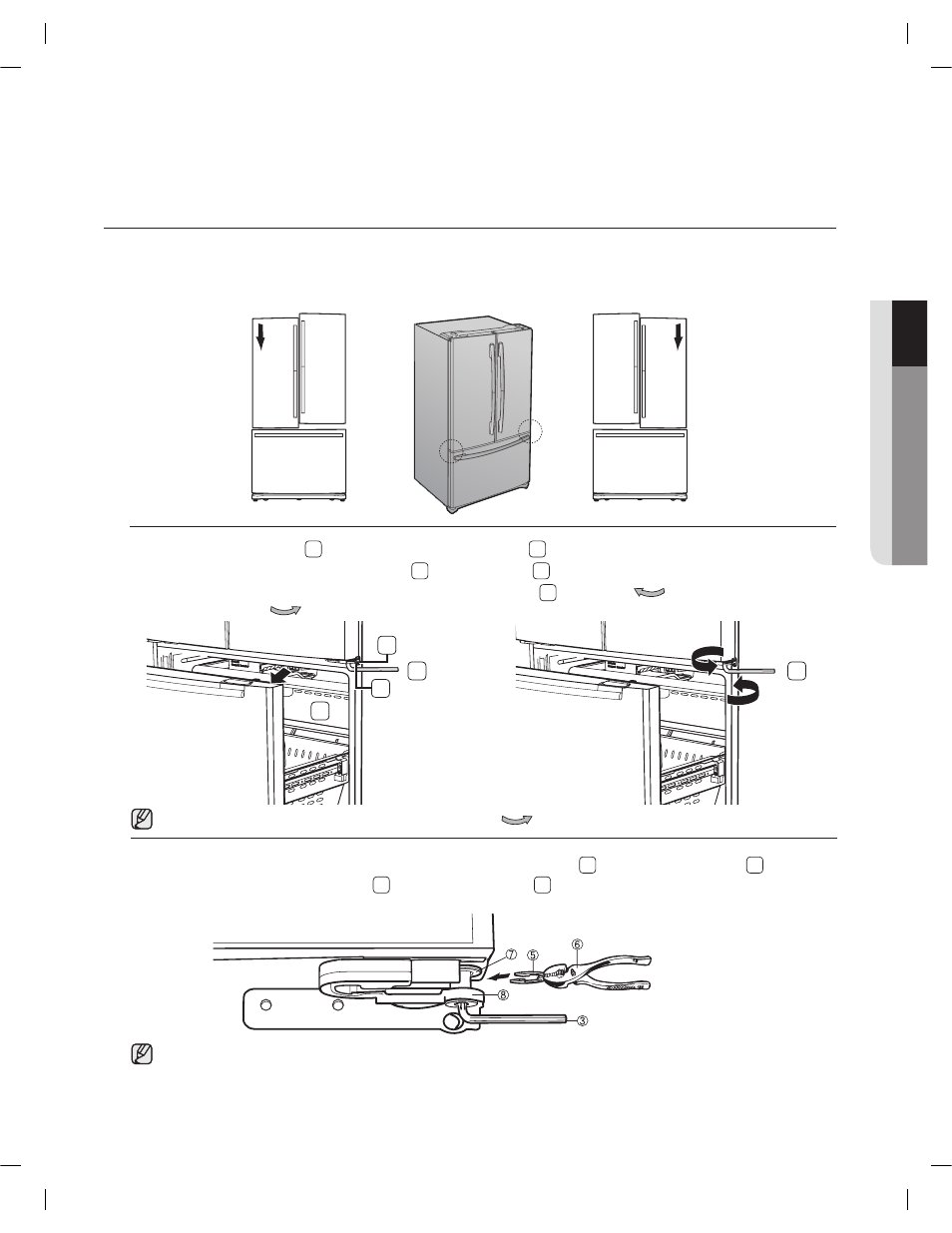

MAKING MINOR ADJUSTMENTS BETWEEN DOORS

Remember a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the
previous section on leveling the Refrigerator.

When the left

door is lower

than the right

door.

When the left
door is higher
than the right
door.

Adjustment

part

Adjustment
part

3

1

3

4

2

1. If you open the drawer (

1

), you can see the lower hinge (

2

).

2. Insert the supplied Allen Wrench(3/16”) (

3

) into the shaft (

4

) of the lower hinge.

3. Please adjust the height by turning the Allen Wrench(5mm) (

3

) clockwise(

) or

counter-clockwise(

).

when you turn the Allen Wrench(5mm) counter-clockwise(

), the door will move up.

1. After adjusting the doors, please insert the supplied fastener-ring (

5

) using a pair of pliers (

6

) in the

gap between the hinge-grommet (

7

) and the lower hinge(

8

). The number of fastener-rings you’ll need

to insert depends on the gap.

Two fastener-rings are enclosed with the refrigerator.
Thickness of each fastener-ring is 0.04 inch.

Setting Up_15
