six
3590 Guidelines

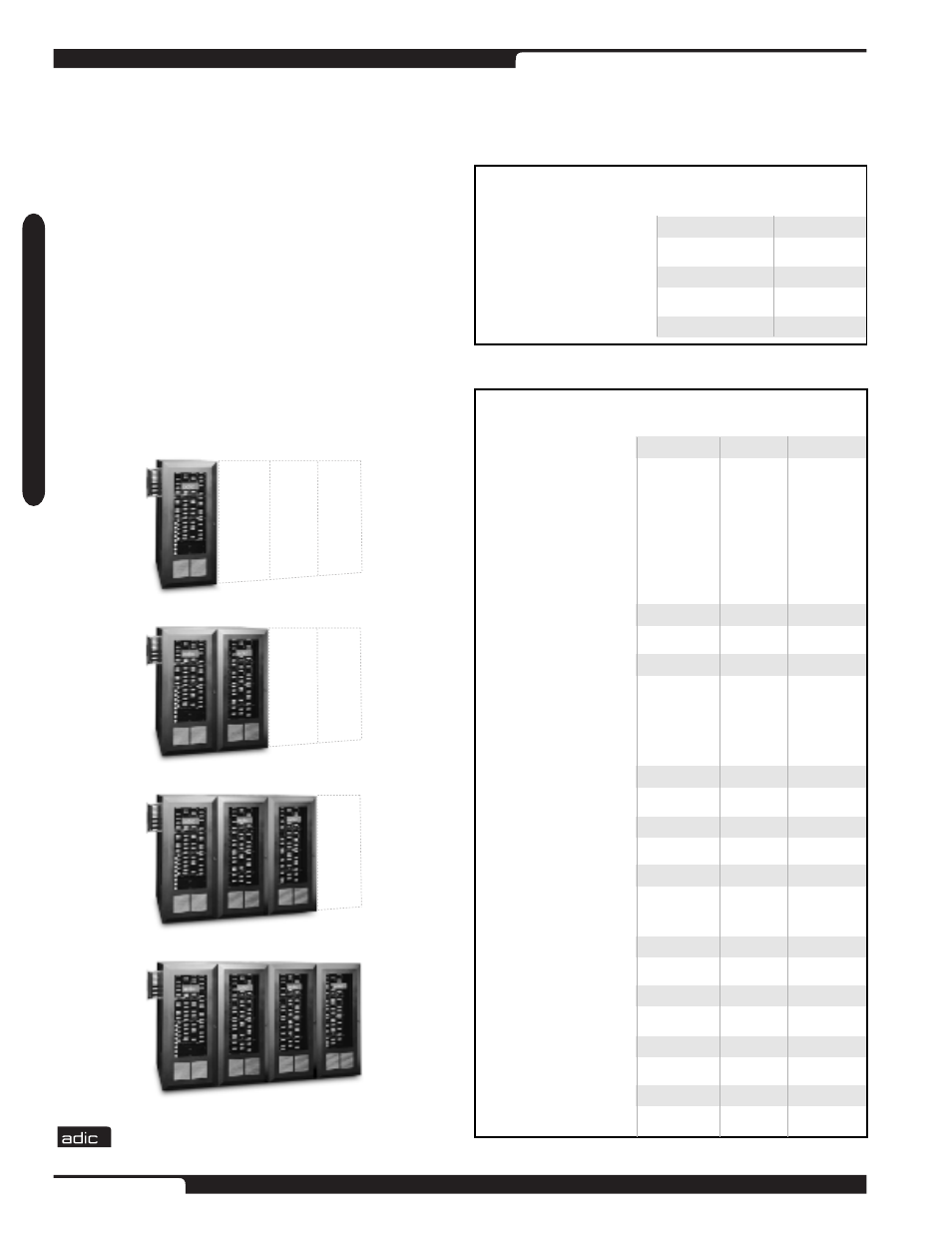

B UILDING B LOCKS OF A S CALAR 1000 / 3590 L IBRARY
The Scalar 1000 / 3590 control module, which can also
serve as a self-contained library, is configured with 2 or 4
3590 drive bays. Each expansion module is configured for
tape storage only (no drive bays), with 2 drive bays, or
with 4 drive bays.
Choice of drive bay configuration determines the tape
positions available in each module (see table). Drives to
populate drive bays are ordered separately and may be
easily added on-site. Configuration change is easy since
the drive bay and cartridge capacity of any module can be
easily reconfigured in the field. The Scalar 1000
automatically “reteaches” the library’s settings to reflect
new configurations.
Scalar 1000 / 3590
Drive Cartridge
Bays Capacity
Scalar 1000 / 3590
3590 Capacity Guidelines
Control Module 2 158
4 118
Expansion Module 0 210
2 170
4 130
Library Drive Cartridge Storage
Configuration Count Capacity Capacity 1
Control Module and 1 - 2 368 11.0TB
1 Expansion Module 3 - 4 328 9.8TB
5 - 6 288 8.6TB
7 - 8 248 7.4TB
Control Module and 1 - 2 578 17.3TB
2 Expansion Modules 3 - 4 538 16.1TB
5 - 6 498 14.9TB
7 - 8 458 13.7TB
9 - 10 418 12.5TB
11 - 12 378 11.3TB
Control Module and 1 - 2 788 23.6TB
3 Expansion Modules 3 - 4 748 22.4TB
5 - 6 708 21.2TB
7 - 8 668 20.0TB
9 - 10 628 18.8TB
11 - 12 588 17.6TB
13 - 14 548 16.4TB
15 - 16 508 15.2TB
1 with 3:1 compression per IBM guidelines.
Control Module 1 - 2 158 4.7TB
3 - 4 118 3.5TB
