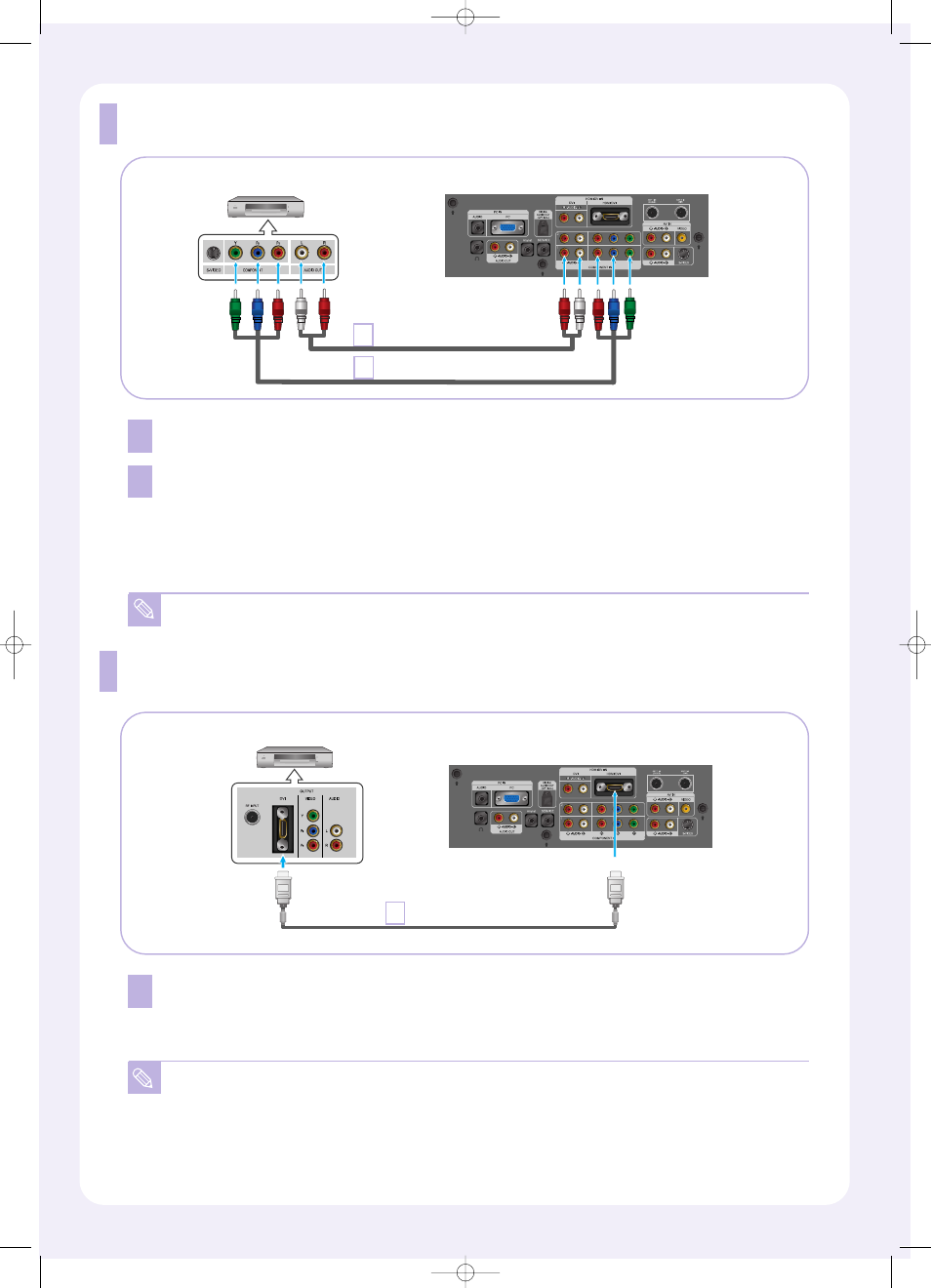

Connecting a DVD Player
1
2
Connect an audio cable between the COMPONENT IN 1 [R-AUDIO-L] jacks on the TV and the
AUDIO OUT jacks on the DVD player.
Connect a component video cable between the COMPONENT IN 1 or COMPONENT 1 IN [P
R
, P
B
, Y]
jacks on the TV and the COMPONENT [Y, P
B
, P
R
] jacks on the DVD player.
1
2
Each external input source device (DVD, STB, VCR etc.) has a different back panel
configuration.
Audio Cable (Option)
Component Cable (Option)
DVD Player Rear Panel TV Rear Panel
Connecting a DVD / Set-top box via HDMI
1 Connect a HDMI cable between the HDMI/DVI connector on the TV and the HDMI
connector on the DVD player/Set-top box.
What is HDMI?
• HDMI, or high-defintion multimedia interface, is a next-generation interface that enables the
transmission of digital audio and video signals using a single cable without compression.
• “Multimedia interface” is a more accurate name for it especially because it allows multiple
channels of digital audio (5.1 channels). The difference between HDMI and DVI is that the HDMI
device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection)coding feature
installed, and supports multi-channel digital audio.
TV Rear Panel
1
HDMI Cable (Option)
DVD Player Rear Panel
