Samsung LNR408DX-XAC - Manual (Page 3)

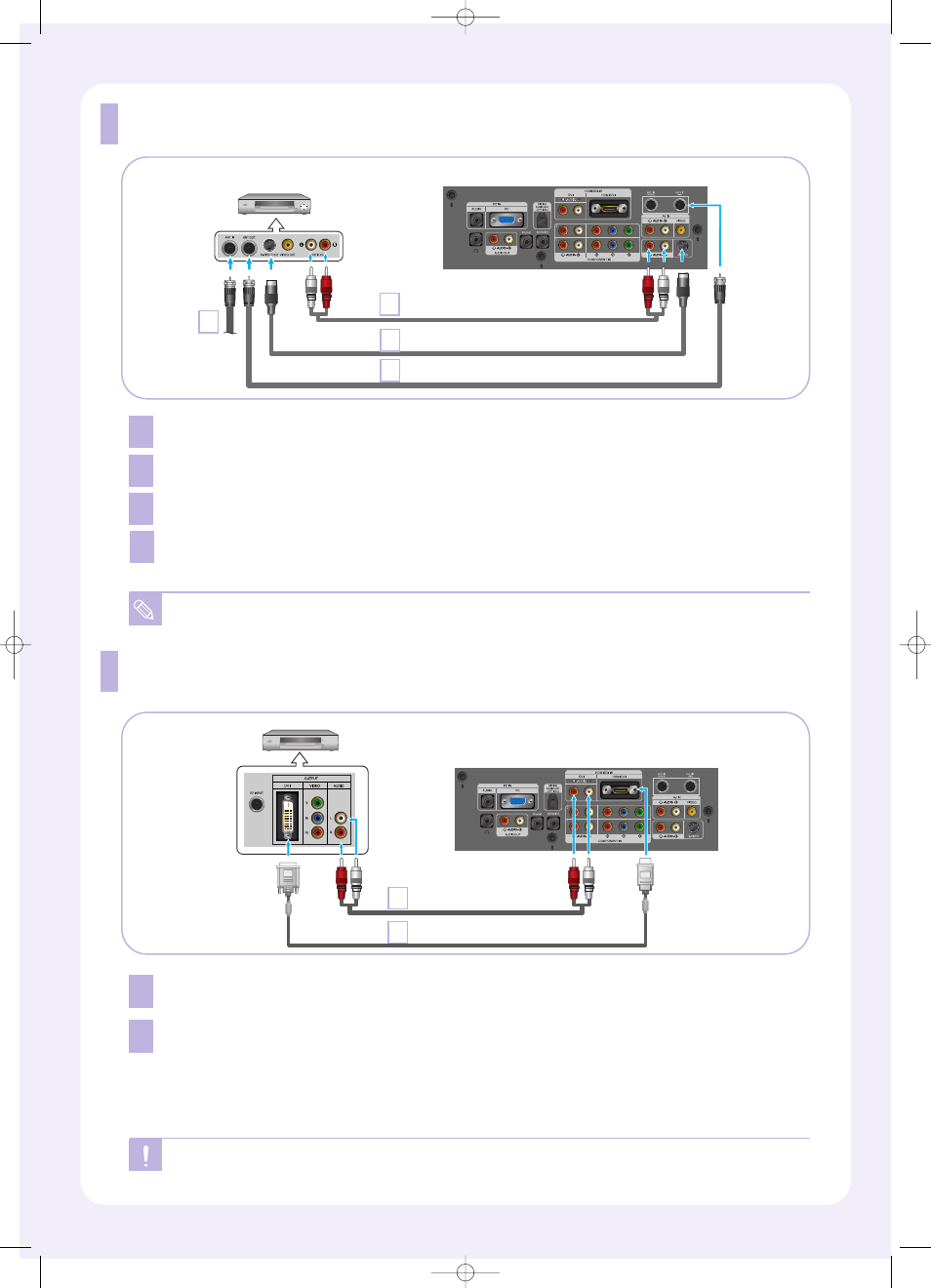

Connecting a DVD / Samsung Set-top box via DVI
1
2
1
2
3
Connecting an S-VHS VCR
Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
Connect an RF cable between the ANTOUT terminal on the VCR and the ANT1 IN(CABLE) or
ANT 2 IN(AIR) terminal on the TV.
Connect an audio cable between the AUDIO OUT jacks on the VCR and the [R-AUDIO-L]
jacks on the TV.
4
Connect an S-video cable between the S-VIDEO OUT jack on the VCR and the [S-VIDEO] jack on
the TV.
An S-Video cable is usually included with an S-VHS VCR.
Connect a DVI to HDMI cable or DVI-HDMI Adapter (DVI to HDMI) between the HDMI/DVI
connector on the TV and DVI connector on the DVD player/Set-top box.
Connect an audio cable between the DVI [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks
on the DVD player/Samsung Set-top box.
DVI-D does not support PC function.
S-Video Cable (Option)
Audio Cable (Option)
TV Rear Panel
RF Cable
VCR Rear Panel
1
2
3
4
DVI to HDMI Cable (Option)
Audio Cable (Option)
DVD Player Rear Panel
TV Rear Panel
1
2
Cable
or
Antenna
