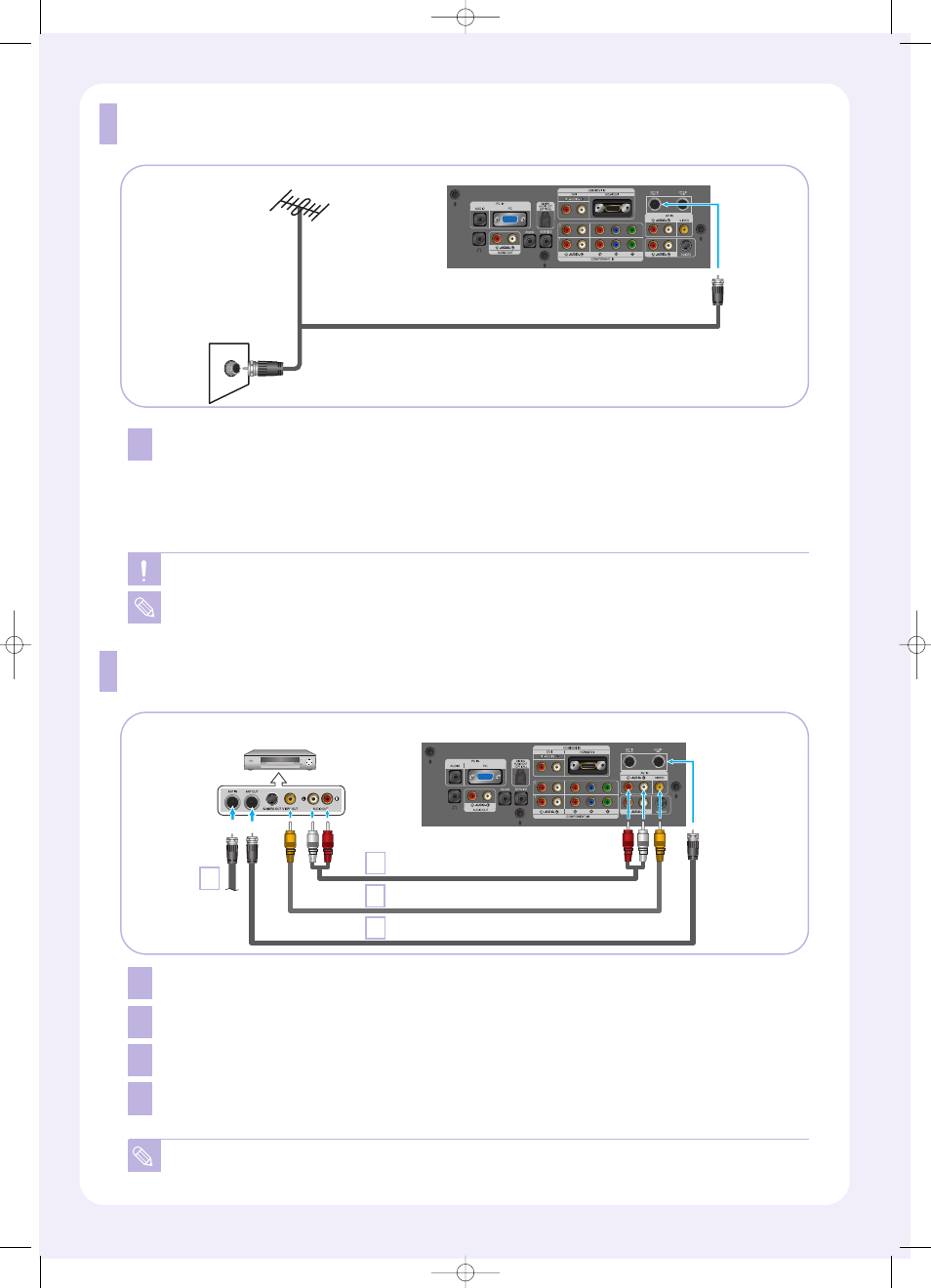

Connecting Antenna/Cable TV
1 Plug the antenna/cable TV lead into the ANT1 IN (CABLE) terminal on the bottom of the back
panel.
When connecting the RF cable to the antenna input terminal, keep the copper wire portion of
the RF cable straight to avoid bending it.
For more detailed antenna/cable TV connections, see pages 7-10 of the owner's manual.
1
2
3
4
Connecting a VCR
Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
Connect an RF cable between the ANT OUT terminal on the VCR and the ANT1 IN (CABLE) or
ANT 2 IN (AIR) terminal on the TV.
Connect an audio cable between the AUDIO OUT jacks on the VCR and the AV IN [R-AUDIO-L]
jacks on the TV.
Connect a video cable between the VIDEO OUT jack on the VCR and the AV IN [VIDEO] jack on
the TV.
If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the
R-AUDIO-L jacks on the TV.
1
2
3
4
TV Rear Panel
RF Cable
Audio Cable (Option)
VCR Rear Panel
Video Cable (Option)
TV Rear Panel
RF Cable
Antenna
Cable TV
Cable
or
Antenna
