CONNECTIONS
connections

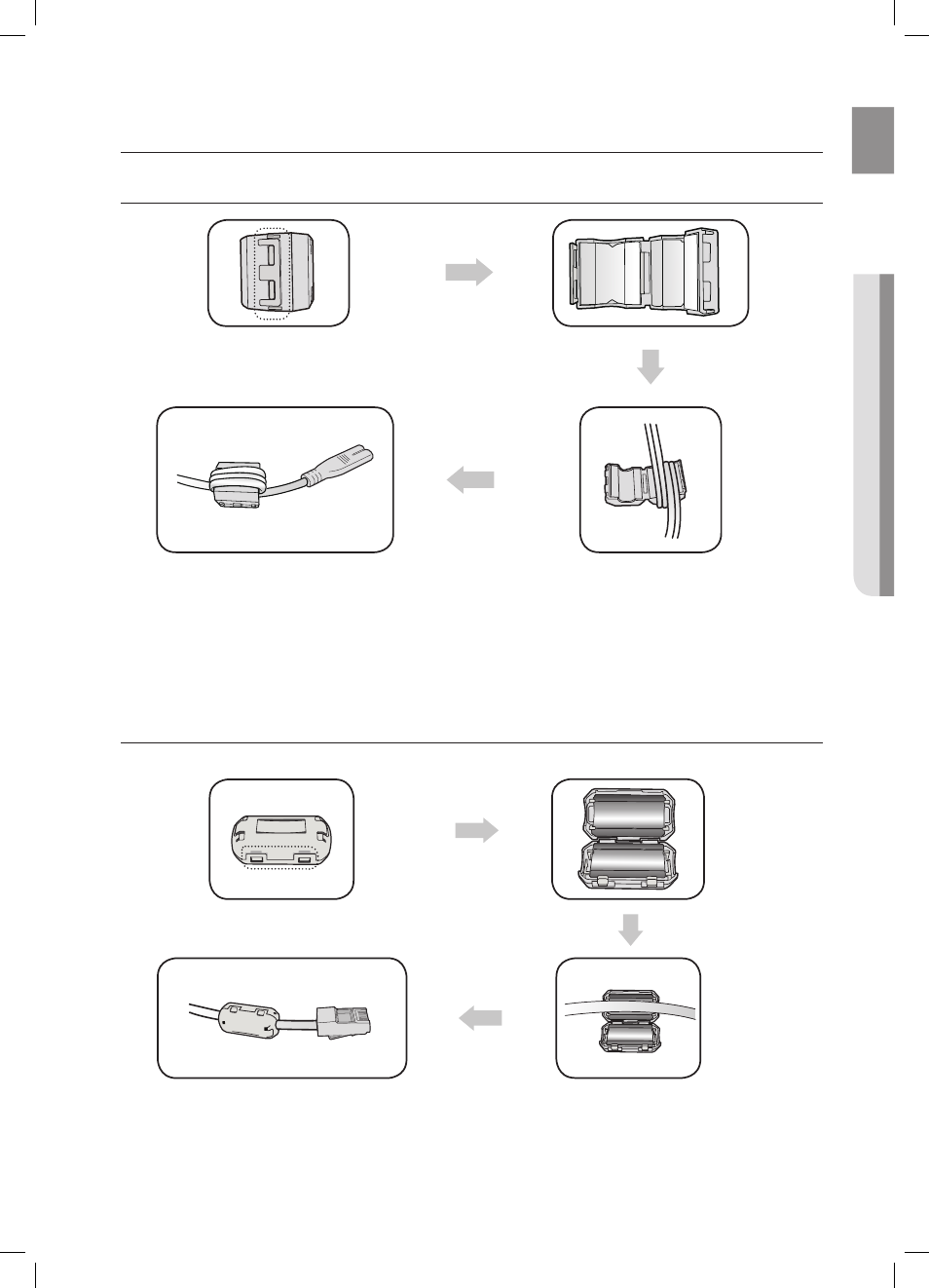

instaLLing the tOrOiDaL ferrite On the POWer caBLe
Wind Power cable around the core three times.
(Start winding at 2-4 inches away from the plugs)
Close the lock back.
Lift up to release the lock and open the core.
instaLLing the ferrite cOre On the Lan caBLe
Place the LAN cable on the opened core.
Close the lock back.
Lift up to release the lock and open the core.
