6
General information
7
General information
#1 and #2 Phillips
screwdriver
Pencil Ruler or tape measure and
straight edge
Carpenter square (optional)
Tin snips (for cutting
damper, if required)
Scissors (to cut
template, if necessary)
Electric drill with 3 /
16
˝, ½˝ and
⅝˝ drill bits
Filler blocks or scrap wood
pieces, if needed for top
cabinet spacing (used on
recessed bottom cabinet
installations only)
Gloves Saw (saber, hole or
keyhole)
Stud finder or Hammer
(optional)
Safety goggles
Level Duct and masking tape
TOOLS YOU WILL NEED
NOTES:
• The space between the cabinets must be 30˝ wide and
free of obstructions.
• This microwave oven is for installation over ranges up
to 36˝ wide.
• If you are going to vent your microwave oven to the
outside, see Hood Exhaust Section for exhaust duct
preparation.
• When installing the microwave oven beneath
smooth flat cabinets be careful to follow the
instructions on the top cabinet template for
power cord clearance.
• maximum cabinet depth above and beside the
unit is 12˝.
• The dimensions provided are the minimum
required for mounting the microwave oven. Local
codes and practical use of the range will likely
require more than 13.5˝ shown between the range
and the bottom of the microwave.
mOUNTING SPACE
• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or
replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by
arrangement between customer and installer.
DAmAGE – SHIPmENT/INSTALLATION

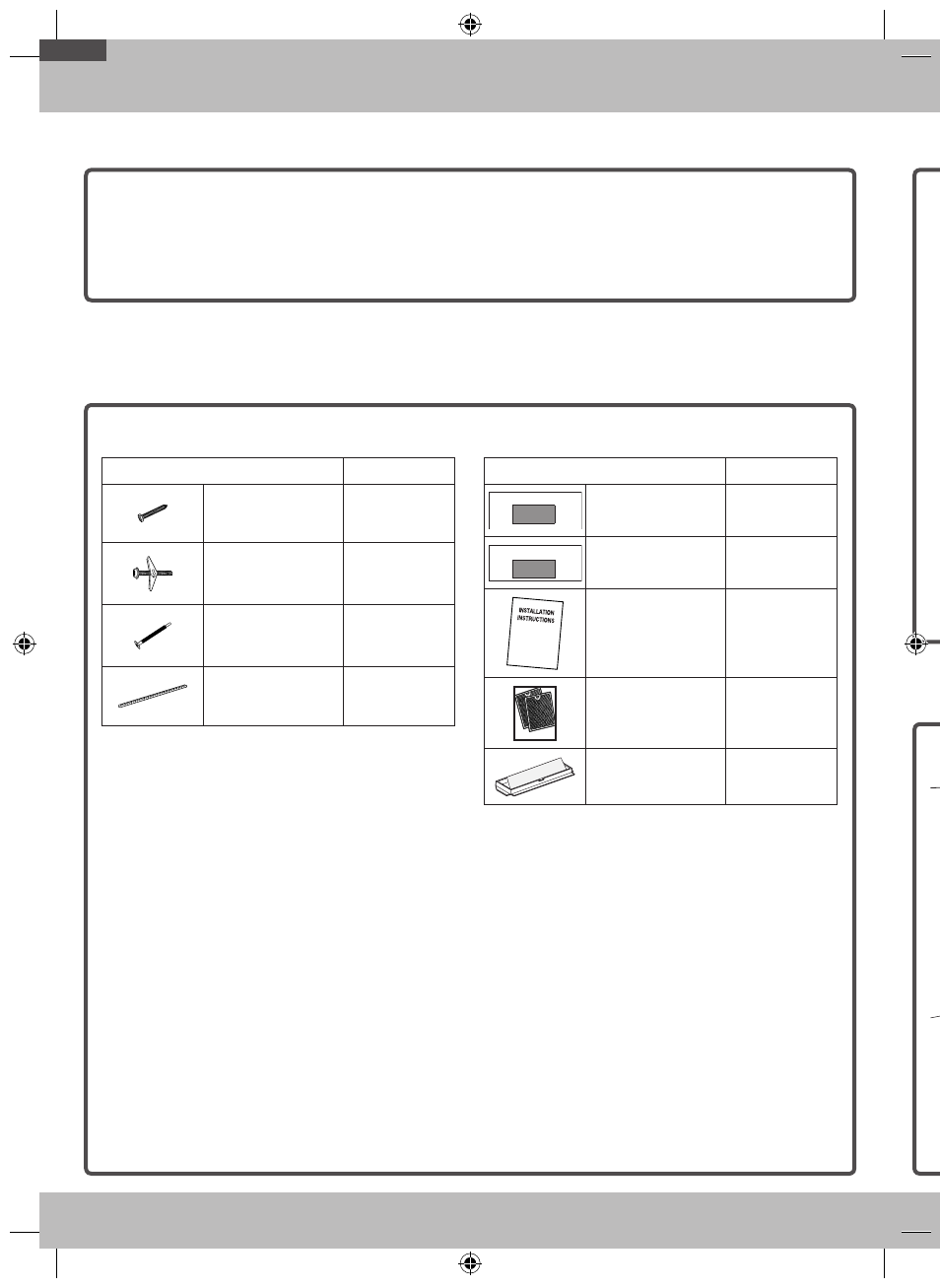

HARDWARE PACKET
PART QUANTITY
Wood Screws
(¼˝ x 2˝)
1
Toggle Bolts
(and wing nuts)
( 3 /
16
˝ x 3˝)
2
Self-aligning
Machine Screws
(¼˝-28 x 3 ¼˝)
2
Nylon Grommet
(for metal cabinets)
1
You will find the installation hardware contained in a
packet with the unit. Check to make sure you have all
these parts.
NOTE: Some extra parts are included.
ADDITIONAL PARTS
PART QUANTITY
TOP CABINET TEMPLATE Top Cabinet
Template
1
REAR WALL TEMPLATE
Rear Wall Template 1
Installation
Instructions
1
Separately Packed
Grease Filters
2
Exhaust adaptor 1
PARTS INCLUDED
