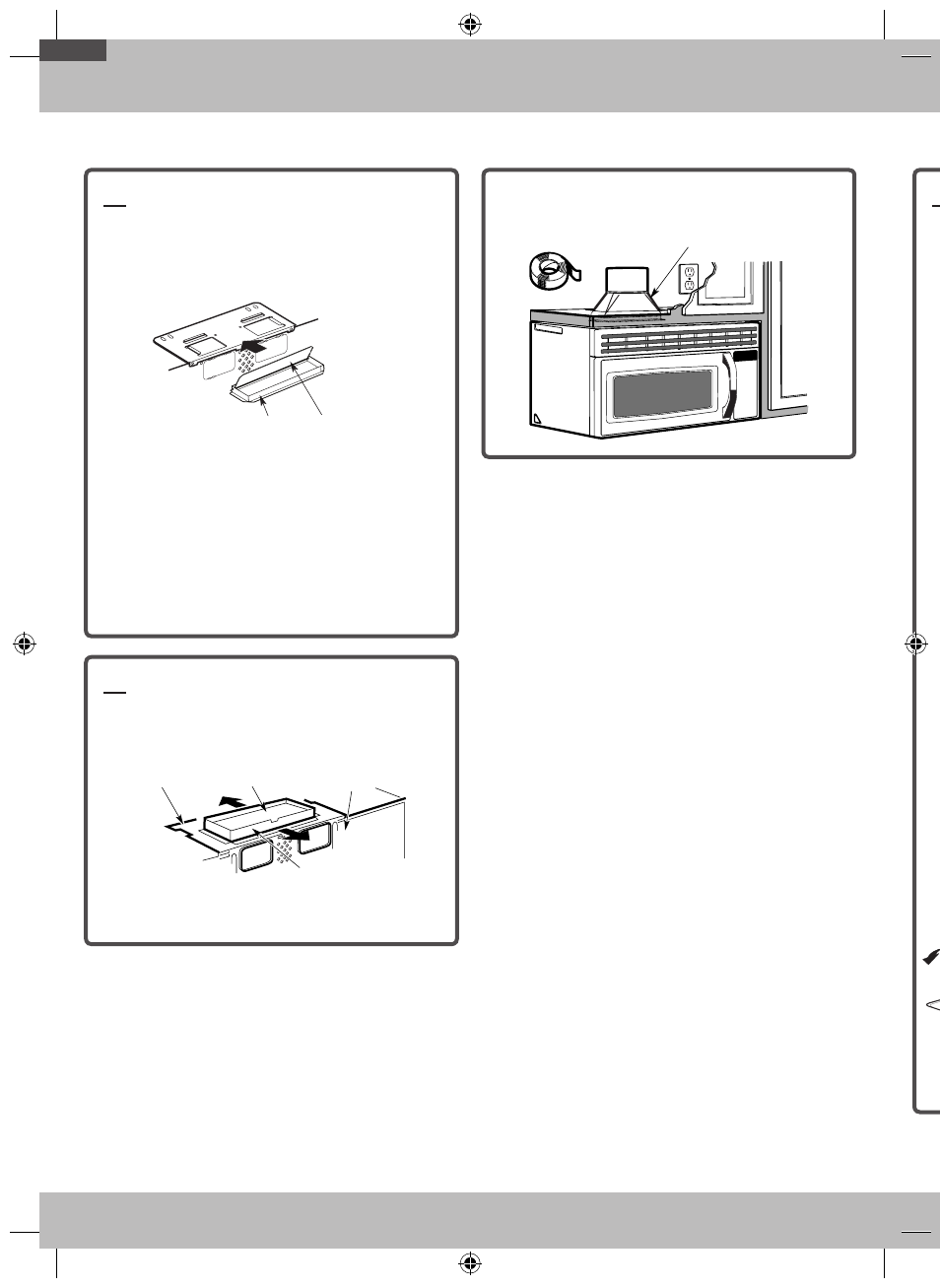

A1. INSTALLATION PROCEDURE
FOR EXHAUST ADAPTOR AND
PROPER DAMPER OPERATION
CHECK
Exhaust Adaptor and Damper is
shipped assembled to the filler-upper.
1. Slide exhaust adaptor following the instructions
show in diagram.
2. Make sure tape securing damper is removed
and damper pivots easoly before mounting
microwave.
• You will need to make adjustments to assure
proper alignment with your house exhaust duct
after the microwave is installed.
A2. ADjUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust
adaptor to connect to the house duct.
For Front-to-Back
Adjustment, Slide the
Exhaust Adaptor as
Needed
Blower-Plate
Back of
Microwave Damper
NOTE: The house duct is needed to connect to the
exhaust adaptor after installation completion.
House Duct
B1. ADAPTING mICROWAVE BLOWER
FOR RECIRCULATION
1. Remove and save screw
that holds blower plate to
microwave.
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want to
save them for possible future use.
3. Remove screw holds blower mortor and
carefully pull out the blower unit. The wires will
extend far enough to allow you to adjust the
blower unit.
CAUTION: Do not touch blade of blower for
preventing crack and break. Hold outer case when
the blower pull out or back into.
4. Roll the blower unit 90 ° so that fan blade
openings are facing toward the front of the
microwave.
A. OUTSIDE TOP EXHAUST (VERTICAL DUCT) B. RECIRCULATING (NON-VENTED DUCTLESS)
