14
Step-by-step installation guide
15
Step-by-step installation guide
C. OUTSIDE BACK EXHAUST (HORIzONTAL DUCT)
5. Place the blower unit back into the opening.
CAUTION: Do not pull or stretch the blower unit
wiring. Make sure the wires are not pinched.
NOTE: The blower unit exhaust openings
should match exhaust openings on rear of
microwave oven.
6. Close the blower plate and attach the exhaust
adaptor to the rear of the oven by sliding it
into the guides at the top center of the back
of the oven. Push in securely until it is in the
lower locking tabs. Take care to assure that the
damper hinge is installed so that it is at the top
and that the damper swings freely.
B. ATTACH THE mOUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach the
plate to a wall stud.
1. Remove the toggle wings from the bolts.
2. Insert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to ¾˝ onto each bolt.

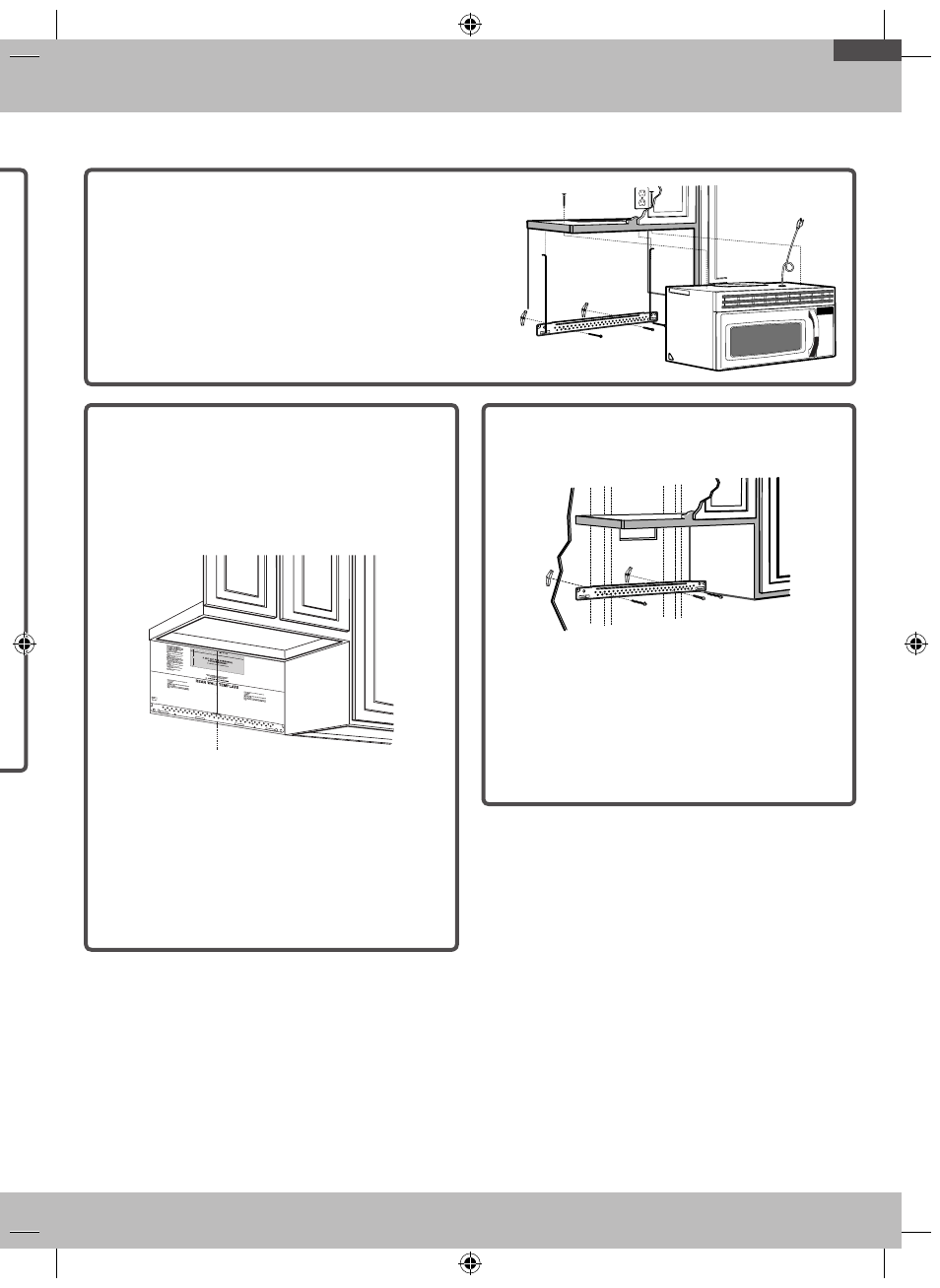

INSTALLATION OVERVIEW
A. Prepare Rear Wall (only horizontal duct)
B. Attach Mounting Plate to Wall
C. Prepare Top Cabinet
D. Mount the Microwave Oven
E. Connecting Ductwork (only vertical duct)
A. PREPARING THE REAR
WALL FOR OUTSIDE BACK
EXHAUST
You need to cut an opening in the rear wall for
outside exhaust.
CL
• Read the instructions on the REAR WALL
TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
CAUTION: Do not cut an opening on the real wall, in
case of vertical duct and non-vented ductless.
3. INSTALLATION
