10
Step-by-step installation guide
11
Step-by-step installation guide
2. VENTILATION TYPES (CHOOSE A, B OR C)
This microwave oven is designed for adaptation to the
following three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Recirculating (Non-Vented Ductless)
C. Outside Back Exhaust (Horizontal Duct)
NOTE: This microwave is shipped assembled for
Outside Top Exhaust (except for non-vented models).
And exhaust adaptor is shipped assembled to the
filler-upper. Select the type of ventilation required for
your installation and proceed to that section.
A. OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
B. RECIRCULATING
(NON-VENTED DUCTLESS)
See page 12 See page 13
A Charcoal Filter Accessory Kit is required for the
nonvented exhaust. (See your Owner’s Manual for the
kit number.)
C. OUTSIDE BACK EXHAUST
(HORIzONTAL DUCT)
See page 14

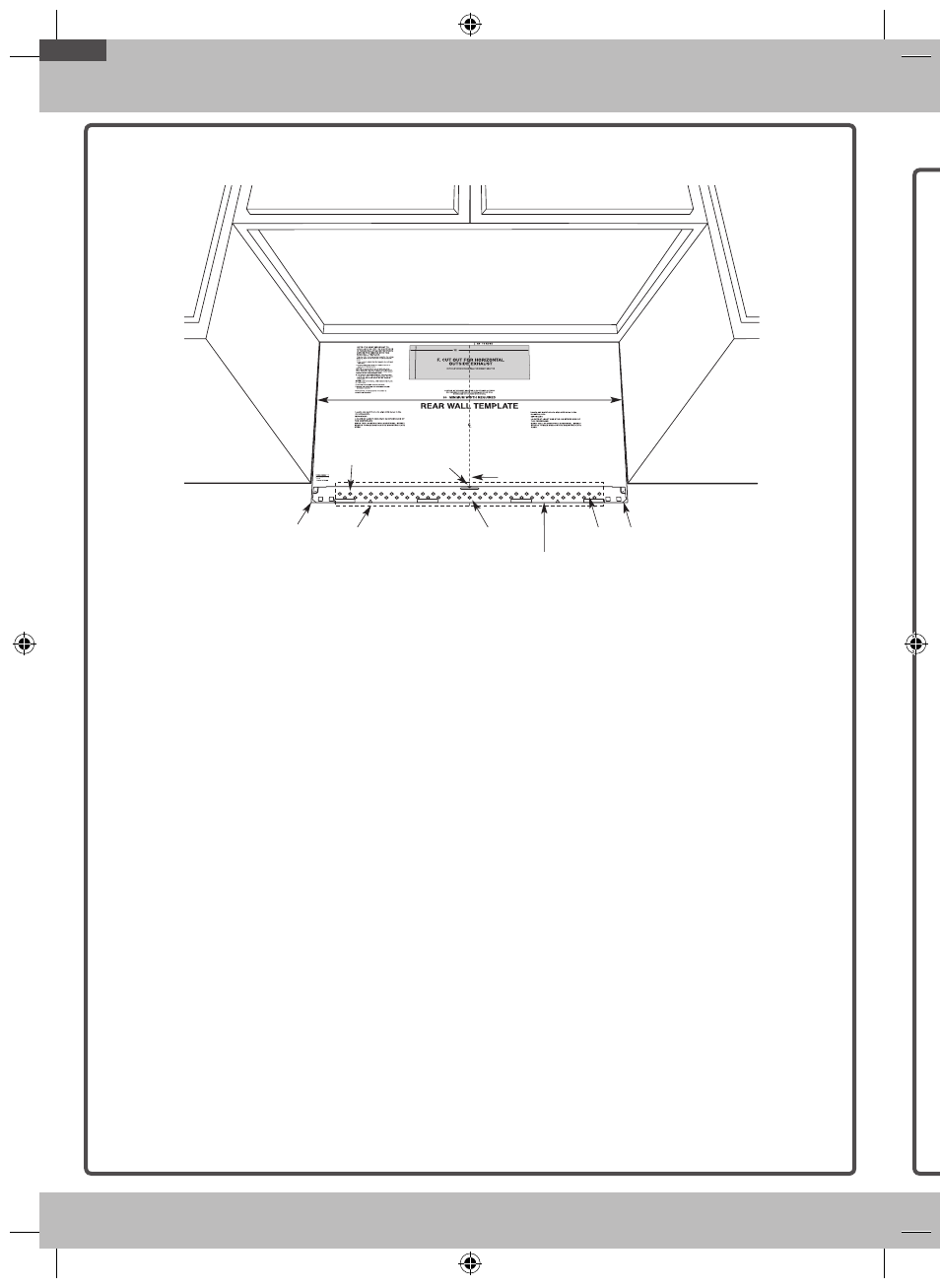

D. ALIGNING THE WALL PLATE
CL
Draw a Horizontal line on wall from
bottom of “Rear Wall Template˝.
Draw a Vertical Line
on Wall from Center
of Top Cabinet
Horizontal Line Horizontal Line Area E Hole C
Centerline
notches
Hole A
Hole B
CAUTION: Wear gloves to avoid cutting fingers
on sharp edges.
1. Draw a Vertical line on the wall at the center
of the 30˝ wide space.
2. Draw a Horizontal line on the wall at the
bottom of “Rear Wall Template”.
3. Drill ⅝˝ holes for toggle bolts on 3 locations
(Hole A, Hole B, Hole C) but if the location of
hole is same as that of stud, drill a 3 /
16
˝ hole
for wood screw. In other words, toggle bolt
can not be used to the location of stud.
NOTE: DO NOT mOUNT THE PLATE AT
THIS TIME.
NOTE: Holes A, B and C are inside area E.
If none of A, B and C is in a stud, find a stud
somewhere in area E and draw a forth circle to
line up with the stud. It is important to use at
least one wood screw mounted firmly in a
stud to support the weight of the microwave. Set
the mounting plate aside.
