installing your dryer _23

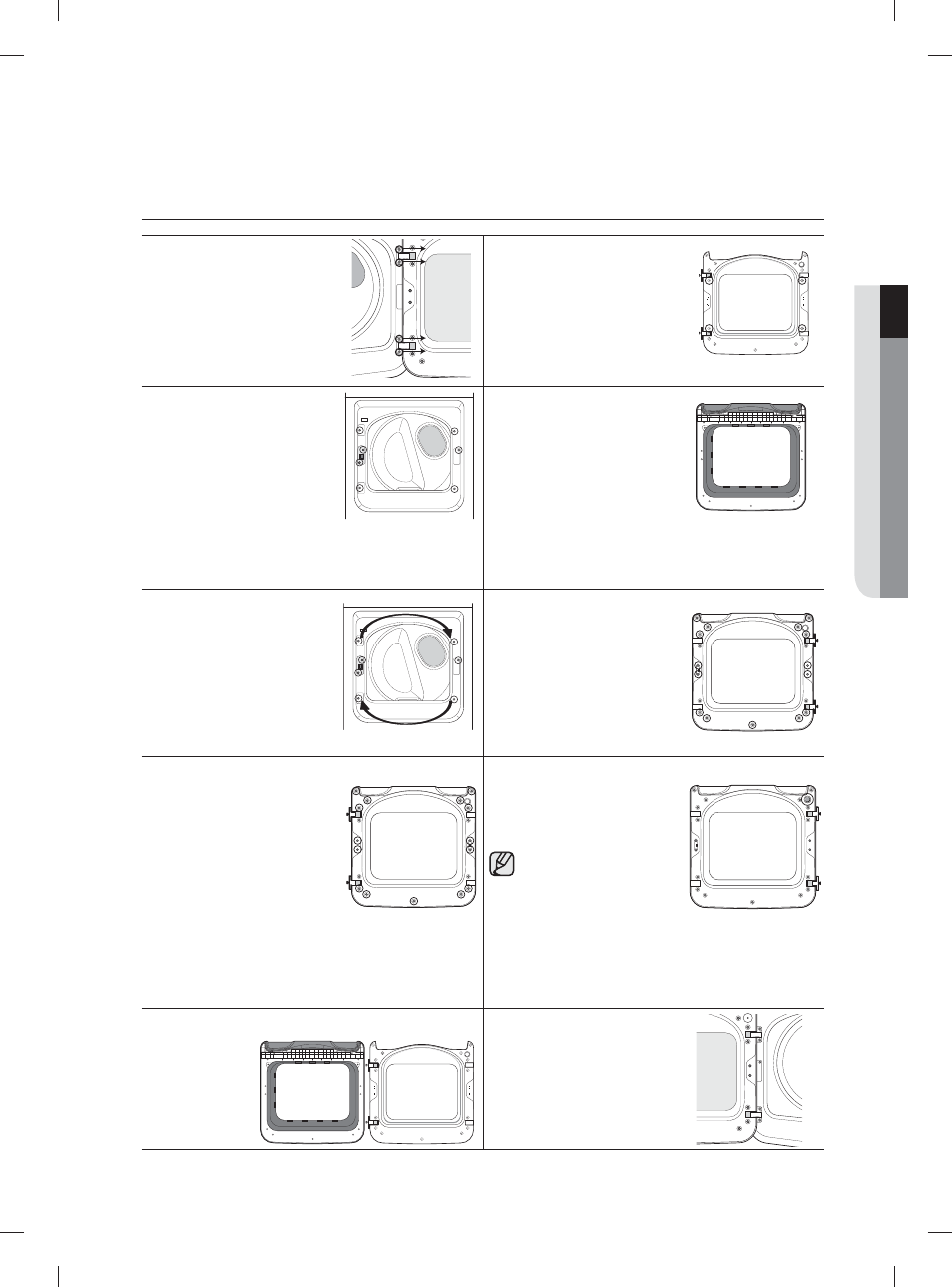

DOOR REVERSAL
1. Unplug the power cord.
2. Remove the four hinge
screws from the door.
3. Remove the door by
lifting it.
10. First, the upper part of the
“A” component and “B”
please replace the parts
opposite each other.
(Remove two screws and
tighten two screws.)
11. Please replace the lower
regions equally.
4. Remove two Screws from
the Lever-Holder and then
remove two screws and
the Cover-Fronts on the
top and bottom of the
Frame-Front.
5. Remove two screws on
the Frame-Front and then
remove the screw and the
Cover-Holder on the right
of the Frame-Front.
12. If there have been placed
as shown, cover the
Holder-Glass.
6. After assembling the parts
removed in Step 4 into
the right of the Frame-
Front, tighten four screws.
7. Also after assembling
the parts removed in
Step 5 into the left of the
Frame-Front, tighten three
screws.
13. Please install the Lever-
Door onto the other side
and tighten all the screws
remaining.
8. Put the back of the parts
visible and remove the 15
screws.
14. Remove the Cushion-
Cover(F). Failure to do
so may result in the
malfunction.
Store the removed
Cushion-Cover(F) in a
safe location. When you
change the direction in
which the door opens so
that the door opens to
the left, you have to install
the Cushion-Cover(F)
onto the door again.
9. Remove the Holder-Glass
like a figure.
15. Install the door onto the
Frame-Front and tighten
the four screws that you
removed in Step 2.
