66

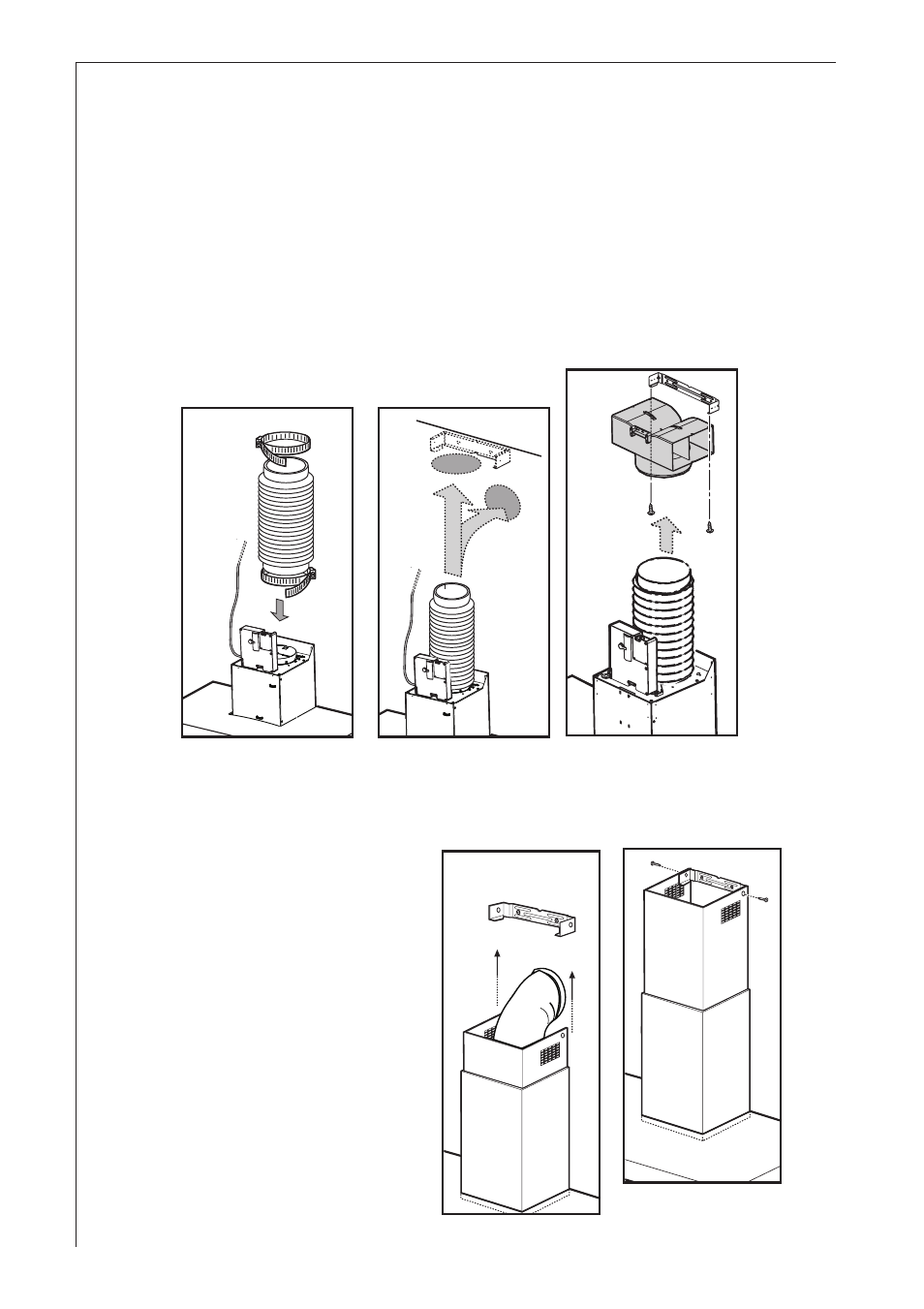

Fig. 12a Fig. 12b Fig. 12c
Fig. 13a Fig. 13b
• Connect a tube (tube and bands for fixing not supplied, to be
purchased) for discharging the fumes to the connection ring placed
over the aspiration motor unit.
The other end of the tube should be connected to a device for
expelling fumes on the outside of the hood in the aspiration version.
Fig. 12a-b
If you want to use the filtering version, fix deflector to flues support
bracket and connect the other end of the tube to the connection ring
placed on deflector. Fig. 12c
• Connect the electricity.
• Slide the lower section of
the flue down to cover the
aspiration set until inserting
it completely into the
apposite housing over the
hood. Fig. 13a
• Raise the upper flue and fix
it above with 2 screws to
flues support bracket.
Fig.13b
• Refit the grease filter.
