65

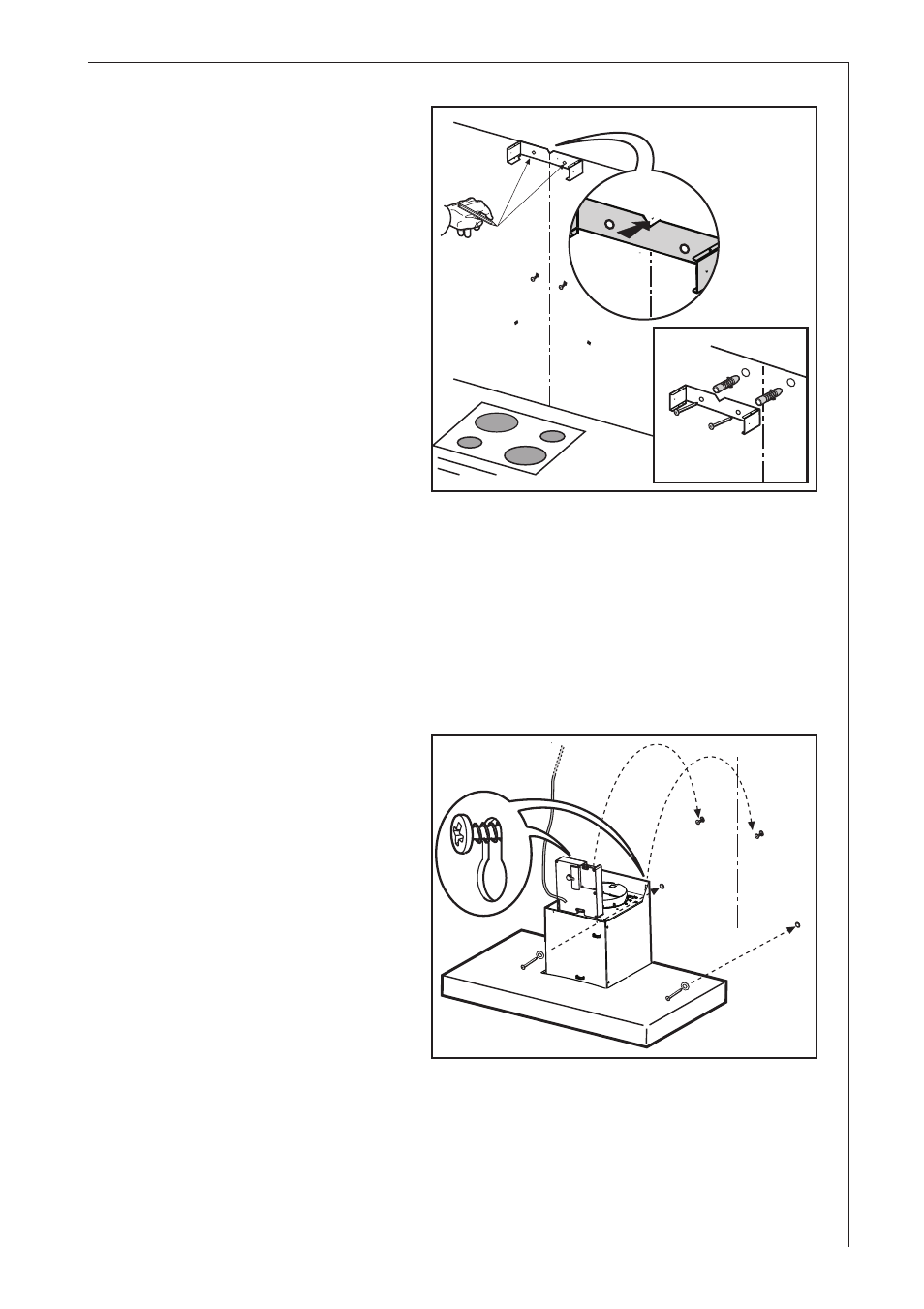

• Apply flues support
bracket to the wall
touching the ceiling. Use
the flues support bracket
as a perforation diagram
(the small slot in the
support must coincide
with the line previously
drawn on the wall, if
present), and mark two
holes with a pencil. Make
the holes and insert 2
dowels.
• Fix the flues support
bracket to the wall with 2
screws. Fig. 10
G
Ш 8
Ш 5x45
Fig. 10
Fig. 11
• Hang the hood to the 2
upper screws.
• Introduce and screw the
screws (and washers) up
into the holes for the
definitive fixing
(COMPULSORY!!).
Then, having checked
the setting of the hood,
TIGHTEN ALL THE
upper and lower
SCREWS. Fig. 11
Note: the lower fixing
points are visible
removing the grease
filters and they are at the
sides of the hood
