Chapter 3

59

5.

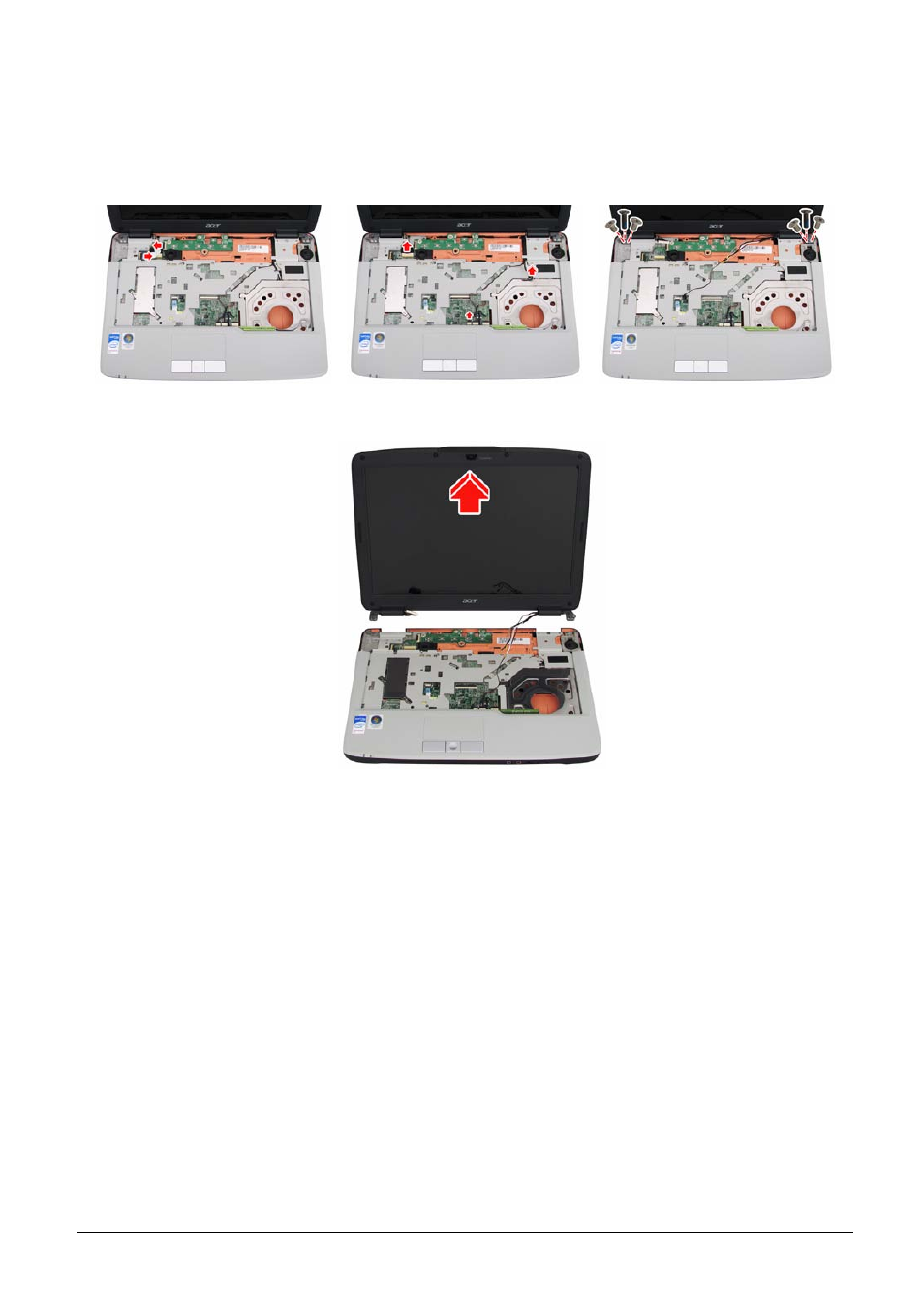

Disconnect both ends of the switch board FFC cable.

6.

Disconnect the LCD and microphone cables, and pull through the wireless LAN antennae from the
underside of the main unit.

7.

Remove the six screws securing the hinges.

8.

Detach the LCD module from the main unit.
