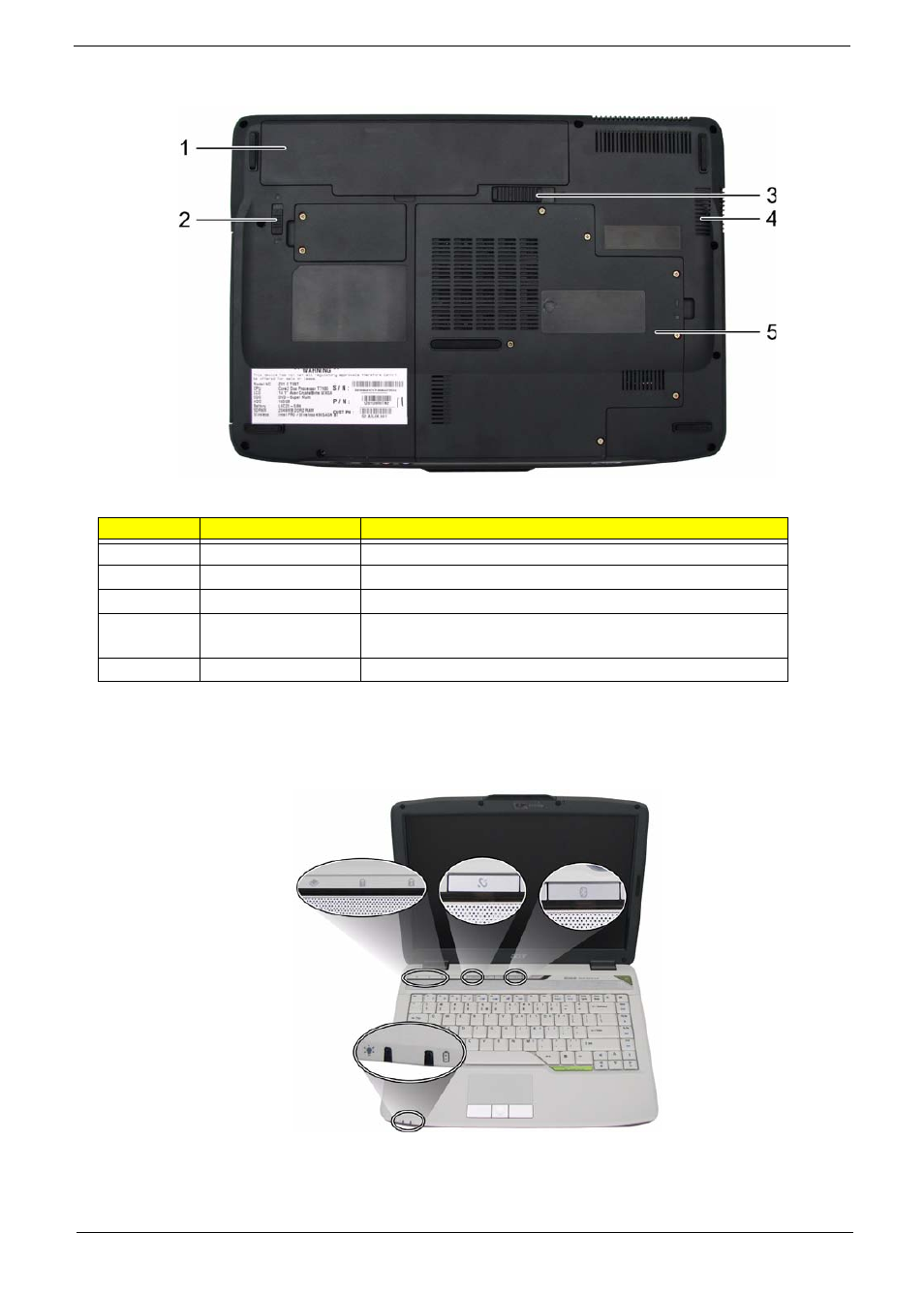

Base view
Indicators
The computer has several easy-to-read status indicators.
The front panel indicators are visible even when the computer cover is closed up.
#
Item
Description
1
Battery bay
Houses the computer’s battery pack.
2
Battery lock
Locks the battery in position.
3
Battery release latch
Releases the battery for removal.
4
Ventilation slots and
cooling fan
Enable the computer to stay cool, even after prolonged use.
Note: Do not cover or obstruct the opening of the fan.
5
Back panel
Houses the computer’s hard disk and main memory.
