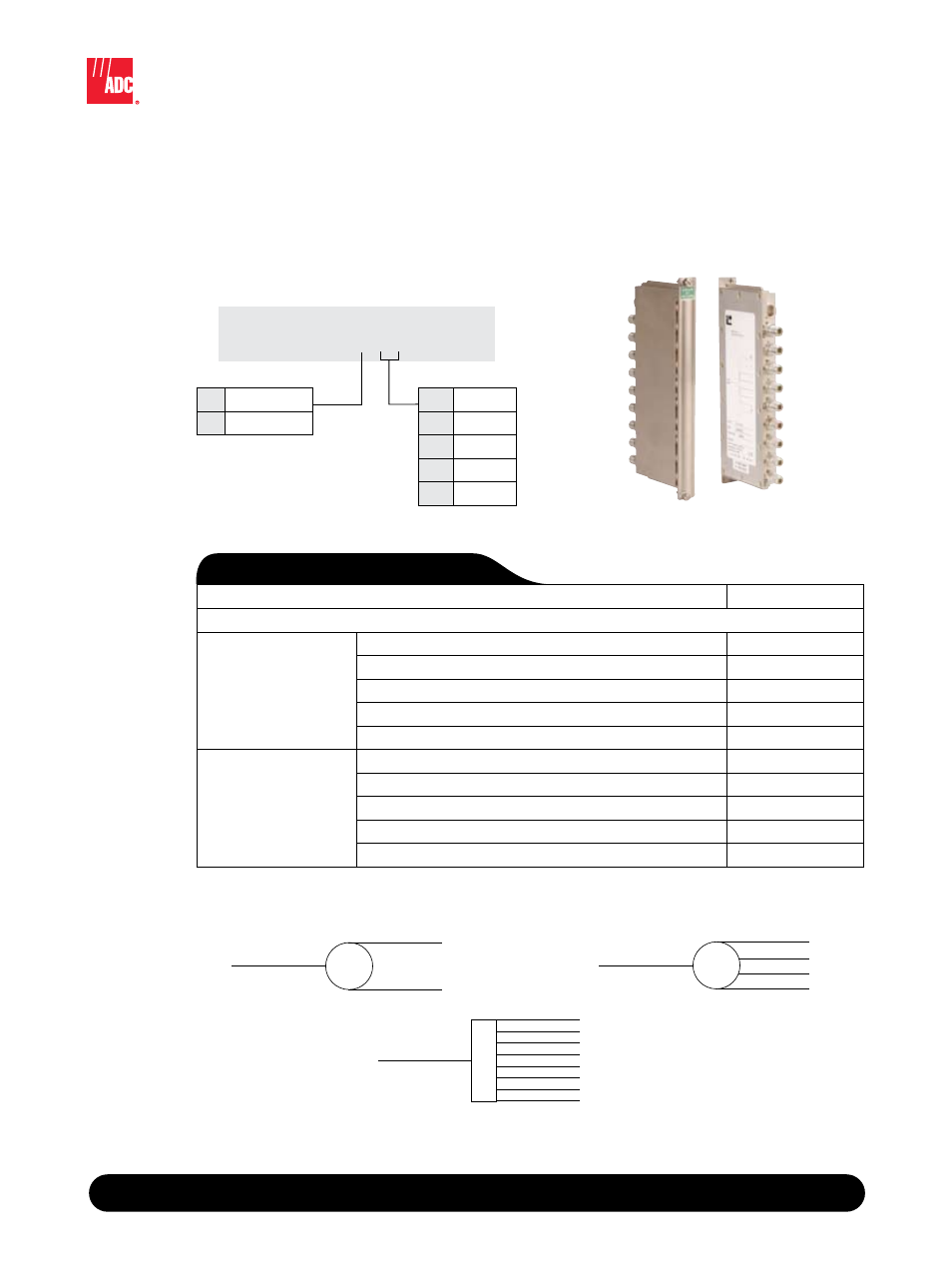

Passives: L-Band Satellite Splitter Modules
950 MHz to 2.15 GHz
ADC’s new L-Band series satellite splitter modules are engineered for the highest performance in
the 950 MHz to 2.15 GHz frequency range. These plain splitter/combiner modules feature dual port
power-passing capability for powering LNB’s. All L-Band modules are available with precision F
or BNC connectors, and are NEBS Level 3 compliant.
Connector Type
F F
B BNC
Catalog Number
N - ML __ __ __
Configuration
12 2:1
14 4:1
18 8:1
32 3 x 2:1*
24 2 x 4:1*
*Housed in a single module.
O r d e r i n g I n f o r m a t i o n
L-Band
Satellite Splitter
Description Catalog Number
L-Band Satellite Splitter Modules
BNC connector 2:1 splitter N-MLB12
4:1 splitter N-MLB14
8:1 splitter N-MLB18
3x2:1 splitter N-MLB32
2x4:1 splitter N-MLB24
F connector 2:1 splitter N-MLF12
4:1 splitter N-MLF14
8:1 splitter N-MLF18
3x2:1 splitter N-MLF32
2x4:1 splitter N-MLF24
All L-Band modules feature dual port power passing capability.
Pass
Pass
Pass
Pass
Pass
Pass
2-Way Splitter 4-Way Splitter
8-Way Splitter
1
2
3
4 1
2
1
2
3
4
5
6
7
8
