Page 103

Chapter 3 System Housing 3-9

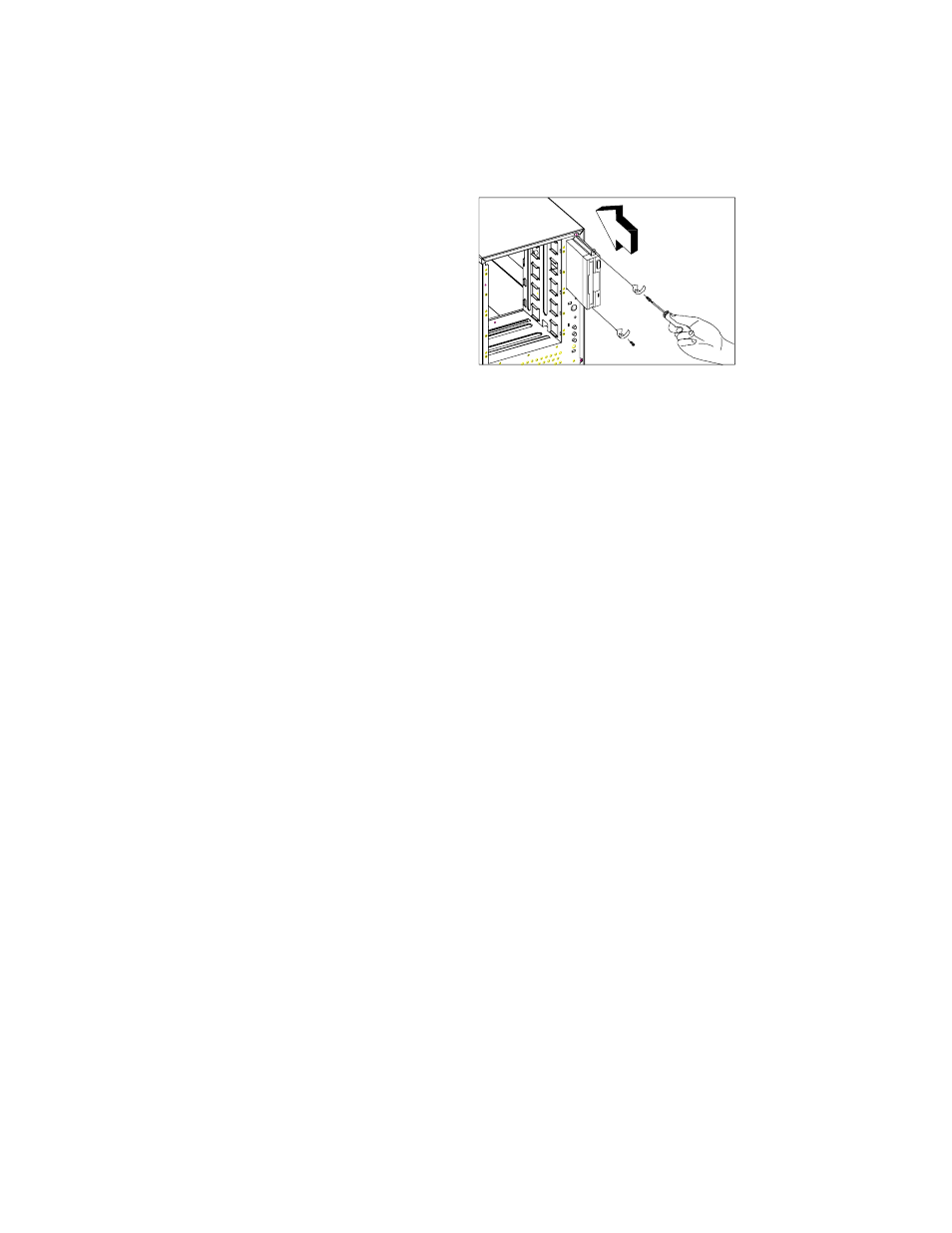

4. Insert the drive into the drive bay and secure it with two screws.

5. Connect the diskette drive cables.

3.4.2

5.25-inch Drives

You may install a CD-ROM, tape drive, hard disk, diskette drive or any other
5.25-inch device into the drive bay.

1. Open the front panel. See section 5 for more information on opening the

housing panel.

2. Remove the screws attaching the 5.25-inch drive frame (2 pieces) to the

housing.

3. Secure the drive guides on the sides of a 5.25-inch drive.
