6.7.7 Control Knob ”Focus”
The control knob ”Focus” ➪ photo is used to adjust the
sharpness of the projected image.
6.7.8 Adjusting Knob ”Video”
With the “Video“ adjusting knob ➪ photo it is possible
to swing the mirror for video deflection in or out of the
optical path of the projector.
6.7.9 ”Video” Slide Switch ”VSS”
To switch on the video camera, shift the ”video” slide switch
➪ photo to the TV symbol. The Shutter/Video camera
synchronization is now controlled by the video camera, if
the unit is set to the normal ”Mode” (shutter 50 or 60 Hz).
Note: The speed in the menu ”Mode” should not be
set at 48/48 (Cine Mode).
6.7.10”Image Position” lever
The image position lever ➪ photo is used to shift the
projected image upward or downward on the projection
wall.

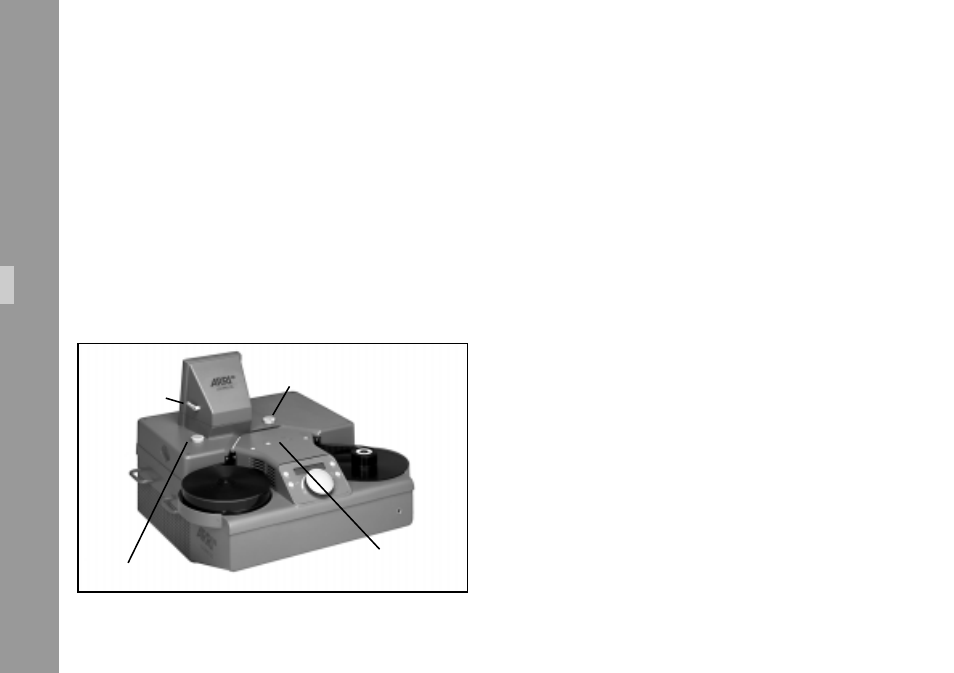

Functions
Adjusting knob “Video“
“Video“slide
switch
“Image Position“
lever
“Focus“ control knob
