12_

setting up

12_

setting up

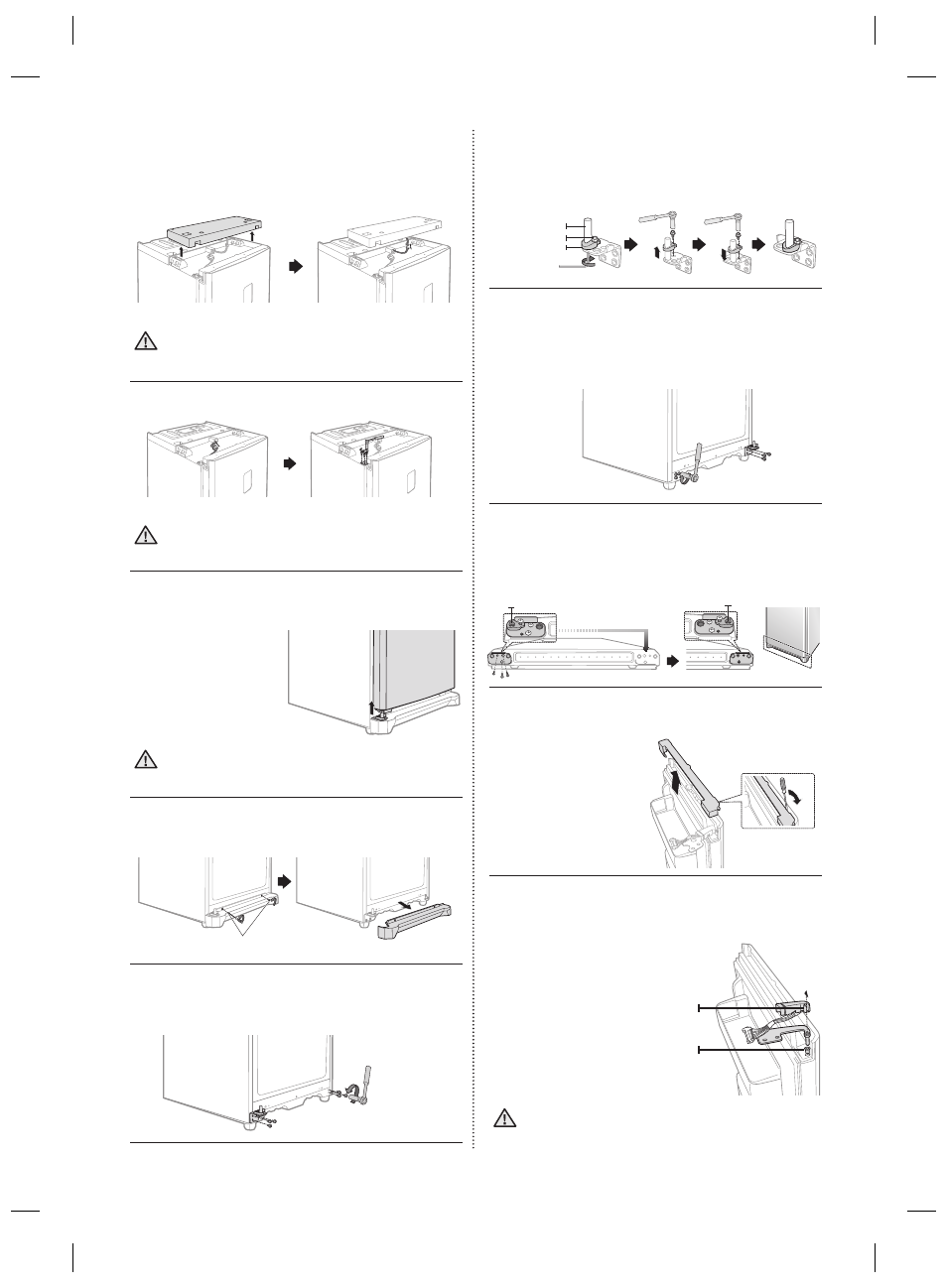

7. Separate the hinge shaft by using hex wrench

first. Unscrew the bolt to remove the hinge riser
and switch the side of the hinge shaft and the
hinge riser.

8. Attach the hinge on the bottom right side of the

freezer where bolts were previously removed in
step 6. Screw the bolts that were removed on
the bottom left side of the freezer for the future
usage.

9. Remove the screws on the bottom right and left

side of the freezer door. Switch the side of the
door stopper from left to the right. Hinge riser
should be switched as well.

10. Remove the wire cover on top of the freezer door

to switch the side of the wires.

11. Remove the hinge and the grommet from the

freezer door. Detach the left side hinge cover and
pull the wires out of the hinge cover.

Be careful not to damage the electrical wires
when removing the hinge cover.

2. Remove the plastic cover and make sure to

disconnect the wire connected to it.
After removing the plastic cover, check the parts
for reversing the door.

Be careful not to damage the electrical wires
when removing the p

lastic cover.

3. Disconnect the wires and then remove 3 bolts.

Make sure your freezer is unplugged before
handling electrical wires.

4. Remove the door from the lower hinge by

carefully lifting the door straight up.

Freezer door is heavy, be careful not to injure
yourself when removing the freezer door.

5. Separate the front leg cover after removing 2

screws.

6. Unscrew 3 bolts tightening the hinge and also

unscrew 3 bolts on the bottom right side by the
front leg where removed hinge will be attached.

CAUTION

WARNING

Screws

10mm

Hinge shaft

8mm Bolt

Hinge riser

10mm

Hinge riser

Hinge cover

Grommet

CAUTION
