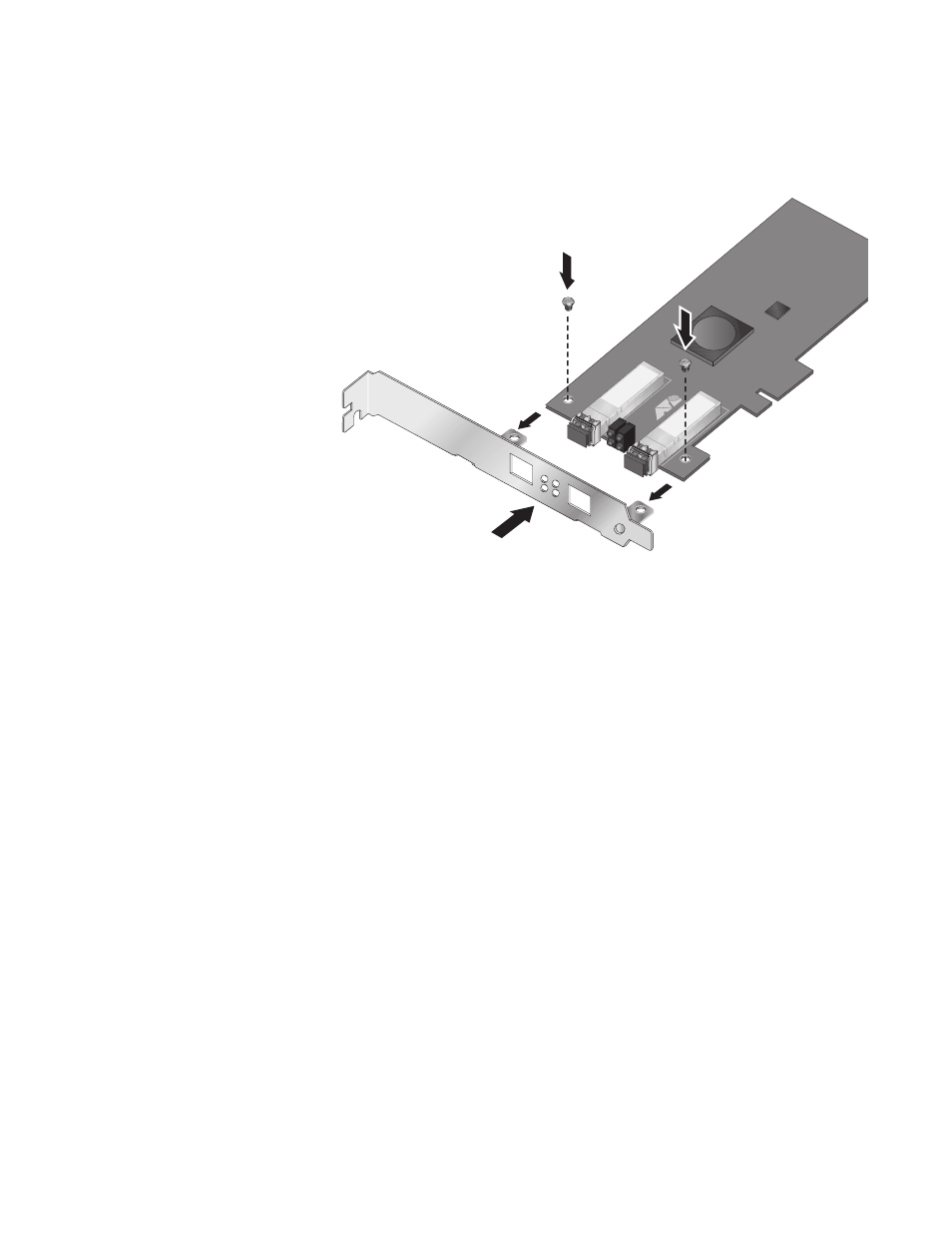

Figure 8. fastening screws onto standard bracket – Allied Telesis NETEXTREME II AT-2973SX User Manual
Page 33
AT-2973SX, AT-2973T, and AT-2973T/4 NetExtreme II Family Adapters Installation and User’s Guide
33
2. Align the tabs of the standard bracket with the holes on the adapter
and fasten the screws onto the adapter. See Figure 8.
Figure 8. Fastening Screws onto Standard Bracket
1698
ACT
LNK
AT
I
