Wiring – Campbell Scientific TB4 and TB4MM Hydrological Services Rain Gage User Manual
Page 8
TB4 and TB4MM Rain Gage
3.5”
1.5”
24”
14”

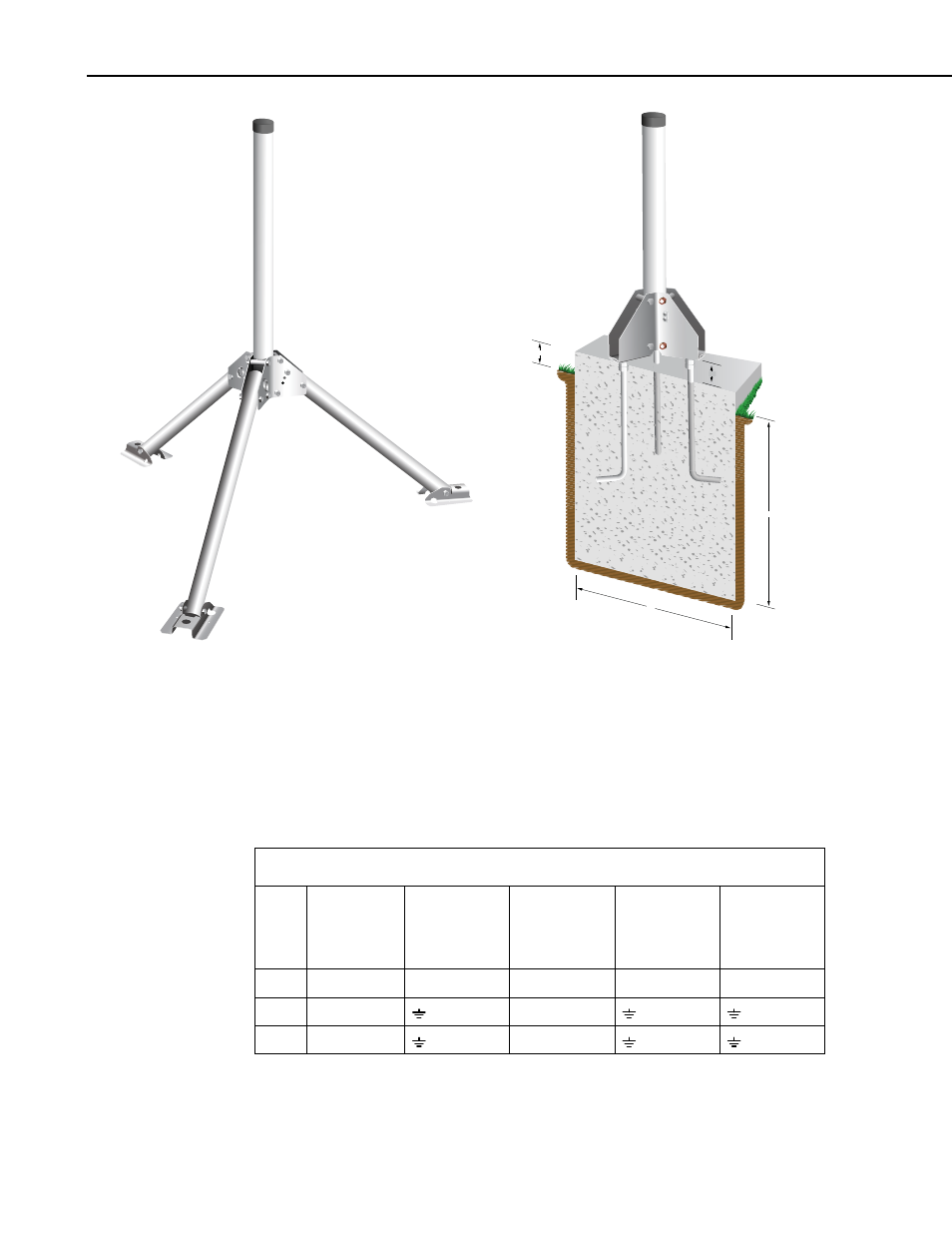

FIGURE 3-2. Pedestal Base Options
4. Wiring
Connections to Campbell Scientific dataloggers are given in Table 4-1. When
Short Cut for Windows software is used to create the datalogger program, the
sensor should be wired to the channels shown on the wiring diagram created
by Short Cut.
TABLE 4-1. Wiring for Pulse Channel Input
Color
Description
CR800
CR1000
CR3000
CR5000
CR510
CR500
CR10(X)
21X
CR7
CR23X
CR200 Series
Black Signal
Pulse Channel Pulse Channel Pulse Channel P_SW
White Signal
Return
G
Clear Shield
G
4
