PS150/CH150 12 V Charging Regulators
8. A105 Additional 12 V Terminals Adapter
The A105 adapter adds four 12 V terminals and four ground terminals to a
PS150/CH150 charging regulator. The extra terminals make it easier to wire
multiple continuously powered 12 Vdc devices to the power supply.

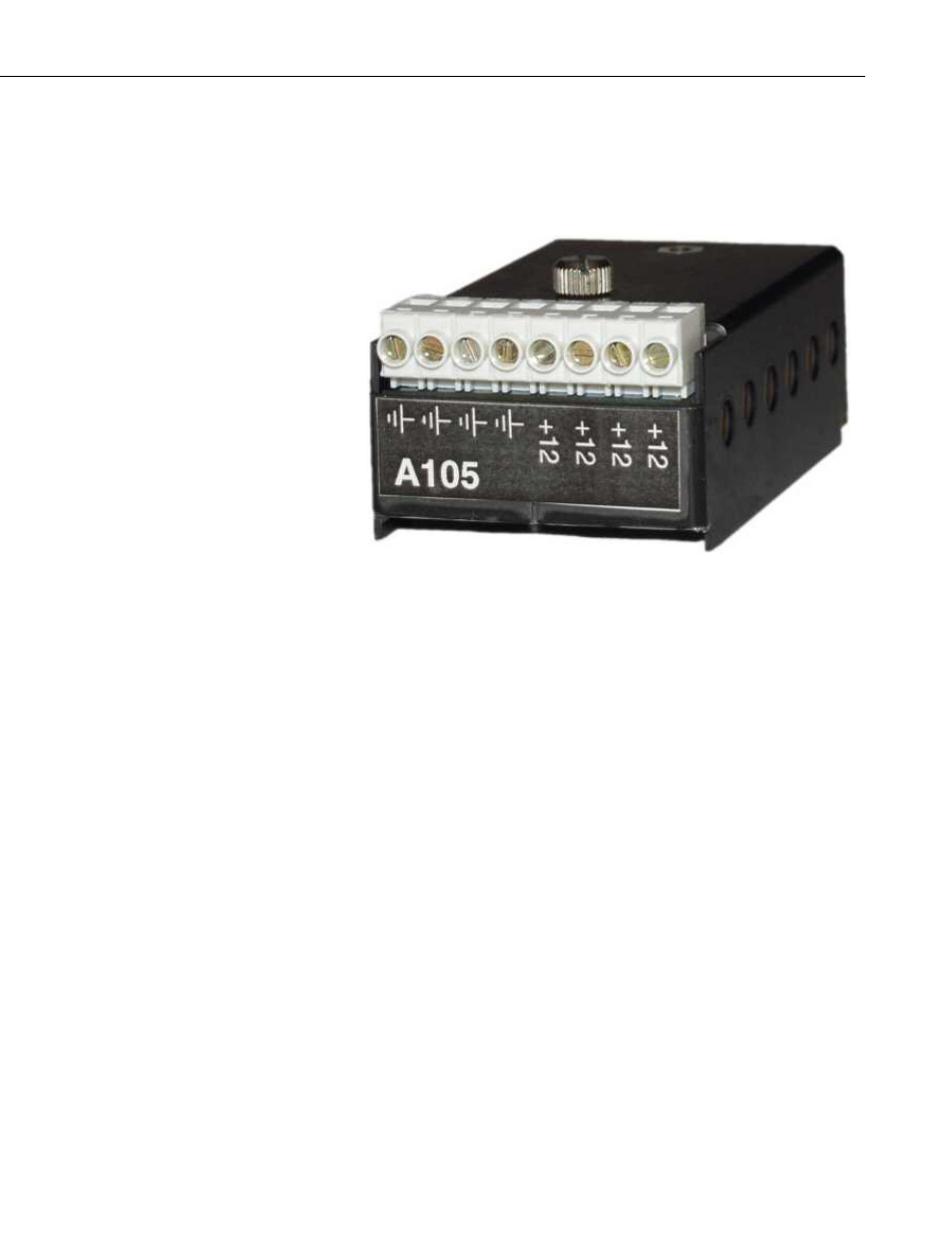

FIGURE 8-1. A105 adapter
9. References
1 – Genesis Application Manual – Genesis NP and NPX Series US-NP-AM-
002, June 2006.
