PS150/CH150 12 V Charging Regulators

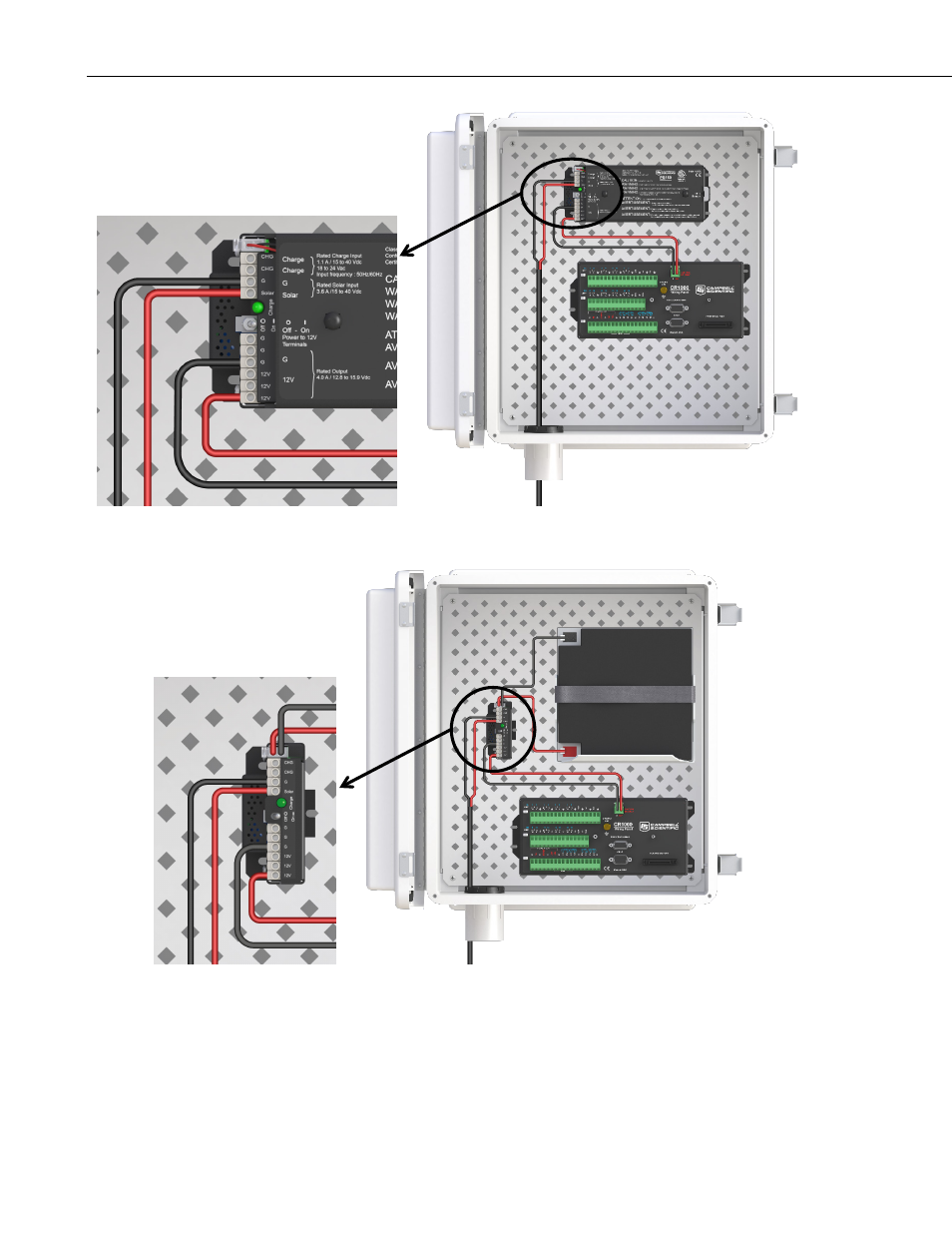

FIGURE 3-2. The PS150 connected to a CR1000 and solar panel

FIGURE 3-3. CH150 connected to BP24 battery pack and CR1000

4
