CC640 Digital Camera
TABLE 5. Camera CS/IO Port to
Logger CS/IO Port Connection
Using #19504
CS/IO connection 9 pin to 9 pin
COMCBL1-L 17855
WH WH
BN BN
RD RD
GN GN
BL BL
GY GY
Camera data cable junction terminals Logger CS/IO port
C1947-----Æ COMCBL1-Æ 19504 contact kit---Æ 17855 (SC110)
Logger Connection
17855
COMCBL1-L
19504
Camera Connection
C1947

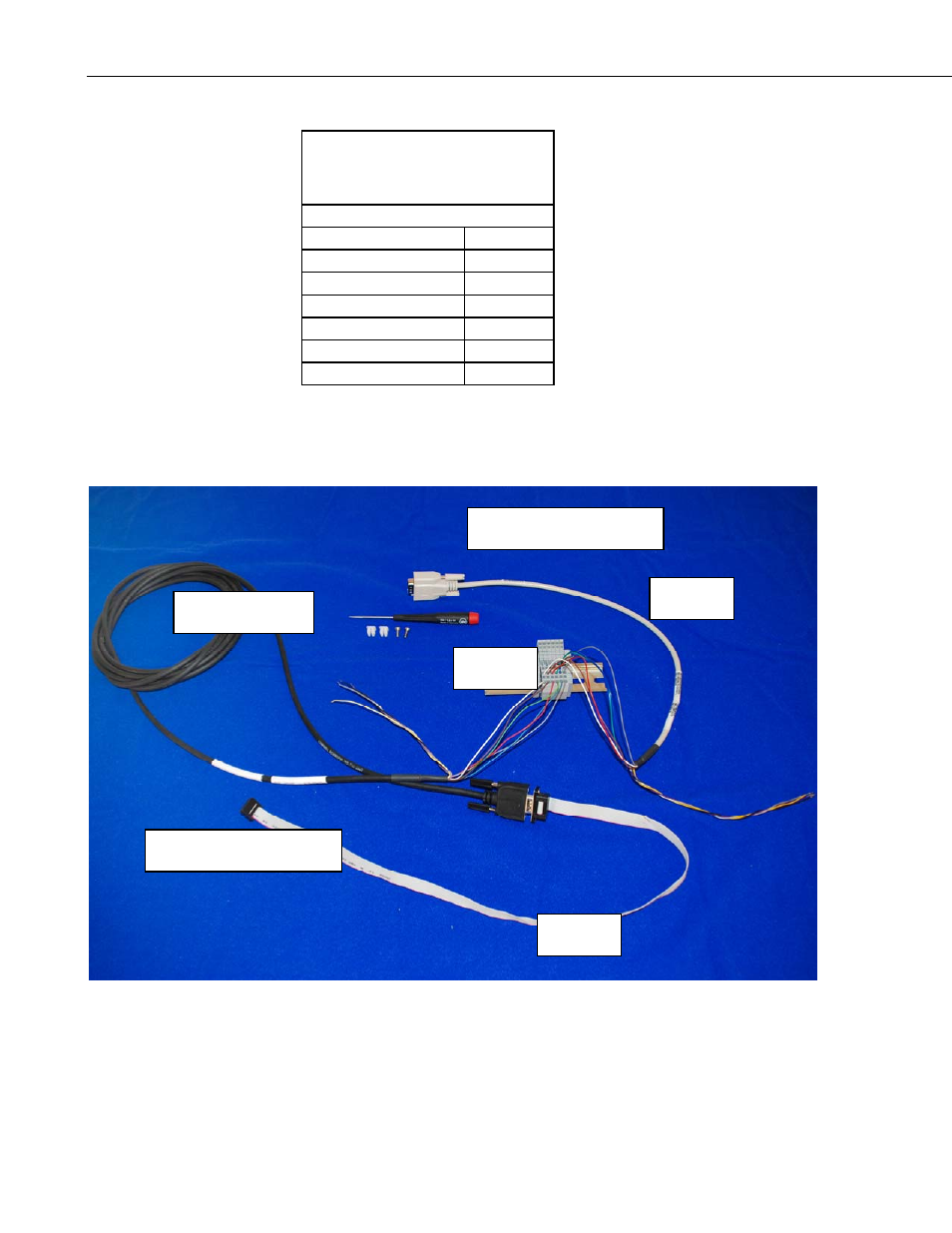

FIGURE 8. Camera CS/IO to Logger CS/IO Connection
14
