CC640 Digital Camera

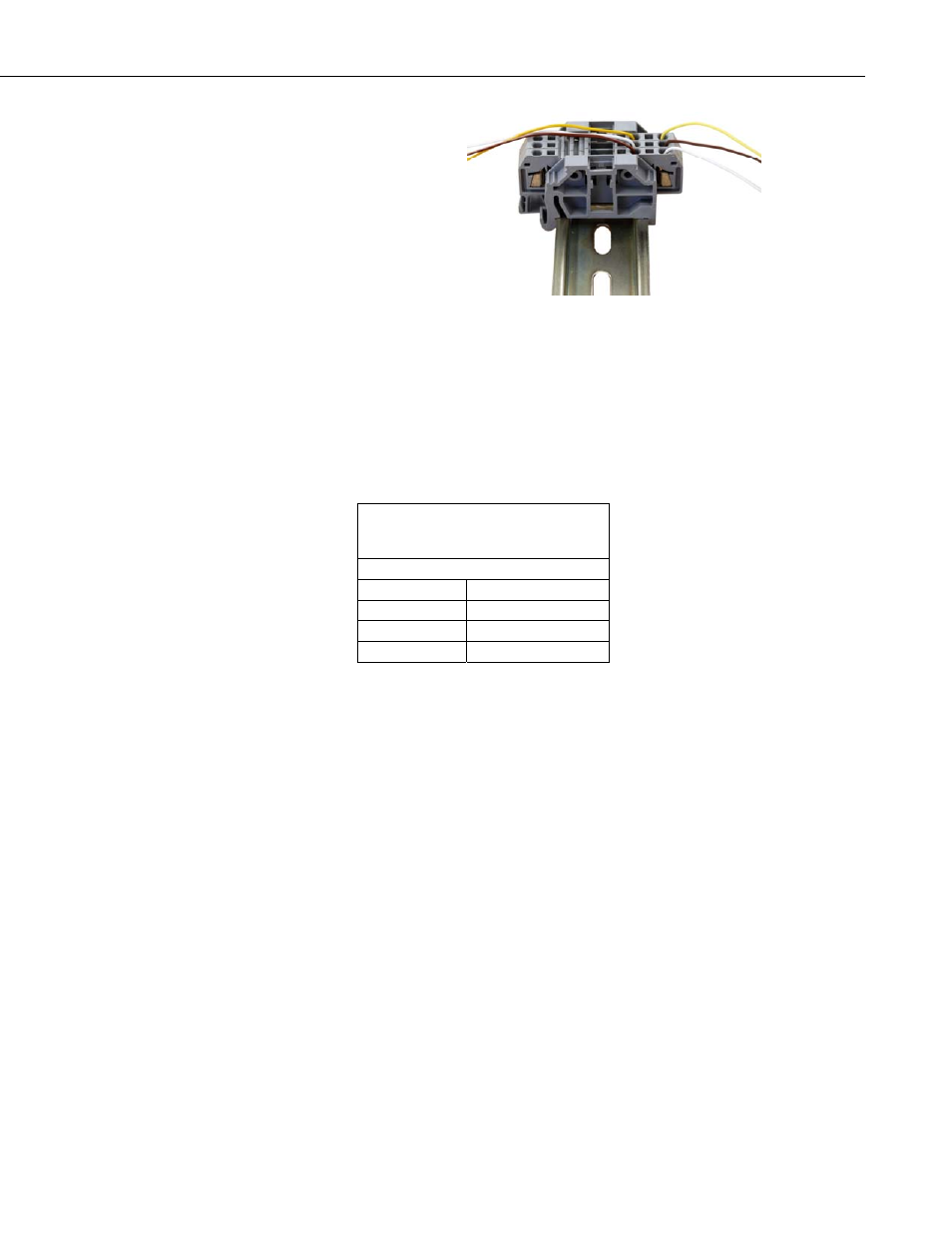

FIGURE 5. Remove the Screwdriver
When the screwdriver is removed, the contact closes holding the wire in place.
4.3 RS-232 Port
The RS-232 port provides an RS-232 communication port for transmitting
image files to a datalogger using the PakBus Protocol, and configuring the
camera.
TABLE 3. Camera to Datalogger
RS-232 port using #19504
RS-232 connection 9 pin to 9 pin
COMCBL1-L 17855
YL YL
WH BN
BN WH
Camera data cable junction terminals Logger Rs-232 port
C1947-----Æ COMCBL1-Æ 19504 contact kit---Æ 17855 (SC110)
11
