Campbell Scientific 255-100 Novalynx Analog Output Evaporation Gauge User Manual
Page 7
255-100 Novalynx Analog Output Evaporation Gauge
255-200 Novalynx Class A Evaporation Pan
Material:
Low carbon stainless steel, type 304, 18 gauge
Construction:
Heliarc welded, 1/2” drain plug NPT female coupling
Size:
10” deep x 47-1/2” diameter (25.4 cm x 120.7 cm)
Volume:
Approximately 77 gallons (291 liters)
Weight:
48 lbs (21.8 kg)
Shipping weight:
59 lbs (26.8 kg)

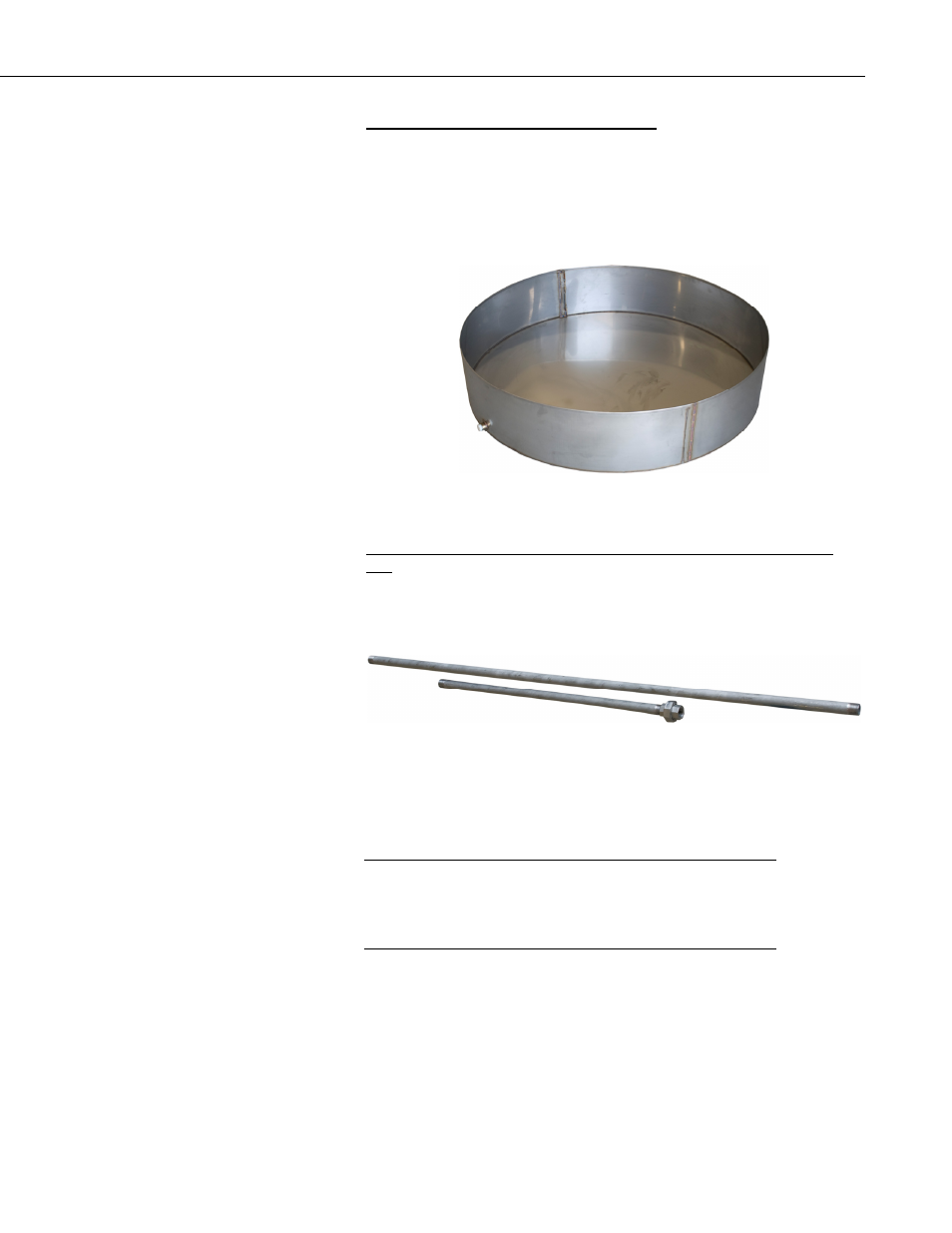

FIGURE 3. 255-200 Novalynx Class A Evaporation Pan
255-100P/F Novalynx Stainless Steel Pipe and Fittings for Evaporation
Pan
Pipe fittings for 255-100, made of stainless steel
Weight:
12 lb (5.4 kg)
Dimensions:
3” x 3” x 60” (7.6 cm x 7.6 cm x 152.4 cm)
FIGURE 4. 255-100P/F Novalynx Stainless Steel Pipe and
Fittings for Evaporation Pan
It is recommended that all international customers purchase this accessory, as
pipe of the right diameter may be difficult to locate in their country.
Instead of using this, you can use 1/2” polybraid (fiber
reinforced) flexible tubing, nylon fittings (1/2” NPT x Hose Bar),
and small stainless steel hose clamps; this equipment is available
from a local hardware store.
NOTE
3
