10164-L Sampler Control Cable for use with Isco and Sigma Autosamplers

3. Wiring

3.1 General Wiring Information

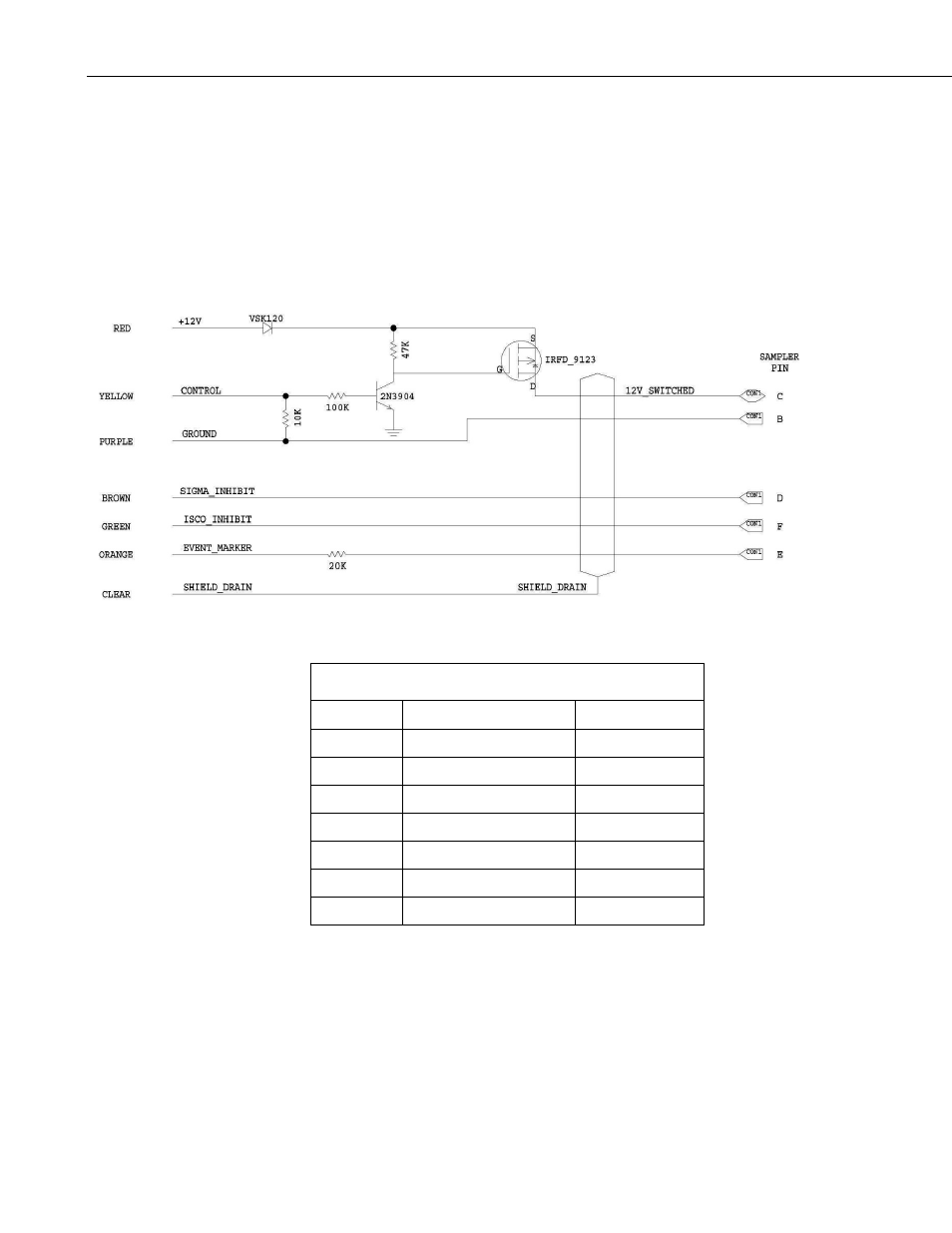

FIGURE 3-1 shows a schematic of the 10164 and TABLE 3-1 shows pin

connector and wire functions.

Sections 3.2 through 3.4 provide information about connecting the wires to a

datalogger. The datalogger wiring depends on the function.

FIGURE 3-1. 10164 Sampler Control Cable Schematic

TABLE 3-1. Technical Details of Cable Design

Wire Color Via

Connector Pin

Brown

Direct

D

Green

Direct

F

Purple

Direct

B

Yellow

Solid State Relay Circuit None (controls C)

Red

Solid State Relay Circuit C

Orange

20 kohm Resistor

E

Clear

Cable Shield

No Connection

2
