Wiring, 1 general wiring information, General wiring information – Campbell Scientific 10164-L Water Sampler Control Cable for use with Isco and Sigma Autosamplers User Manual

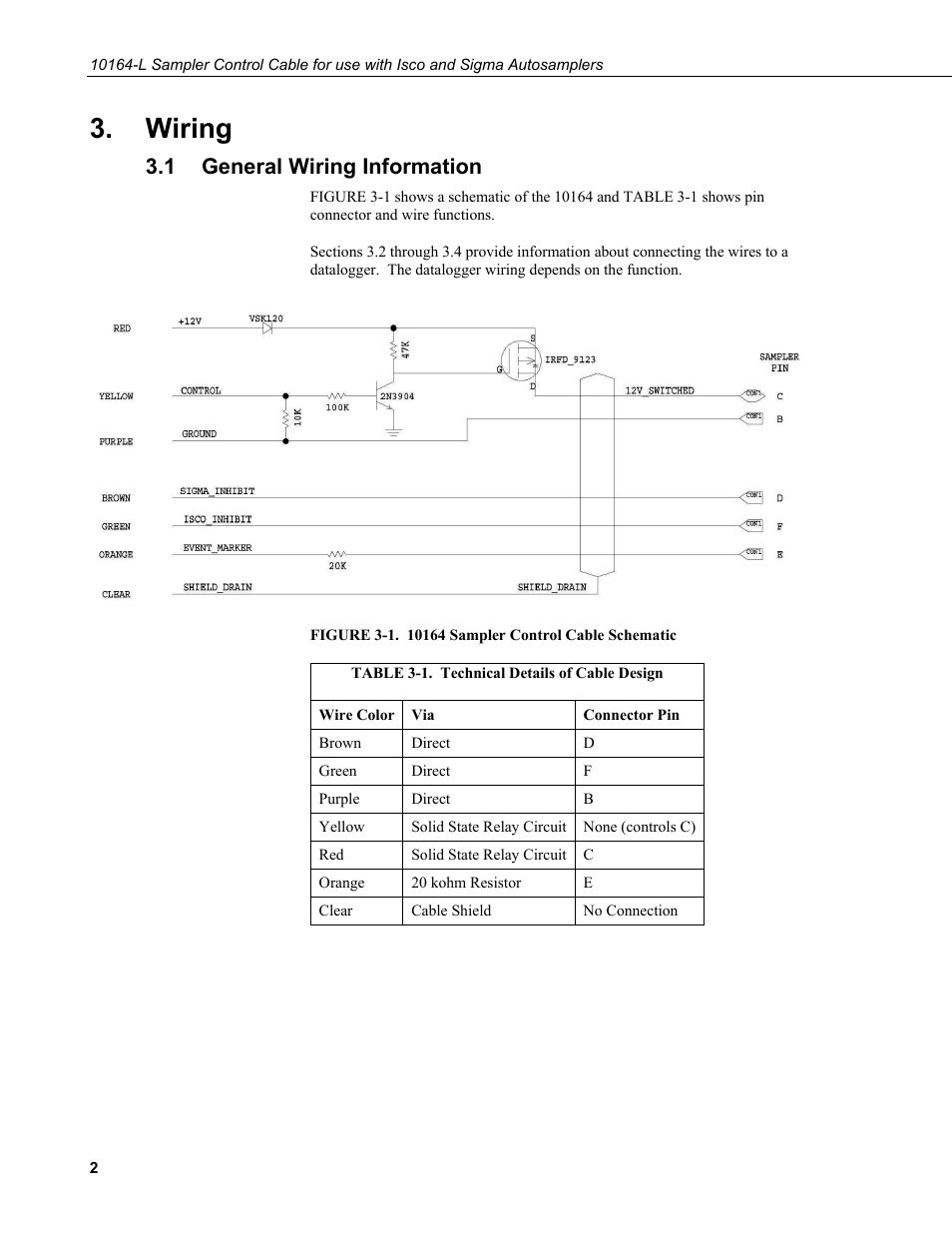

Page 8: 1. 10164 sampler control cable schematic, 1. technical details of cable design
