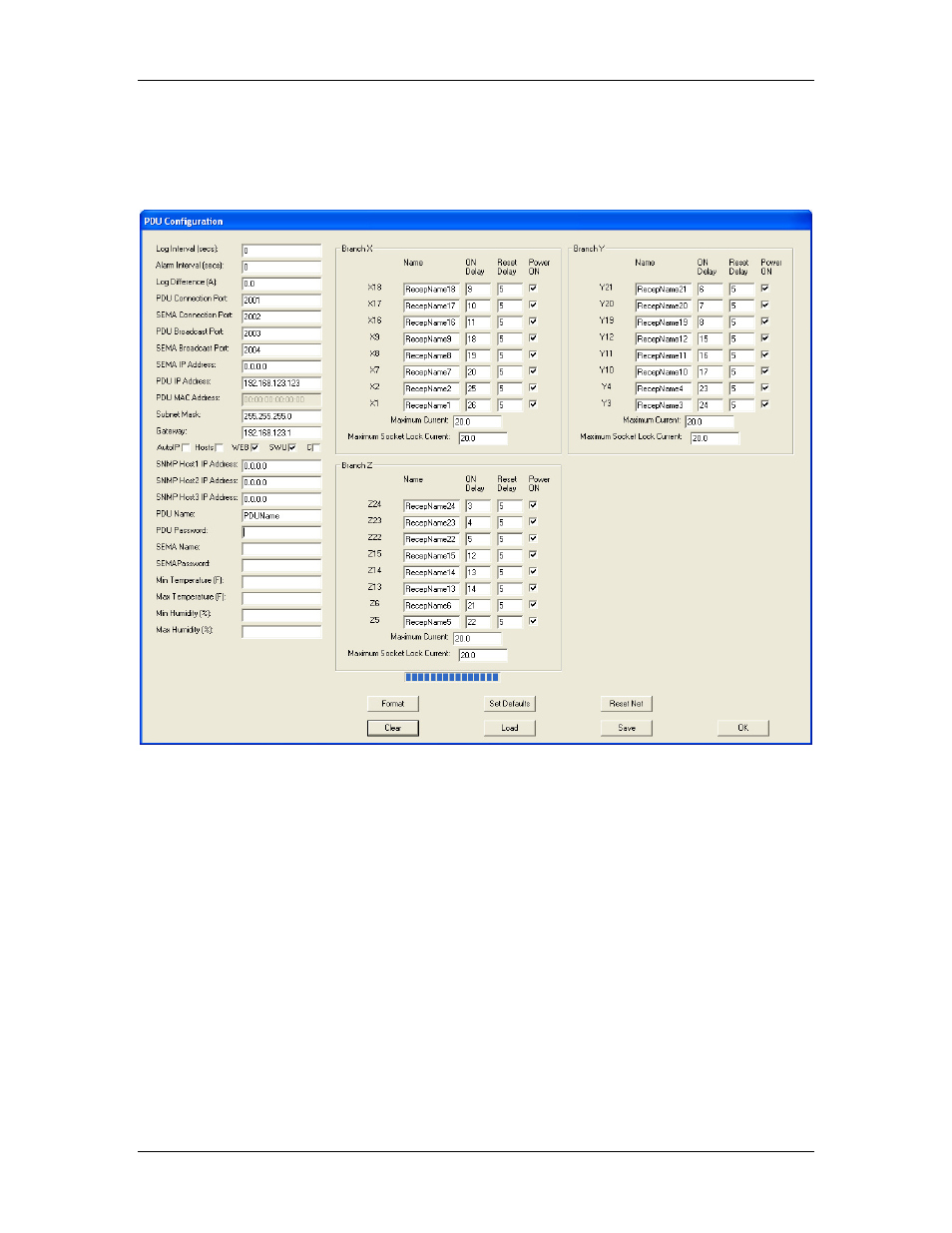

On a Controlled PDU, the PDU Configuration screen will also include an input field for
the name of each receptacle, for the ON delay and Reset Delay of each receptacle, for
Maximum Socket Lock Current, and a check box to turn power on (checked) or off (not
checked) for each switched receptacle.
Note: The example above is from a three-phase Controlled PDU with receptacles
grouped into three phase groups (Branch X, Y, and Z). On a single-phase PDU, the
receptacles would be grouped into one (Branch A) or two circuit segments (Branch A
and B).
A description of each input field is listed on pages 16 through 18.
