Step 4a: The Configure Menu – Configuring The PDU For SEMA Or SNMP

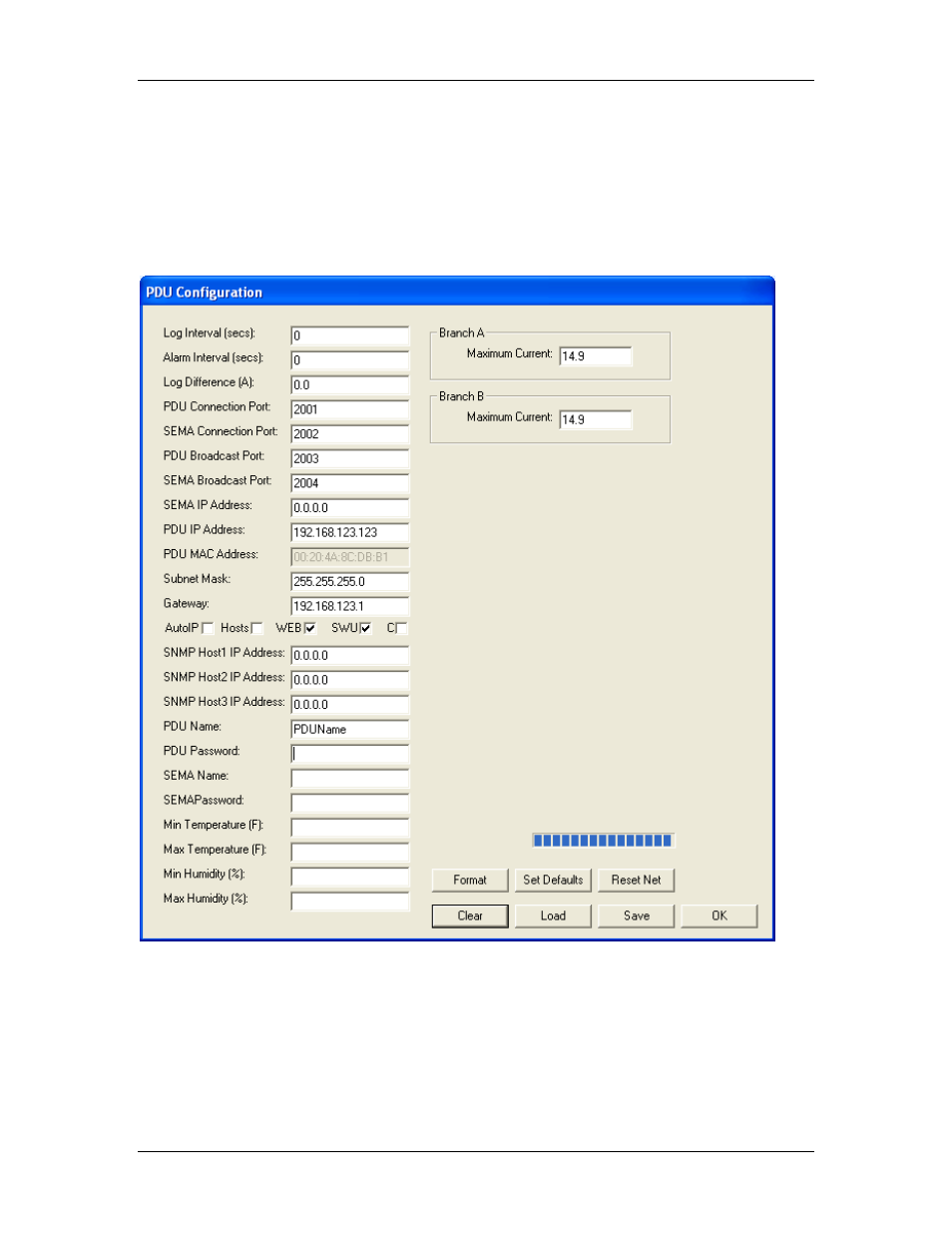

Press the [Configure] button under the Actions section of the main menu to open the
PDU Configuration screen.
On a Monitored PDU, the PDU Configuration screen will display SEMA, IP and SNMP
input fields, maximum/minimum settings for temperature and humidity, and a Maximum
Current setting for each circuit segment or phase group (Branch A and B).
Note: The example above is from a single-phase Monitored PDU with receptacles
grouped into two circuit segments (Branch A and B). On a three-phase PDU, the
receptacles would be grouped into three phase groups (Branch X, Y, and Z) and there
would be three fields to enter Maximum Current.
A description of each input field is listed on pages 16 through 18.
