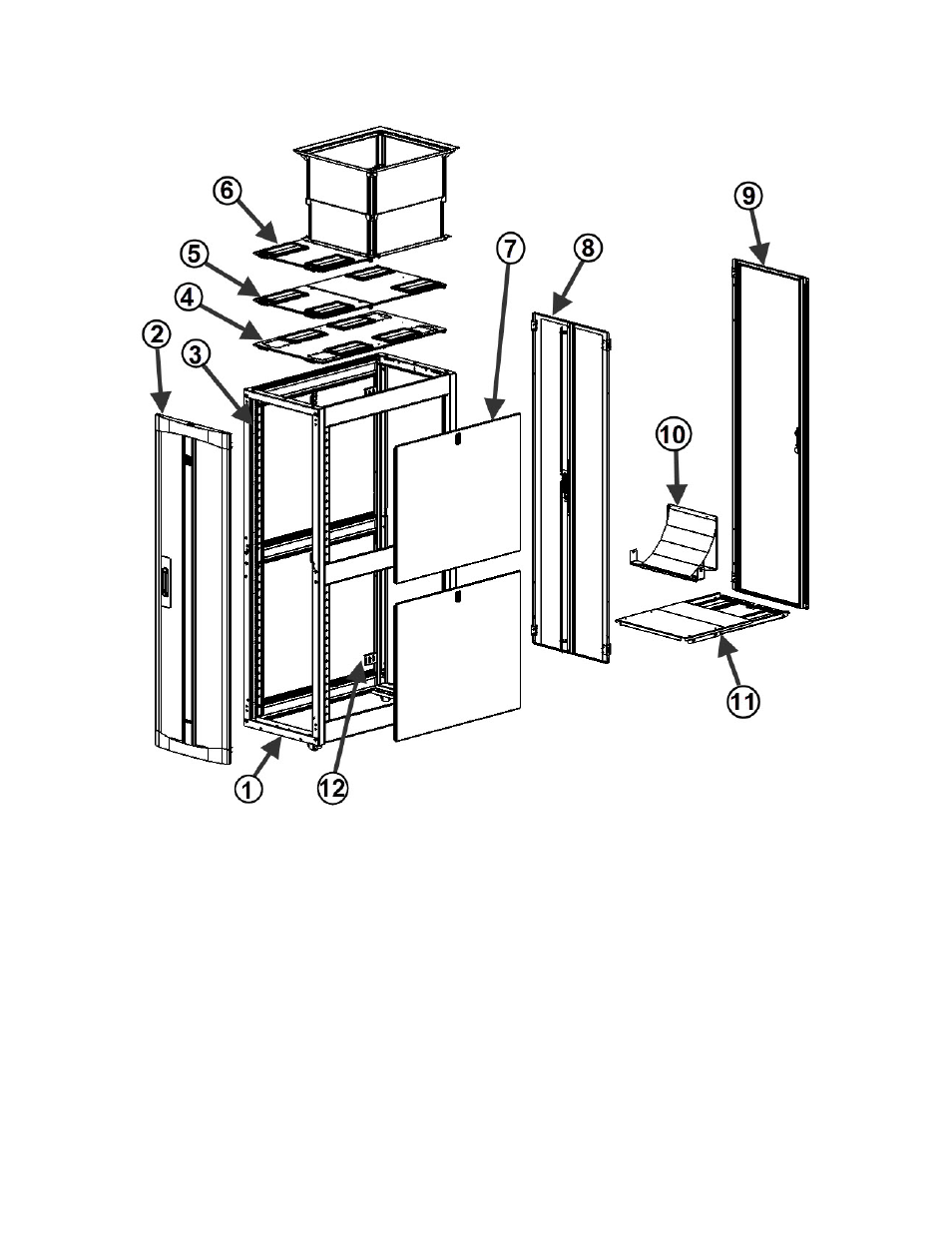

Components
of
the
F-­‐Series
TeraFrame
Gen
3
Cabinet
1.
Frame
(6-­‐Slide
shown,
4-­‐Slide
available)
7.
Side
panel
(6-­‐Slide
Shown,
4-­‐Slide
available)
2.
Front
door
8.
Double
rear
door
3.
Equipment
mounting
rails
9.
Single
solid
rear
door
4.
Standard
top
panel
10.
Air
Director
(included
with
duct)
5.
Two
Piece
top
panel
11.
Bottom
Panel
(included
with
duct)
6.
Vertical
Exhaust
Duct
top
panel
12.
Standard
PDU
bracket
