Configuring the cabinet
The F-‐Series TeraFrame Gen 3 Cabinet can easily be configured for a variety of applications. Not only
can the standard cabinet components be adjusted or removed, but a broad range of accessories can be
installed to create a cabinet solution that meets all the needs of your installation requirements.
Removing and Installing the Front Door
CAUTION: To avoid personal injury and reduce the risk of damaging the door or the
cabinet, one person should support the door while another person retracts the hinge
pins and removes the door from the frame.

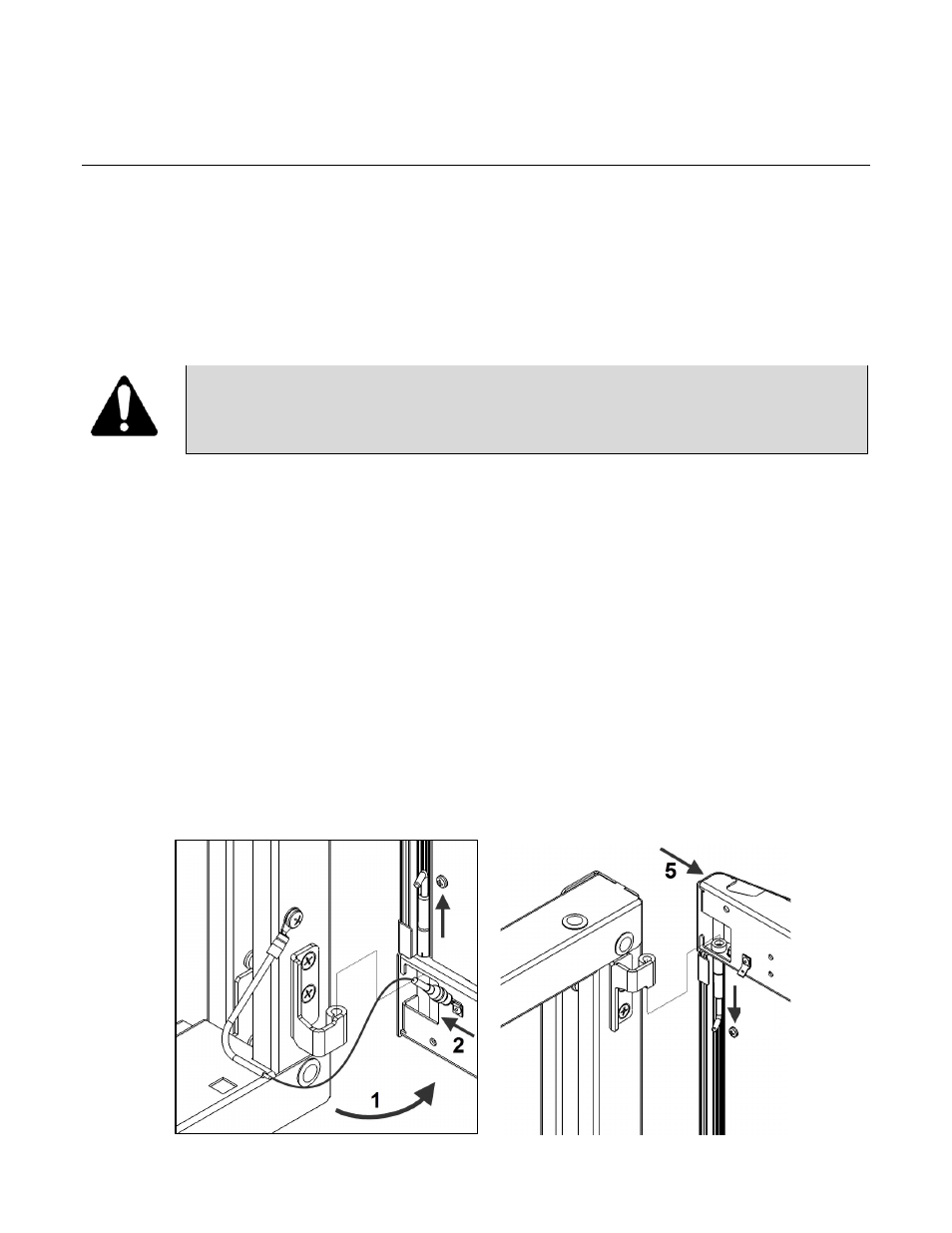

Removing the Front Door:
1. Open the front door to 90 degrees so that it is perpendicular to the cabinet. The door is
perpendicular to the cabinet when it is parallel with the side of the cabinet.
2. Disconnect the ground wire.
3. While supporting the door, retract the hinge pin from the upper hinge. Note: the door, hinge pin
and/or hinge may be damaged if the door is not properly supported while being removed. Hold the
door so that it does not lean.
4. Lift the door off the bottom hinge and move toward the side of the cabinet. Support the door while
lifting and moving the door. The hinge is captive in a pocket on the door. The lift and move action
releases the hinge from the door. Note: you may need to retract the lower hinge pin also.
5. Once the door is free of the hinges, move the door away from the frame.
