Anchor
Bracket
The
mounting
locations
for

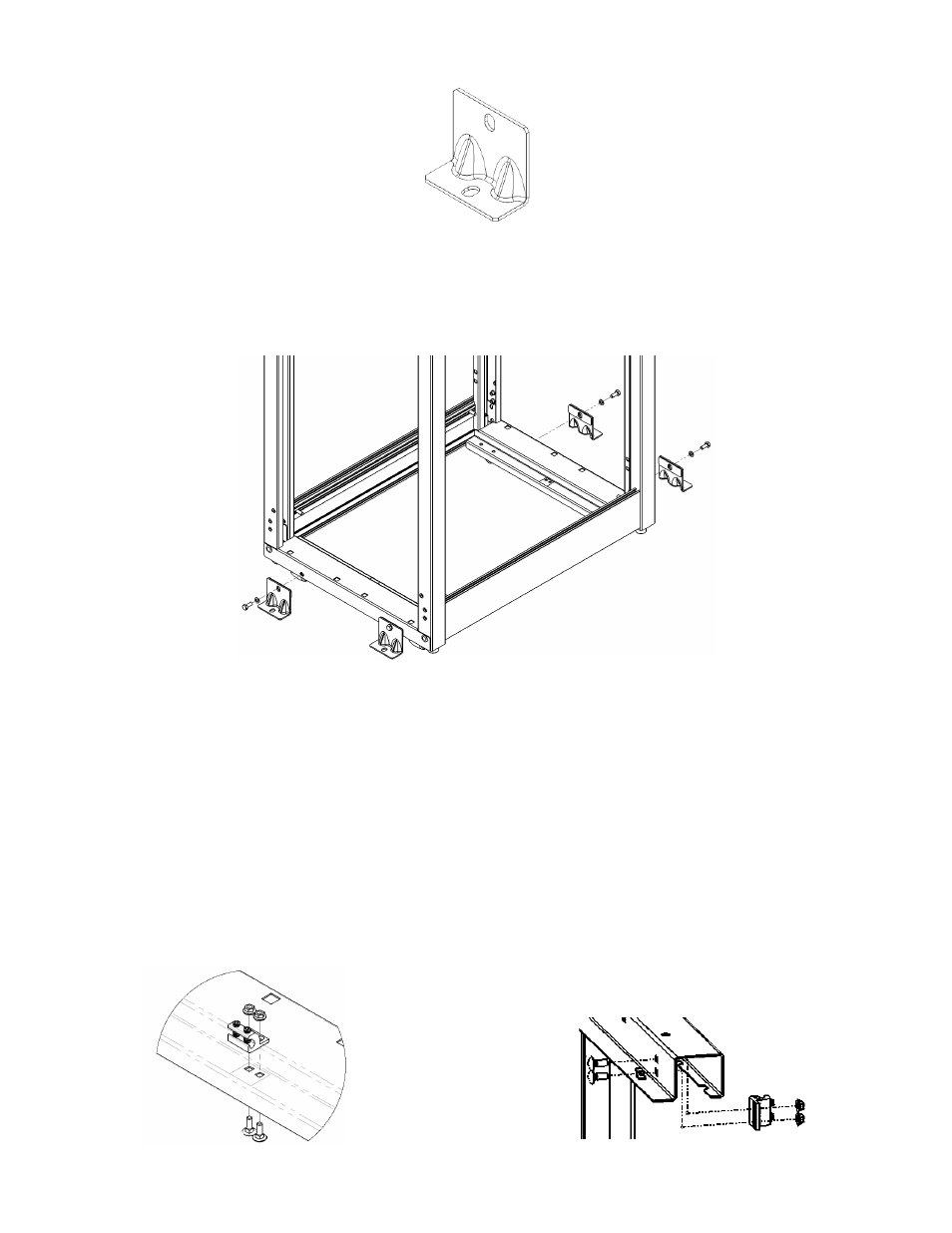

the
anchor
brackets
are
shown
in
the
figure
below.
If
used
as
part
of
an
aisle
containment
solution,
inistall
the
Floor
Seal
Kits
(P/Ns
39208-­‐XXX
and
39209-­‐XXX)
before
attaching
the
anchor
brackets.
Attach
the
cabinet
to
the
floor
with
3/8”
or
M10
hardware
appropriate
for
your
type
of
flooring.
Bonding
the
cabinet
to
the
telecommunications
ground
F-­‐Series
TeraFrame
Gen
3
Cabinets
should
be
bonded
to
the
telecommunications
ground.
The
top
panel,
side
panels,
doors
and
mounting
rails
on
the
TeraFrame
cabinet
are
electrically
bonded
to
the
frame.
A
ground
strap
bonds
the
panels
and
doors
to
the
frame.
In
order
to
bond
the
cabinet
to
the
telecommunications
ground,
use
the
Ground
Terminal
Block
(included)
to
connect
a
bonding
conductor
to
the
telecommunications
ground
or
signal
reference
grid.
Remove
the
mask
sticker
at
desired
grounding
location
and
apply
generous
coating
of
gray
antioxidant.
For
top
location,
remove
hole
plug
and
route
wire
through
frame
top
first.
Secure
grounding
wire
to
the
terminal
block.
Attach
the
block
to
the
cabinet
frame
with
an
8
mm
wrench
using
two
M5
bolts
and
nuts.
