Page 2
CIRCUIT 1
CIRCUIT 2
SWITCH 1
2

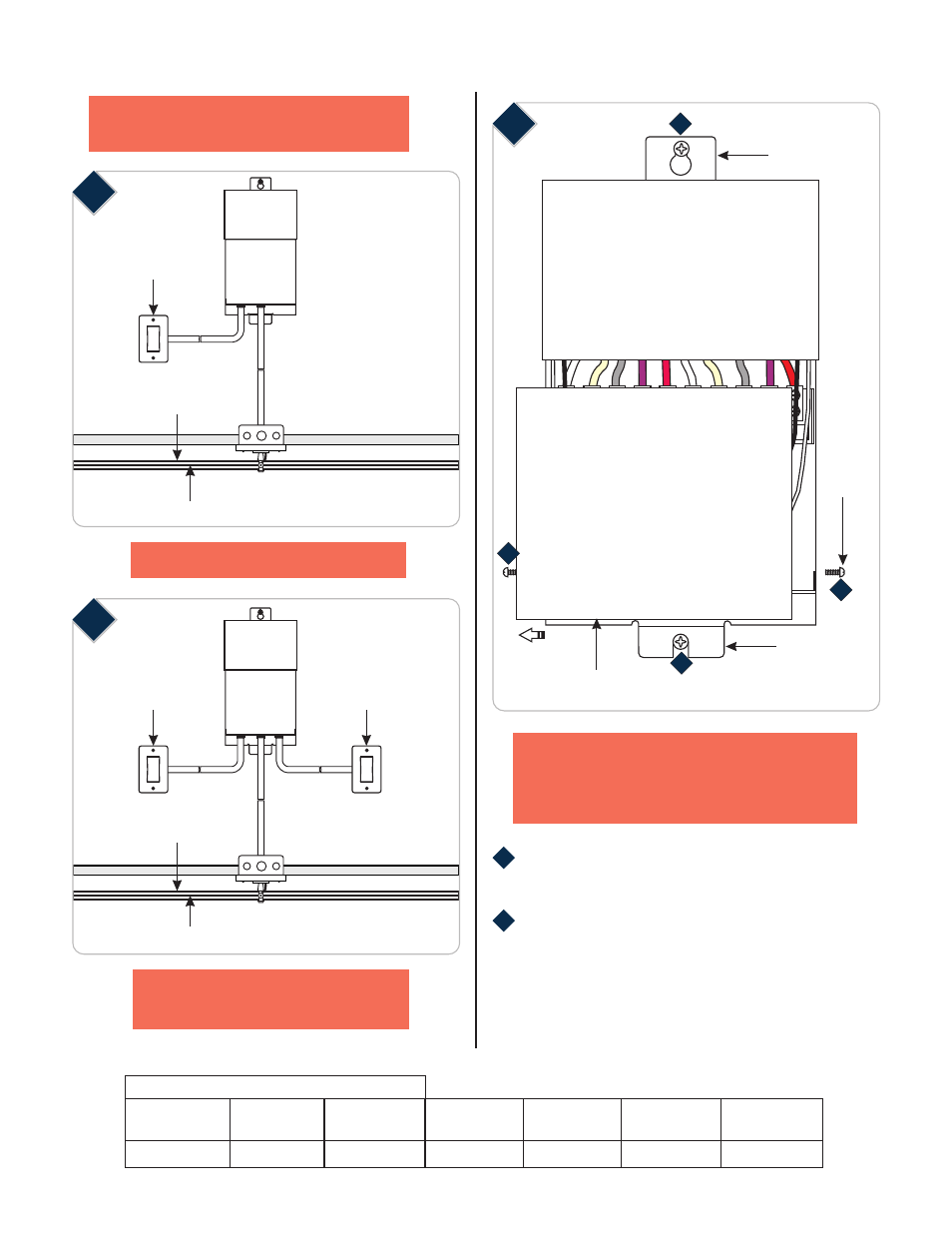

Select the Switching Option
Switch 1 turns on/off both Circuits.
CIRCUIT 1
CIRCUIT 2
SWITCH 1
SWITCH 2
NOTE:
Select one out of two possible switching
options that fits the design.
1A
Switch 1 turns on/off Circuit 1 and
Switch 2 turns on/off Circuit 2.
1B
Install the Remote Transformer
TRANSFORMER
BRACKET
2A
TRANSFORMER COVER
COMX X1
X2
X3
X4 COMY Y1
Y2
Y3
Y4
PHILLIPS
SCREW
2
2
1
TRANSFORMER
BRACKET
1
NOTE:
In order to use small gage wires from the
transformer to the electrical box, it is recommended to
install the remote transformer near (if possible) the
electrical box. See "Low Voltage Wire Size Table"
below.
Mount the transformer to a solid surface using the
keyhole slot on the mounting bracket (hardware not
included).
Remove the transformer cover by loosening the two
Phillips screws on the sides of the transformer.
1
2
TRANSFORMER
WATTAGE
WIRE SIZE
FOR 5 FT
WIRE SIZE
FOR 6-15 FT
WIRE SIZE
FOR 16-20 FT
WIRE SIZE
FOR 21-40 FT
WIRE SIZE
FOR 40-60 FT
WIRE SIZE
FOR 61-90 FT
LOW VOLTAGE WIRE SIZE TABLE
300 WATT
#6 GA
#4 GA
#1 GA
#1/0 GA
#3/0 GA
#10 GA
