LBL Lighting 2-Circuit MO Surf Mag Xfmr 500w 120v/12v - Manual (Page 3)

POWER FEED
HOUSING
METAL TUBE
3/4"
OUTER WRAPPED WIRE
INNER WIRE
3

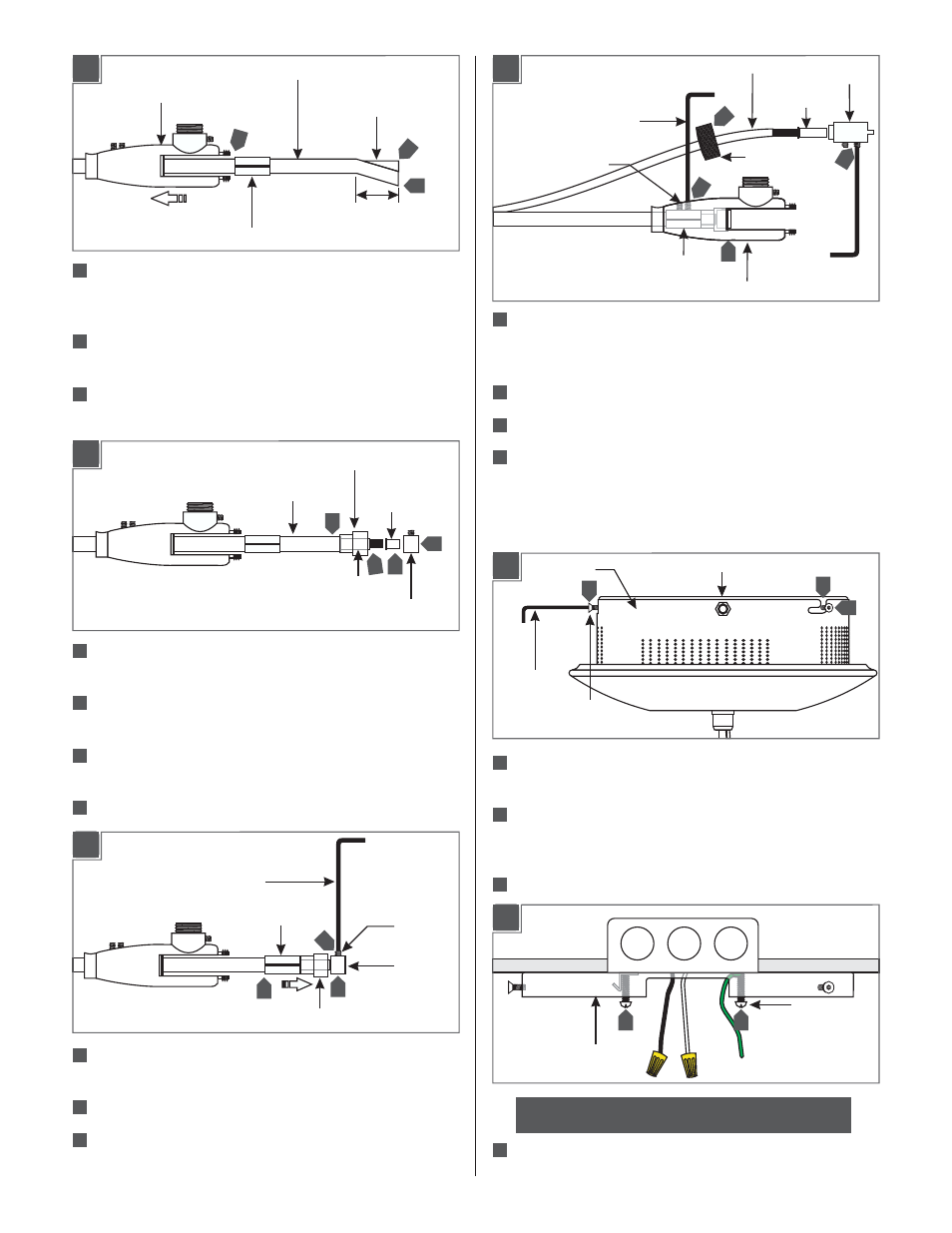

Feed the power feed cord through power feed housing and the
metal tube (included in the package) respectively. Slide the
power feed housing and the metal tube down the cord.
From end of the power feed cord, using a sharp cutter, cut a
slot for 3/4" on the outer wrapped wire.
Unwrap the cut portion of the outer wrapped wire and cut
around it evenly to remove it from the inner wire.
INNER WIRE
CONTACT POST
INSULATED BUSHING
WIRE CAP
Strip exactly 1/4" of the inner wire. If the wire becomes frayed,
gently twist it between the thumb and forefinger.
Slide the insulated bushing on to the cord against the outer
wrapped wire.
Slide the new wire cap (included in the package) completely
onto the stripped portion of the inner wire.
Place the contact post completely onto the wire cap.
OUTER WRAPPED WIRE
INSULATED BUSHING
1.5MM ALLEN WRENCH
M3 SET
SCREW
Tighten the M3 set screw on the contact post with the 1.5MM
Allen wrench.
Slide the insulated bushing completely onto the contact post.
Pull the outer wrapped and metal bushing against the insulated
bushing.
METAL TUBE
CONTACT
POST
Install the Transformer
Loosen the three #8-32 flat head screws (Do Not Remove)
with the provided 3/32 Allen wrench.
Rotate the backplate counter clockwise so that the #8-32 flat
head screws are lined up with vertical cut out portion of the
"L" slots.
Remove the backplate from the housing.
Mount the backplate to the electrical box with the provided
two #8-32 screws.
CAUTION: Turn the power to electrical box off!
M3 SET SCREW
POWER FEED HOUSING
1.5MM ALLEN WRENCH
METAL TUBE
MIDDLE
CONTACT
Slide the power feed housing completely against the insulated
bushing. Make sure that the set screws are not inline with the
metal tube slot.
Tighten the two M3 set screws with the 1.5MM Allen wrench.
Slide the knurled cap onto the center wire.
Strip 1/2" of the center wire and feed it into the long wire cap
and then into the middle contact.Tighten the two M3 set
screws with the 1.5 MM Allen wrench.
CENTER WIRE
KNURLED CAP
LONG
WIRE CAP
#8-32 SCREW
BACKPLATE
#8-32 FLAT
HEAD SCREW
3/32 ALLEN
WRENCH
HOUSING
BACKPLATE
1A 1F
1A 1G
1A 1H
13
14
15
16
17
18
19
20
21
22
1A 1I
1A 2A
1A 2B
23
24
25
1
2
3
4
26
13
26
24
17
2
1
14
15
16 18
19
1
25
23
22
20
22
4 4
