1b 2c 1a 2d – LBL Lighting 2-Circuit MO Direct Feed Canopy Dual Feed User Manual
Page 3
3

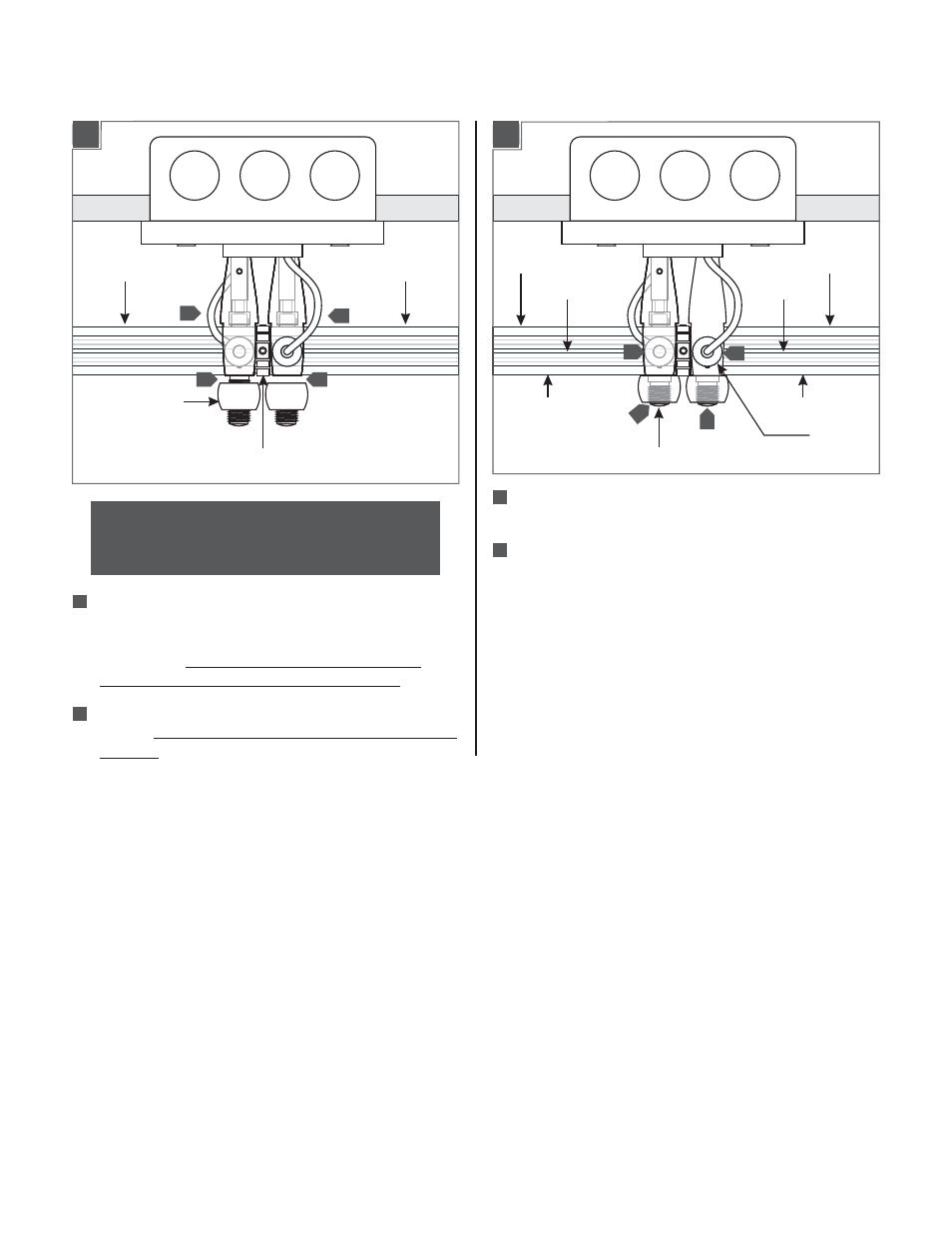

Place the combined 2-Circuit Monorail sections into the
standoffs and power feed housings so that the straight isolating
connectors section is located in the middle of the two power
feed housings. Make sure that the 2-Circuit Monorail
sections are electrically isolated from each other.
Screw the power feed caps completely to the power feed
housings. Make sure that the power feed caps are not cross
threaded.
NOTE:
It is recommended that two people install the
2-Circuit Monorail sections to the standoff and power feed
housings.
2-CIRCUIT
MONORAIL
2-CIRCUIT
MONORAIL
STRAIGHT ISOLATING CONNECTOR
POWER FEED CAP
SCREW
KNURLED
CAP
Tighten the screw on the power feed caps for proper power
connection.
Tighten the knurled cap on power feed housings for proper
power connection.
HOT A1
HOT B1
COM 1
HOT A2
HOT B2
COM 2
1B
2C
1A
2D
