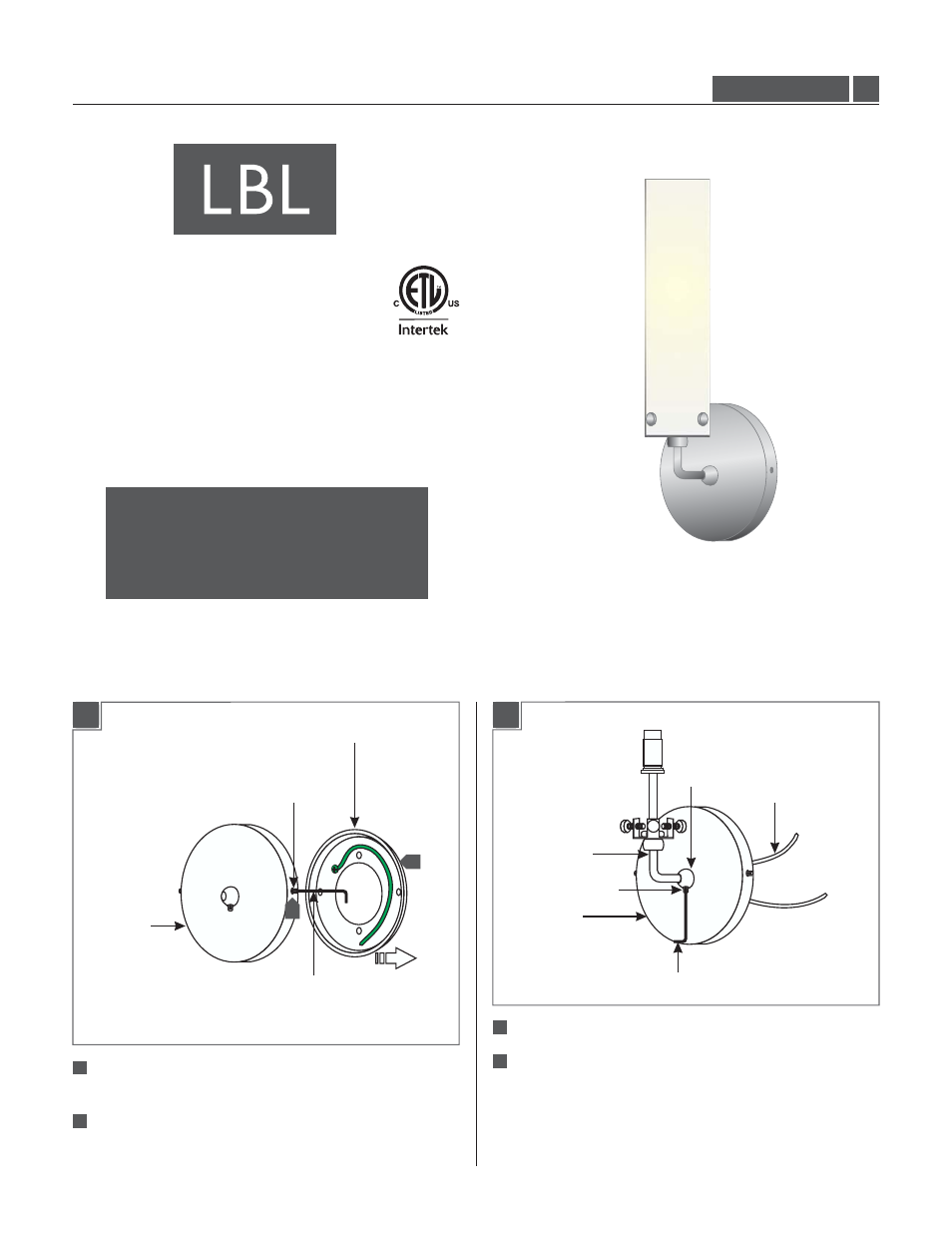

Installation Instructions for

Top Wall II

1.2

HW240_1B35

980TOPIIW

G

P

I

:

ENERAL RODUCT NFORMATION

This product can mount to either a 4" square electrical box with

round plaster ring or an octagon electrical box.

This product is suitable for damp locations.

This product can be dimmed with a standard incandescent dimmer.

Install the Fixture

Loosen

the two M3 set screws on side of

(Do Not Remove)

the canopy with the 1.5MM Allen wrench provided.

Remove the backplate.

M3 SET SCREW

1.5MM ALLEN WRENCH

BACKPLATE

CANOPY

CANOPY

SOCKET
ASSEMBLY ROD

1.5MM ALLEN WRENCH

Feed the socket assembly wires through the bushing.

Push the socket assembly rod completely into the bushing.

Level the socket assembly vertically and tighten the M3 set

screw with the 1.5 MM Allen wrench to hold the socket

assembly in place.

BUSHING

M3 SET SCREW

WIRES

CAUTION - RISK OF FIRE

This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.

Use minimum 90°c supply conductors.

Wall

1

2

1

2

3

4
