LBL Lighting Scarlett SD User Manual
Scarlett suspension (led), Shorten the power cord, Assemble the fixture

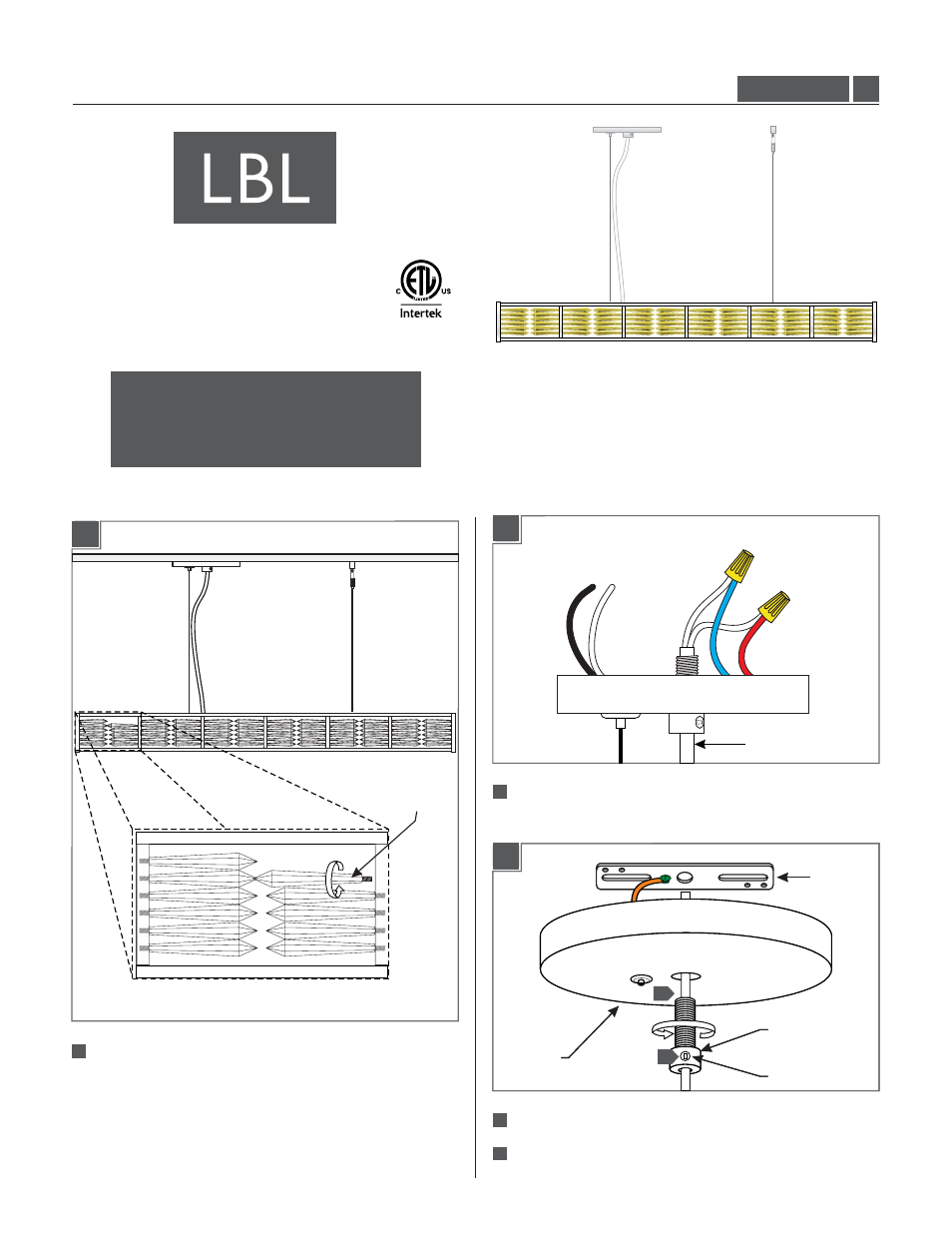

Installation Instructions for
Scarlett Suspension (LED)
1.0
980SCARSD
CAUTION - RISK OF FIRE
This product requires installation by a qualified
electrician. Before installing be sure to read all
instructions and TURN THE POWER TO THE
ELECTRICAL BOX OFF.
Suspension
SU755_LED
G
P
I
:
ENERAL
RODUCT NFORMATION
This product is suitable for damp locations.
Shorten the Power Cord
2A
Take note of the wire connections and remove the wire nuts
to disconnect the power cord wires from the driver wires.
1
POWER CORD
SET SCREW
2B
Loosen
the set screw on the strain relief.
(Do Not Remove)
Remove the crossbar from the canopy by completely
unscrewing the strain relief.
2
STRAIN RELIEF
CROSSBAR
CANOPY
3
2
3
SET SCREW
2B
2
STRAIN RELIEF
CROSSBAR
CANOPY
3
2
3
1
Assemble the Fixture
1A
Install the facets by screwing them in completely.
7
1
FACET
